Nvidia Jetson AGX Orin Series User Manual

HDMI Tuning Guide
PRELIMINARY INFORMATION
Jetson AGX Orin Series Tuning and Compliance Guide DA-11040-001_v0.7 | 33

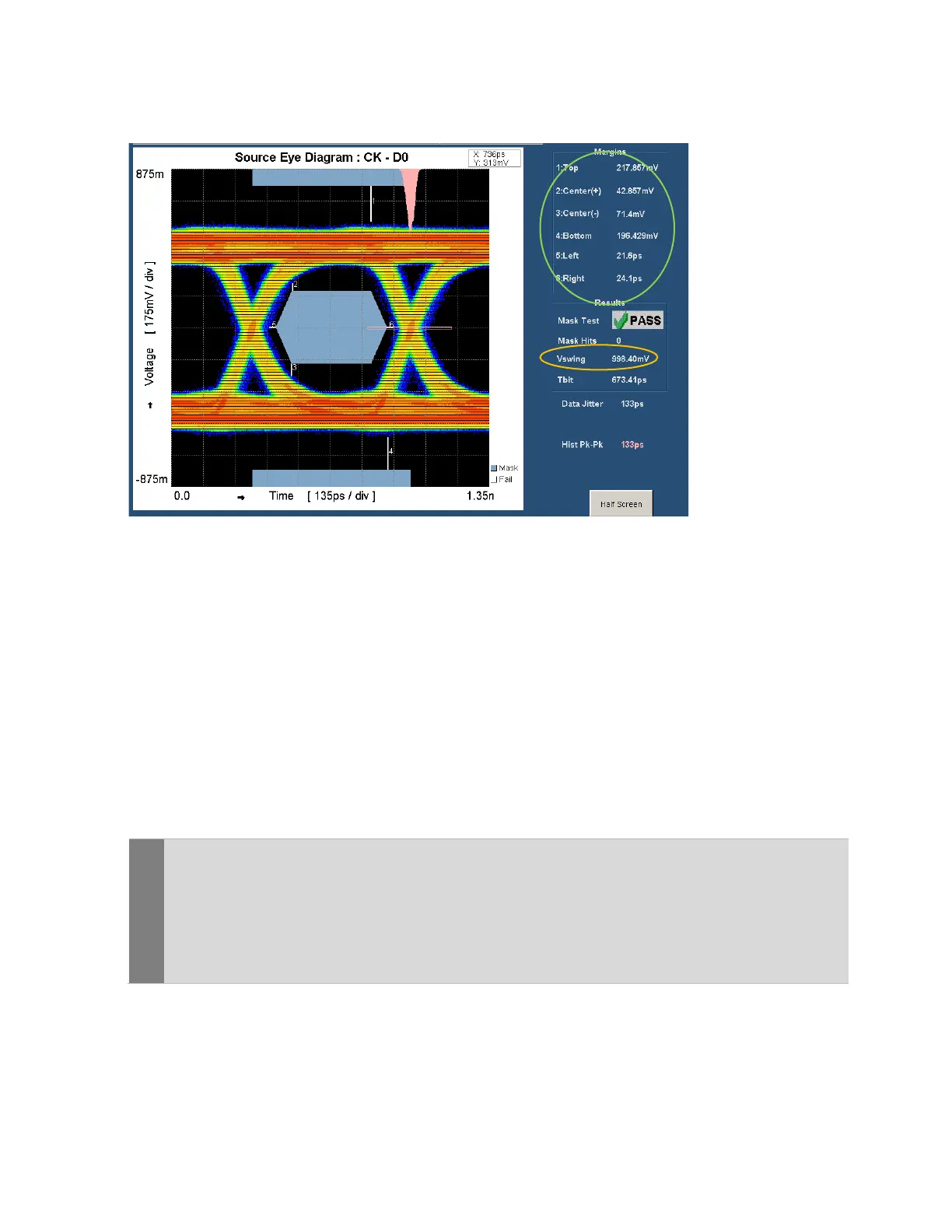

Figure 10. Voltage Swing and Margin Results
Objectives
While there is no margin specification, a good rule of thumb is to provide:
 At least 40 mV of margin above and below the eye mask
 Voltage swing of around 1000 mV
 Find settings for:
• 480p
• 720p
• 1080p
• 2160p/30
• 2160p/60
!
Tips:
• Lower drive strength, I/O peak current, and pre-emphasis settings will lower the power
consumption.
• The stronger the termination, more current is needed and therefore a higher power
consumption.
• Fast rising and falling edges will contribute to increased EMI.

Nvidia Jetson AGX Orin Series Specifications

General

Memory	32GB 256-bit LPDDR5
Storage	64GB eMMC 5.1
Networking	10/100/1000BASE-T Ethernet
Dimensions	100 mm x 87 mm
GPU	NVIDIA Ampere architecture with 64 Tensor Cores
CPU	12-core Arm Cortex-A78AE v8.2 64-bit CPU
AI Performance	275 TOPS
Power	15W to 60W
Video Encode	2x 4Kp60 | 8x 1080p60 | 16x 1080p30 (H.265/H.264)
USB	2x USB 2.0
PCIe	PCIe Gen 4
Operating System Support	Ubuntu
