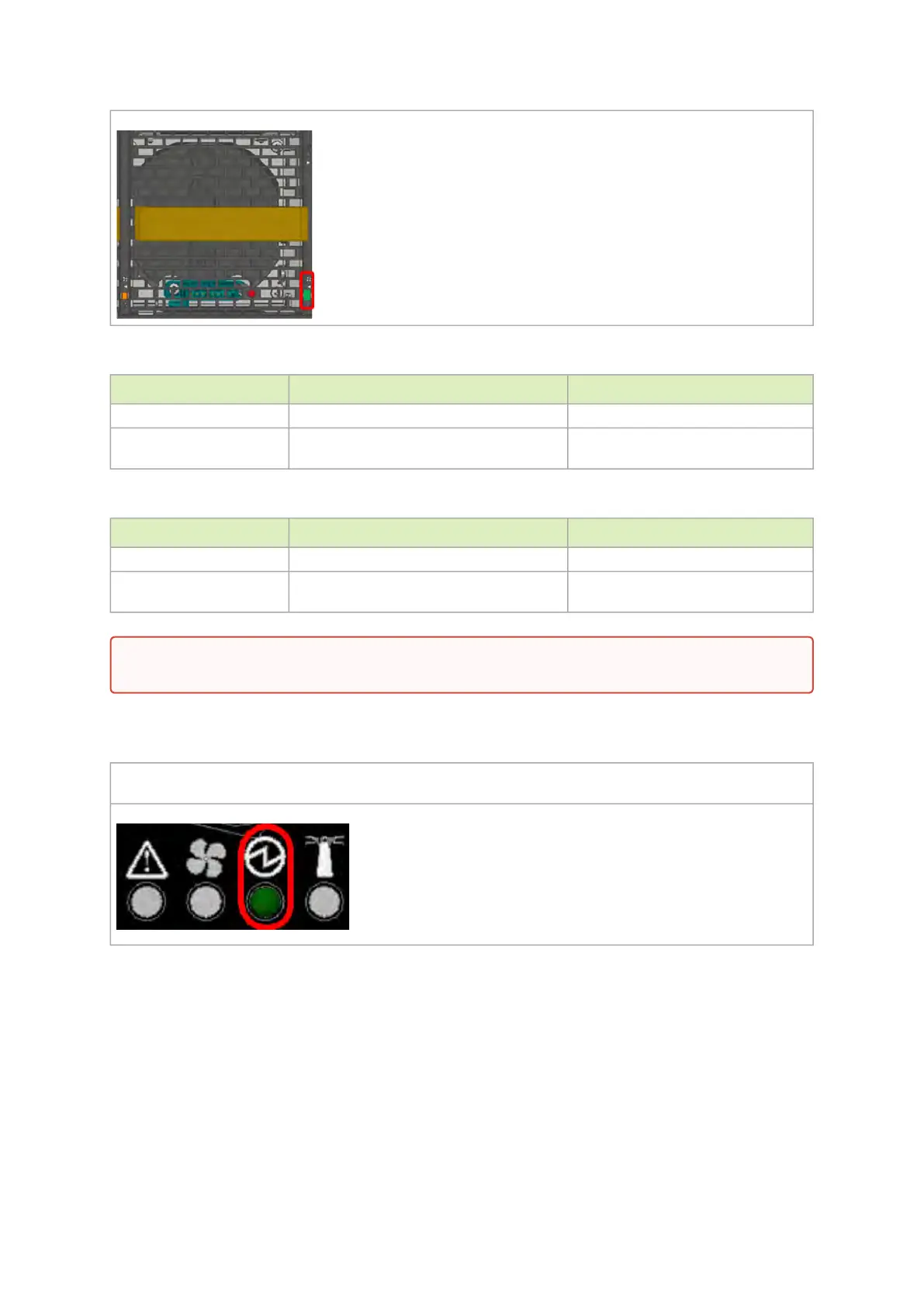

Rear Panel LED:
Fan Status Front LED Assignments
LED Behavior Description Action Required
Solid Green All fans are up and running. N/A
Solid Amber Error, one or more fans are not operating
properly.
The faulty FRUs should be replaced.
Fan Status Rear LED Assignments (One LED per Fan)
LED Behavior Description Action Required
Solid Green A specific fan unit is operating. N/A
Solid Amber A specific fan unit is missing or not
operating properly.
The fan unit should be replaced.
Power Supply Status LEDs
The LEDs in the red ovals show the power supply status.
*The figures are provided for Illustration purposes only. The design may slightly vary in different systems.
Front Panel LED:
Risk of Electric Shock! Do not insert tools or body parts into the fan module cavity.
