MPC5746R Hardware Design Guide, Rev. 1
Debug Options available
NXP Semiconductors28
7 Debug Options available
The MPC5746R production device (PD) supports a standard 14-pin JTAG connector. A development
solution is provided by the 292BGA emulation device (ED). The ED supports a high-speed serial Nexus
trace port that utilizes a Xilinx Aurora interface as the transport mechanism. The ED is mounted to a Trace
Adapter that allows the customer to install it on production hardware for development support. This ED
solution may be ordered through your NXP representative.
NOTE
It is possible that “keep-out” areas may be required by some debug tools.
Consult the preferred debug tool vendor to determine any area that must
remain clear around the debug connector. Also note that the ED solution
may require a small keep out area on the customer PCB to accommodate the
adapter and device. Refer to the drawings provided with the MPC5746R ED
system.
7.1 MPC5746R JTAG connector

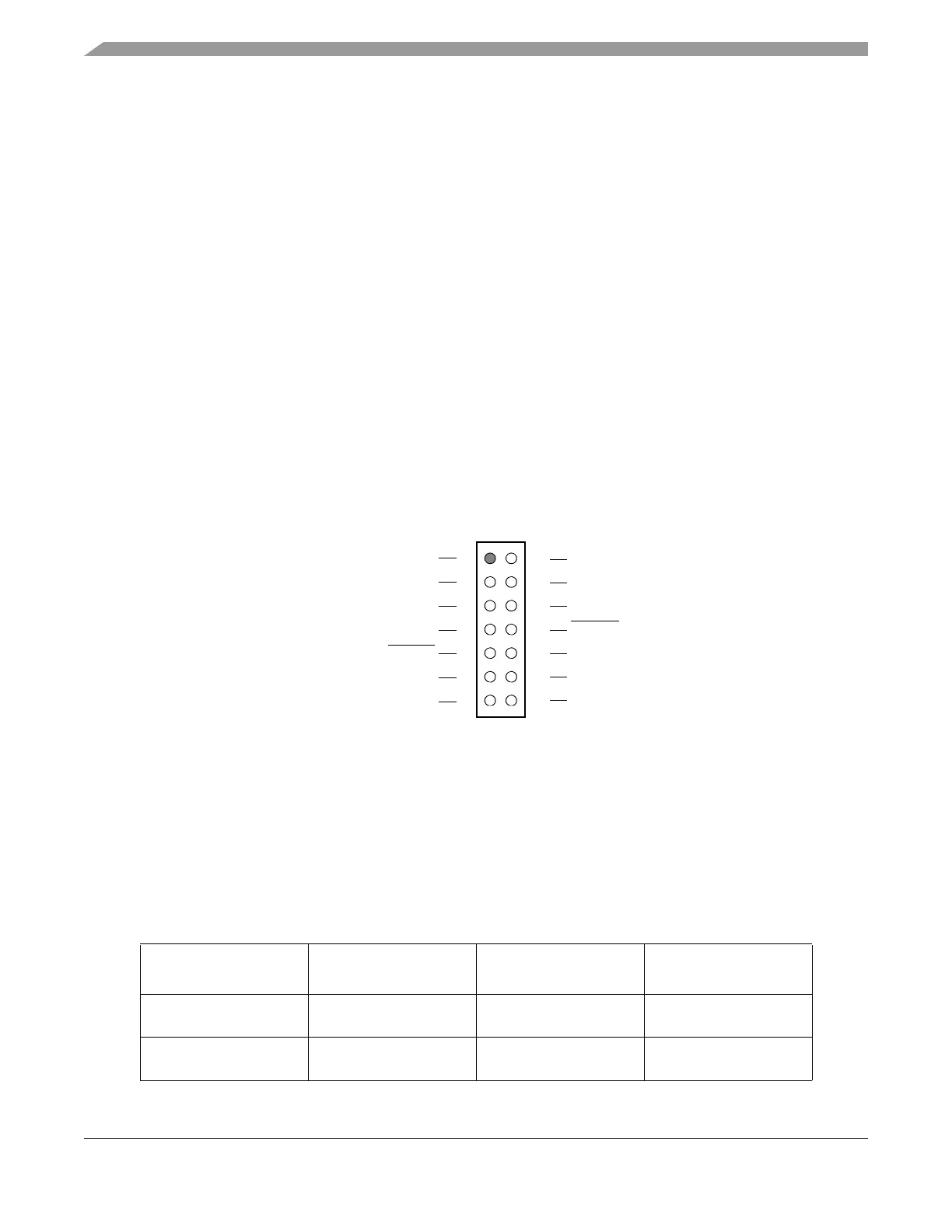

Figure 16 shows the pin-out of the recommended JTAG connector to support MPC5746R device. The
recommended connector for the target system is Tyco part number 2514-6002UB.
Figure 16. JTAG Connections
7.2 MPC5746R high-speed Nexus serial trace connector
For high speed Nexus Aurora trace applications, the Samtec™ ERF8 Series connector is recommended in
the IEEE-ISTO 5001™-2012 standard. For the MPC57xx family, the 17 position (34 pins) connector is
recommended. The part number of the Samtec connectors are shown in the following table.
Table 14. Recommended high-speed serial trace connector part numbers
Connector
Part number
(Samtec)
Style Description
HS34 ASP-137973-01
Samtec ERF8 Series, 17
position by 2 row
Vertical mount for MCU
module
HS34 ASP-177706-02
Samtec ERF8 Series, 17
position by 2 row
Right Angle mount for
MCU
1
2
3
4
5
6
7
8
9
10
11
12
13
14
TDI
TDO
TCK
EVTI0
RESET
VDD_HV_IO_JTAG
EVTO0
GND
GND
GND
PORST
TMS
GND
JCOMP
NOTE:
When using the Emulation Device, VDD_HV_IO_JTAG
should be supplied by the VDD_HV_BD supply.
