Selecting Accessories

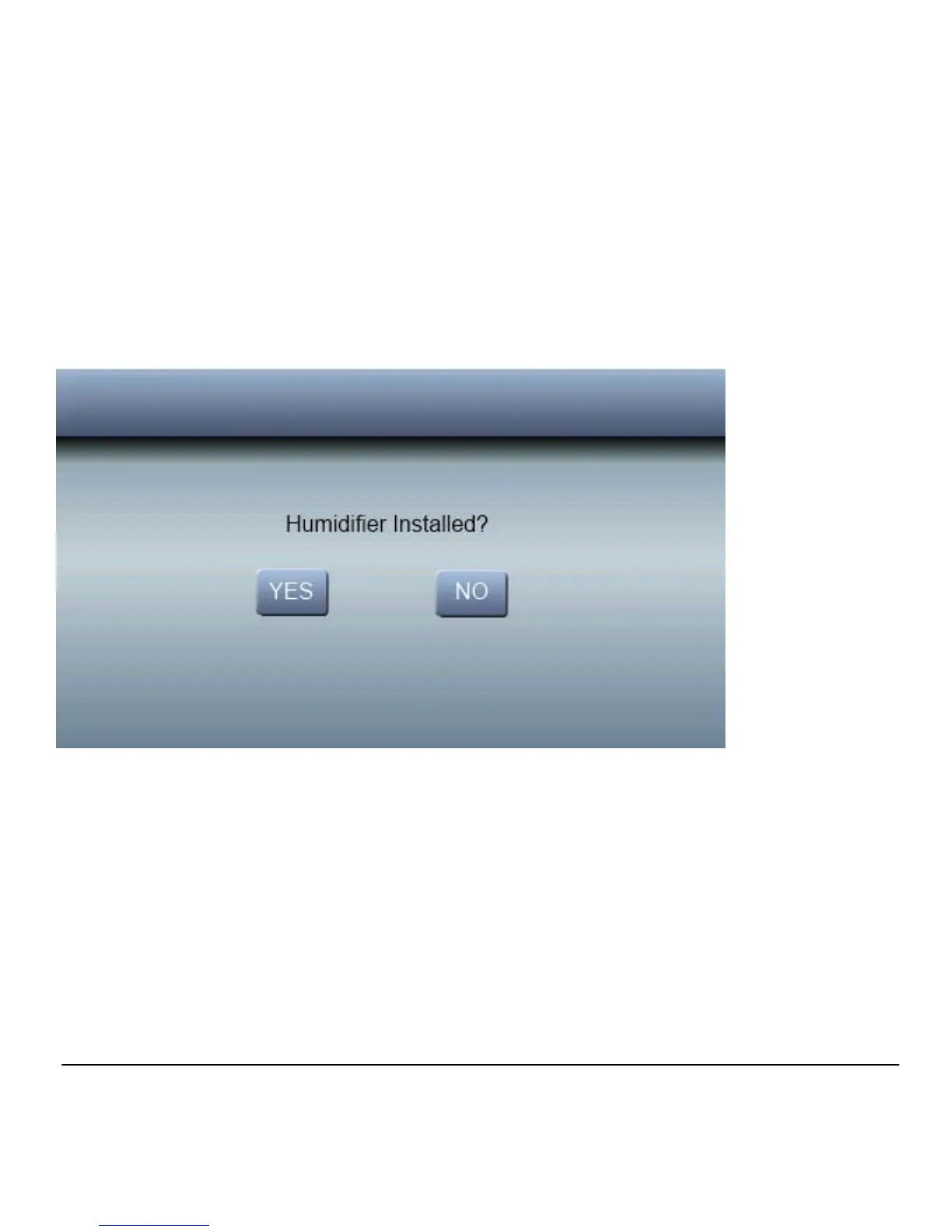

Once the indoor and outdoor equipment have been found or
entered, the following screen will appear allowing the In
staller to select “HUMIDIFIER INSTALLED”. Press YES or
NO to make the appropriate selection.
Selecting Outdoor Unit
If there is no communicating indoor unit, the screens below
will appear. The installer should select the indoor unit type
(furnace or fan coil), then select the indoor unit stages
(single or twostage).
