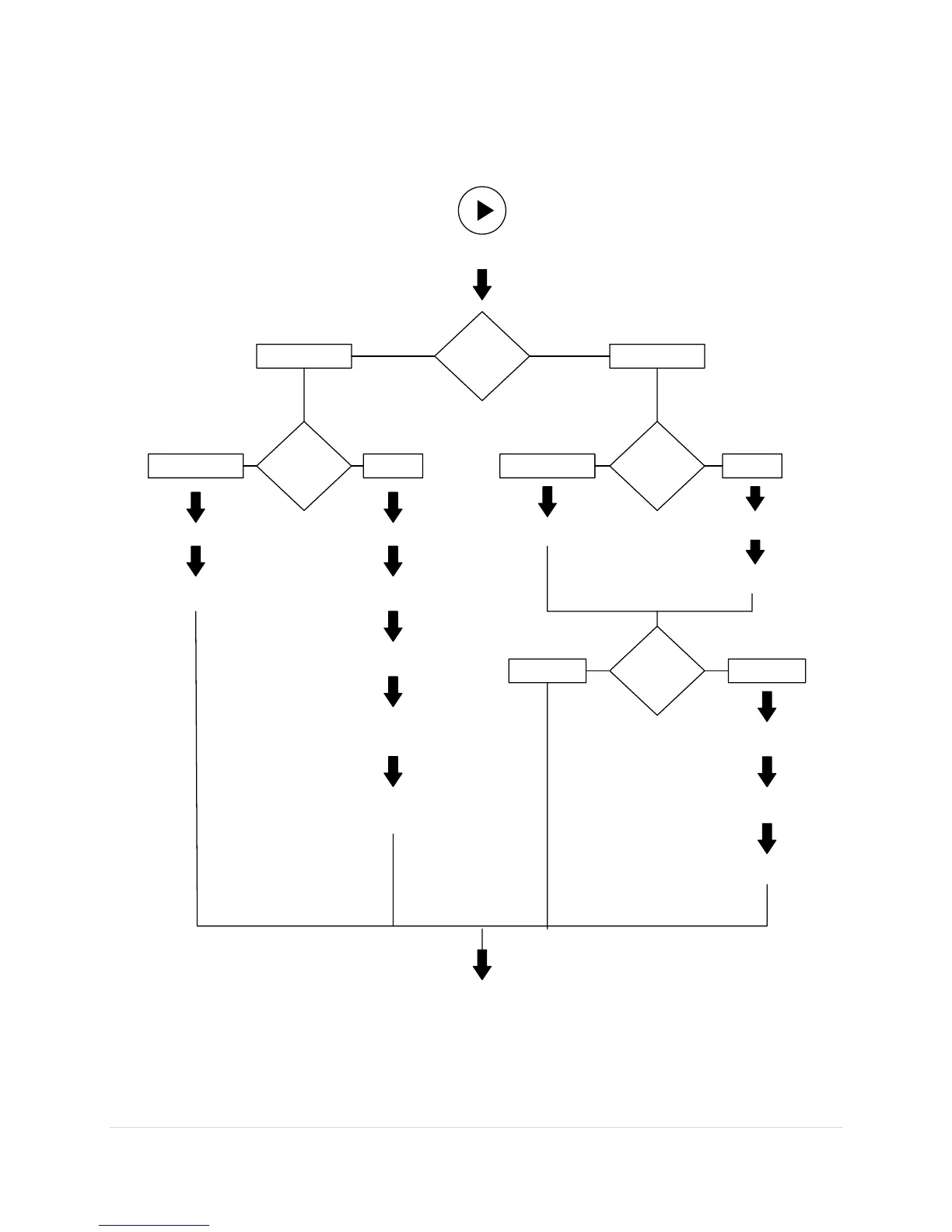

Configuring Communications using Obvius Ally Configuration Console

Navigate to Communication Setupunder the Display Menu List Box

RS-485

ETHERNET

RS-485 Ethernet

Modbus

BACnet

Modbus

BACnet

Modbus BACnet Modbus BACnet

Set Serial Settings

Set Modbus Address

Set Serial Settings

Set Device ID

Set Max Masters

(optional)

Set Max Info Frames

(optional)

DHCP

STATIC

Set Modbus Port

(optional)

Set Device ID

DHCP Static IP

Set Static Address

Set Subnet Mask

Set Gateway Mask

Press SEND SETUP TO METER

Set MS/TP Address

Set BACnet Port

(optional)
