Materials 29
2

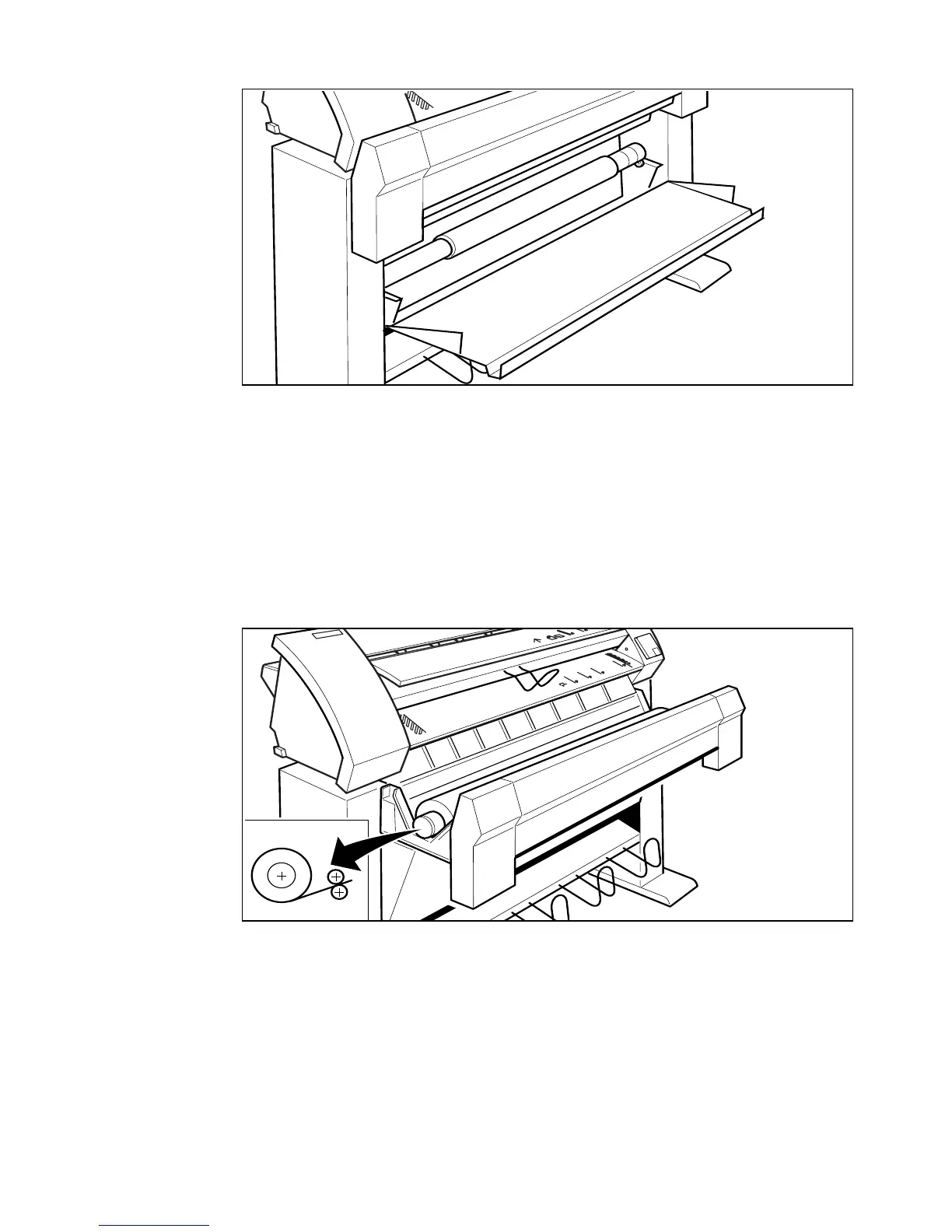

Remove the roll holder. (see figure 17)
[17] Removing the tube from the flap section
3
Remove the cardboard core from the roll holder.
4
Place a new roll of copy material on a table.
2488
5
Slide the roll holder in the roll of copy material while pressing the knob. (see
figure 13 on page 26)
[18] Pressing the knob
6
Align the copy material roll with the appropriate lines on the roll holder.
