ATOM 3.0 OPERATING MANUAL
© 2002 Design, 2011 Doc. No. 12-5216-r02 (9/6/11)

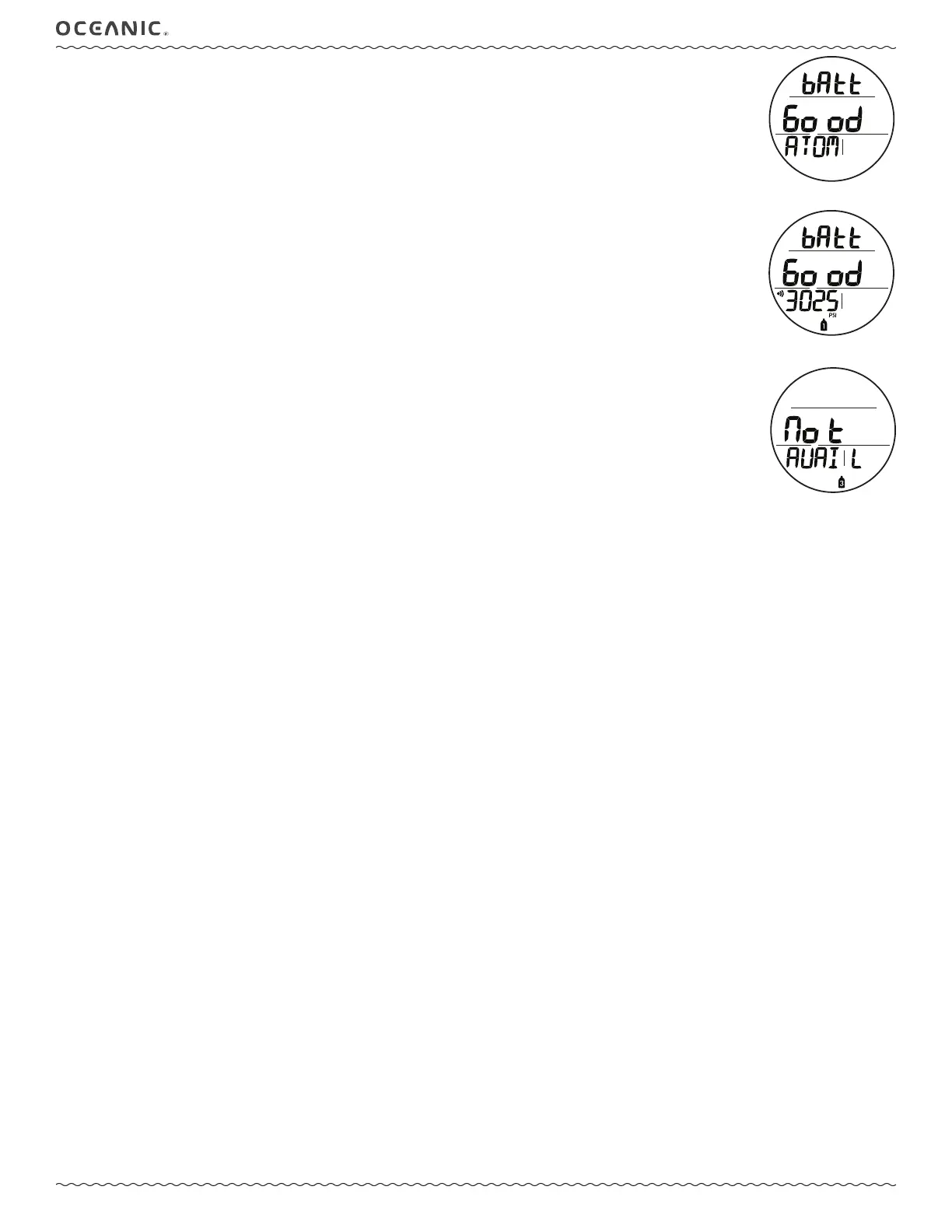

ATOM Batt Status, information includes (Fig. 79):
> Graphics bAtt and ATOM.
> Graphic Good (if => 2.75 v) or LOW (if < 2.75 v).
> Battery icon, if Low (< 2.75 v), flashing (if < 2.50 v).
TMT Status, information includes:
> Graphics bAtt and Good (or LOW) (Fig. 80).
> Tank Pressure with PSI (or BAR), Link, and Tank 1 (or 2, 3) icons, if the TMT is active and reporting.
- or -
> Graphics Not AVAIL with Tank 1 (or 2, 3) icon (Fig. 81), if the TMT is not in use or not reporting (no link signal).
Fig. 79 - ATOM BATT STATUS
Fig. 80 - TMT STATUS
Fig. 81 - TMT STATUS
