Obeya assembly instructions
Post
Cross rail
5/16- 18 x ¾" Bolt

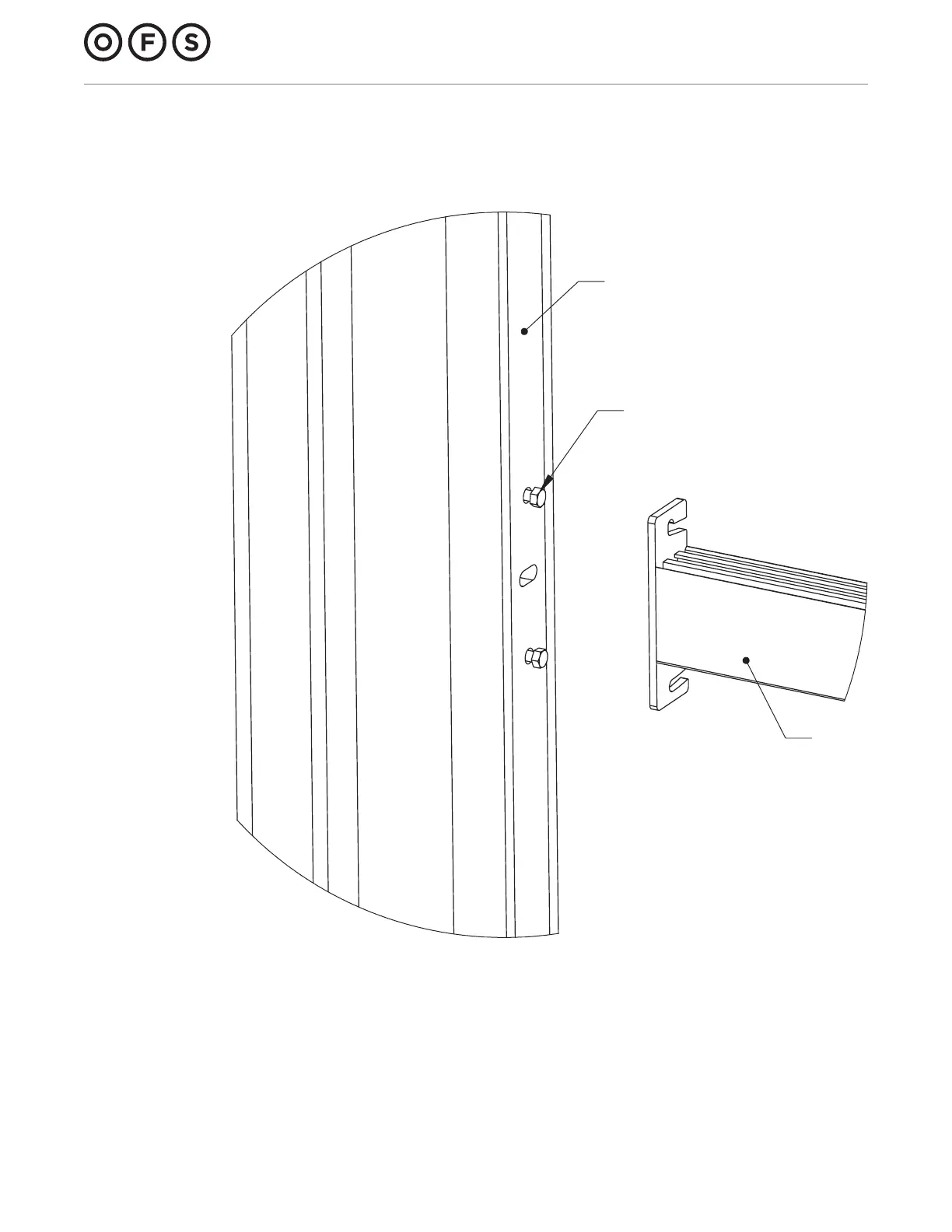

1. Insert 5/16-18 x ¾" bolts into the pre installed insert nuts in the face
of the post leaving them approx ⅜" out for cross rail mounting
plate clearance.
2. Install the cross rail by hooking the top of the mounting plate onto the
top bolt in the post on each end and rotating the rail to engage the
bottom bolt.
3. Secure the rail to the post by tightening the bolts. (leave bolts loose
until all rails for the wall being assembled are installed for ease
of assembly)
Cross rail attachment
