Obeya assembly instructions

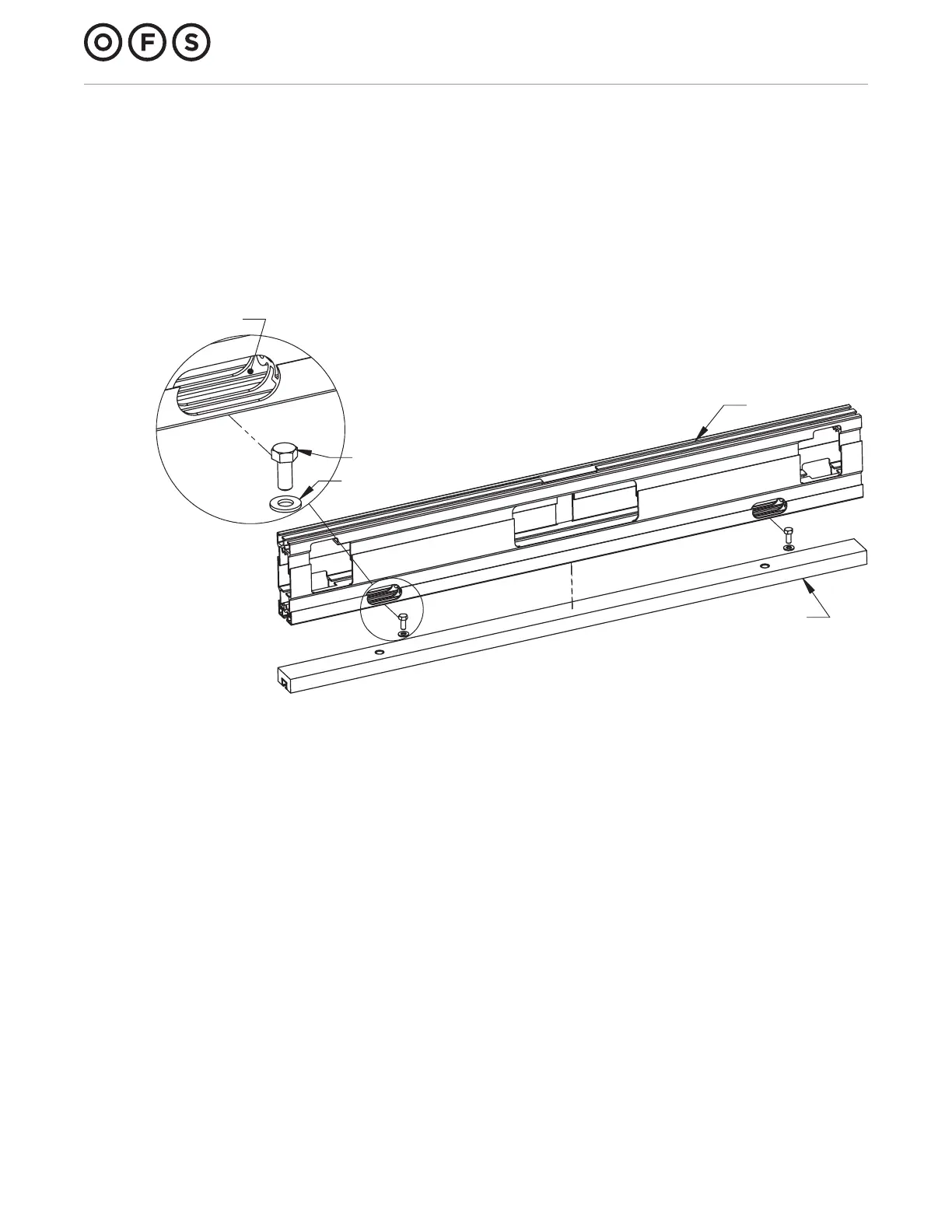

Access slot
Beam
5/16-18 x ¾" Bolt
⁄ Flat washer
Note: If a folding curtain option is chosen curtain must be installed into
trim rail before attaching. (see steps 5-7)
Trim rail
1. With all posts and extrusions assembled and leveled the trim rails can now
be installed.
2. Lift trim rail up to the bottom side of the beam and secure using a
5/16-18 x ¾" bolt and ⁄" flat washer through each beam access slot and
thread into the insert nuts in the trim rail. Ratchet wrench is recommended
to speed assembly.
Open wall and curtain wall trim rails
Warning: Machined slots are sharp!
