Obeya assembly instructions

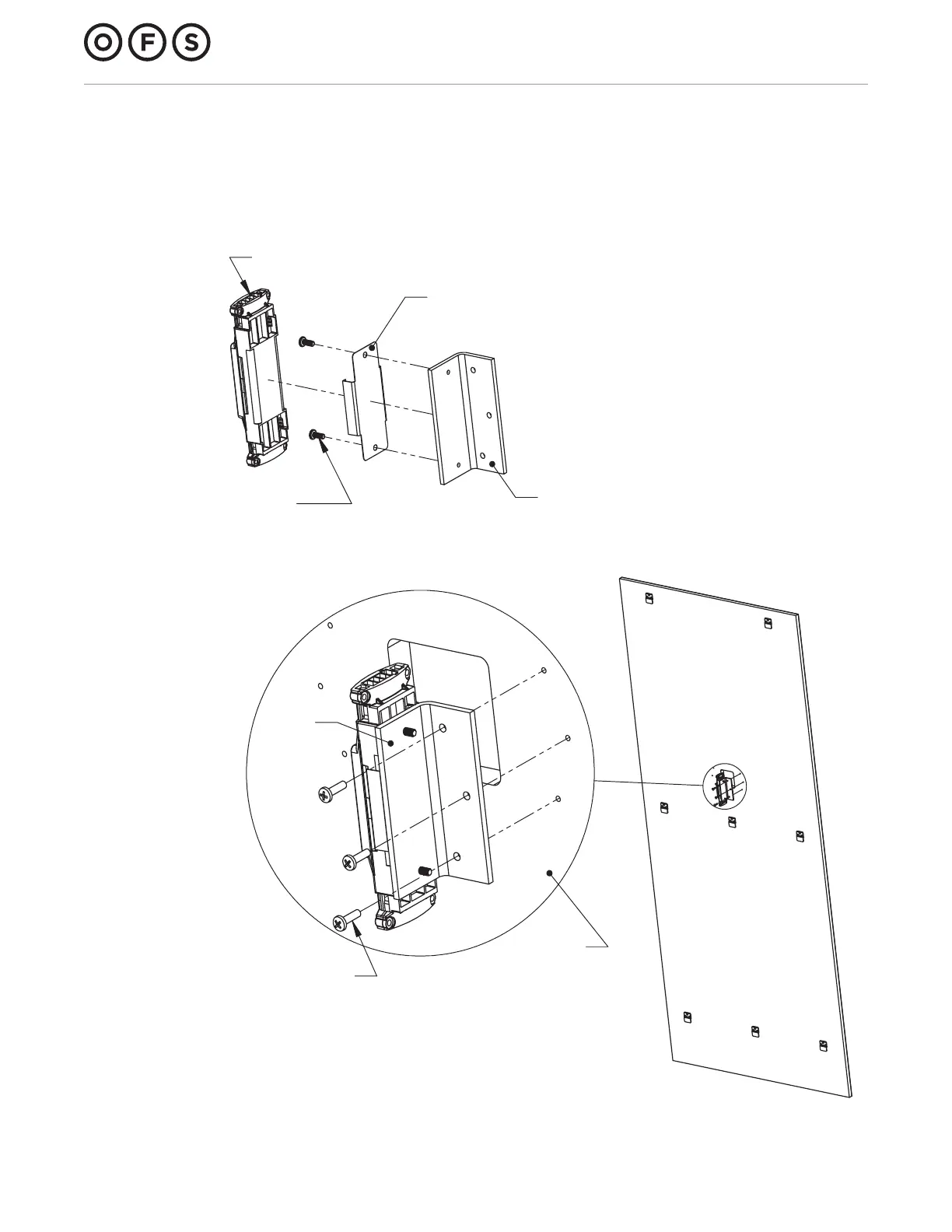

1. Attach mounting clip to outside face of
L-bracket with the two threaded holes
using (2) #8-32 x ½" pan head machine
screws as shown.
2. Attach duplex receptacle to the mounting
clip by centering receptacle
in the mounting clip and pressing
into position.
3. Attach duplex receptacle assembly to wall panel
aligning holes in L-bracket with holes in panel on
either side of access cutout & attach using
(3) #8 x ⅝" wood screws
#8 x ⅝" wood screw
Wall panel
Duplex assembly
L-bracket
#8-32 x ½" Pan head
machine screw
Mounting clip
Duplex receptacle
Media duplex receptacle assembly
