Obeya assembly instructions
1. With the wall structure assembled the framed wall panel can now be installed.
2. Attach the light sill extrusion to each post that a framed wall panel will attach to by
removing the backer from the tape strip on the back side of the light sill extrusion
and placing it in the machined groove in the edge of the post starting flush with the
bottom edge of the post and working upward.

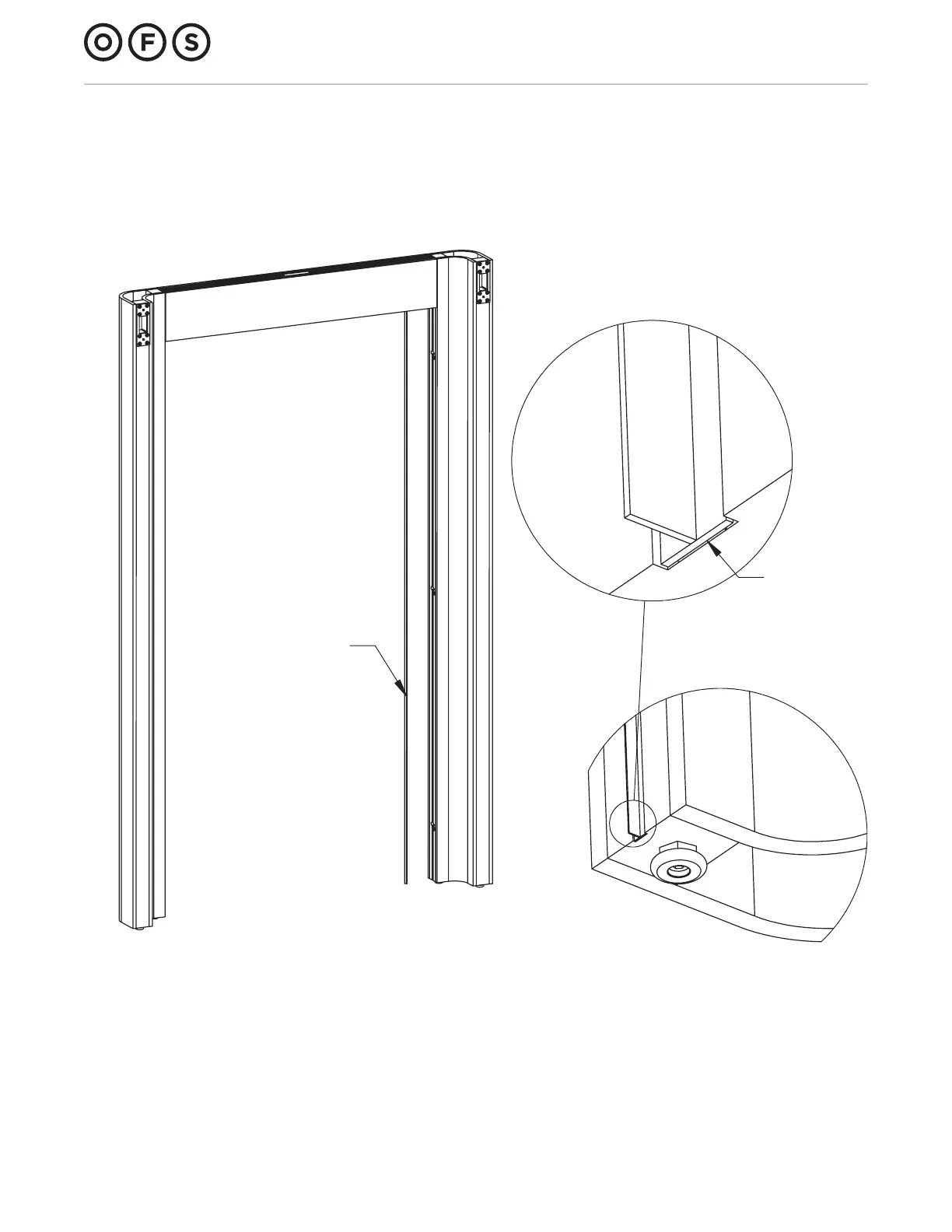

Attach light sill flush
to bottom of post in
machined groove
Wall assembly
(posts & beam)
Light sill extrusion
Bottom of post
Framed wall panel attachment
Light sill attachment
