Obeya assembly instructions
1. Place receptacle housing into panel from
front side.
2. From back side of panel secure receptacle
housing to panel with (4) #8-32 x ½" machine
screws and (4) flat washers.
3. From back side of panel place duplex receptacle
into housing.
4. Locate back plate centered over the back of teh duplex
receptacle aligning holes in the back plate with inserts
in the back of the receptacle housing.
5. WARNING! Do not over tighten screws.
Secure back plate to receptacle housing using (4)
#8-32 X ⅜" machine screws.
Detail B
Scale 1 : 2
#8-32 x ½"
Machine screw
& flat washer
#8-32 x ½"
Machine screw
Back plate
Duplex receptacle

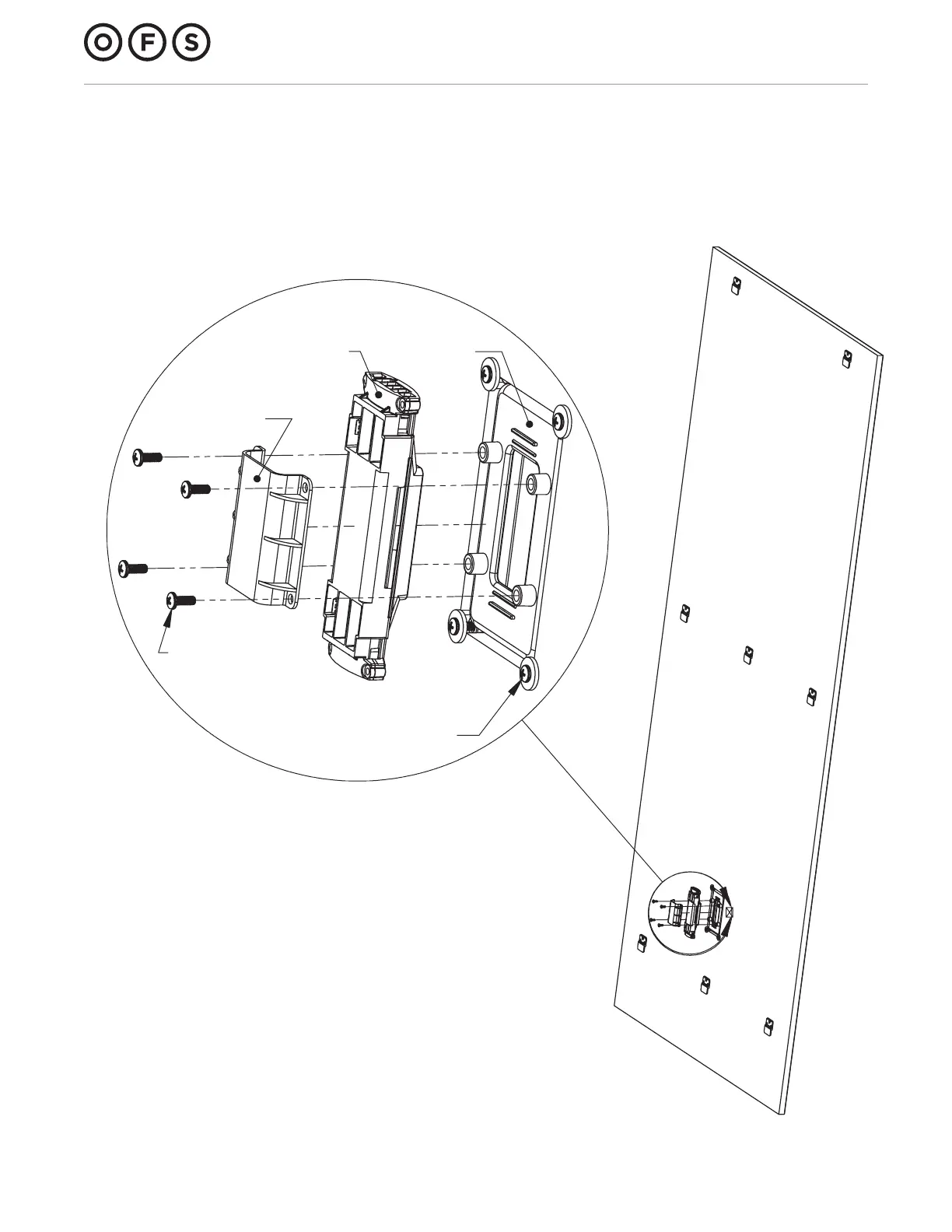

Duplex receptacle assembly - full wall panel
Receptacle
housing
To Next Page
