Obeya assembly instructions
Screws
Anchor bracket
Post

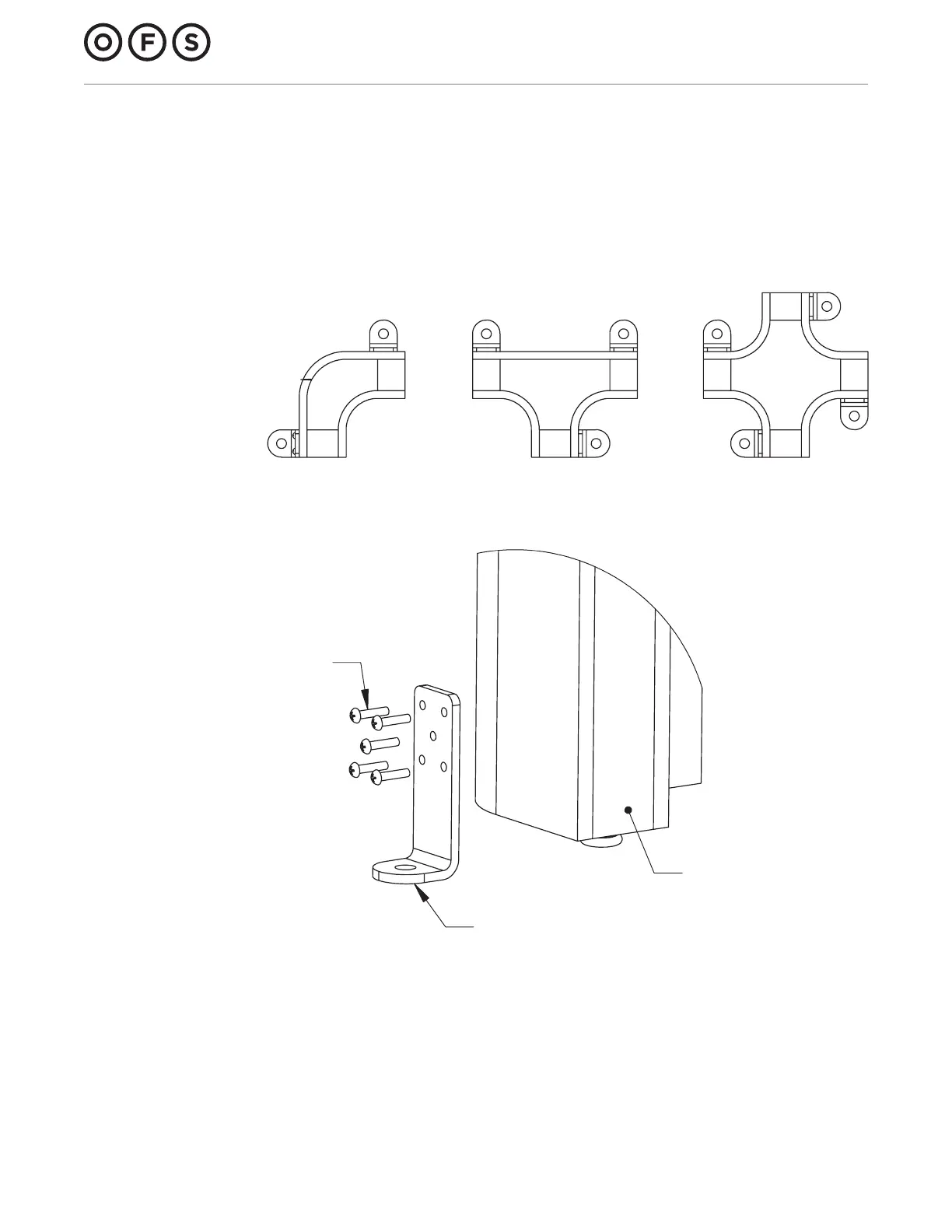

Required bracket configurations
Corner post - 2 brackets T post - 3 brackets 4 Way post - 4 brackets
1. Attach anchor bracket to bottom of post in orientation shown below using supplied
screws. (Qty 5 per bracket). Use bracket to mark location of screws and pre bore
⅛" x 2" deep holes.
2. Attach bracket to concrete floor using supplied anchor bolt. For other floor materials
attach per local code (fasteners not included)
Note: When a post power sleeve is specified on a T or 4-way post, move the anchor
bracket, located on the inside corner, to the nearest post edge.
Seismic anchor bracket
