Obeya assembly instructions
Post power sleeve attachment
1. Install duplex receptacle into power sleeve
receptacle housing.
2. Route and attach electrical jumper(s) before installing
power sleeve.
3. Lift power sleeve approx ¾" above post to align center
of clips with mounting pins in post.
4. Press power sleeve into post to engage mounting clips
with mounting pins.
5. While holding pressure at top, middle and bottom of
power sleeve slide power sleeve downward to lock
into position.

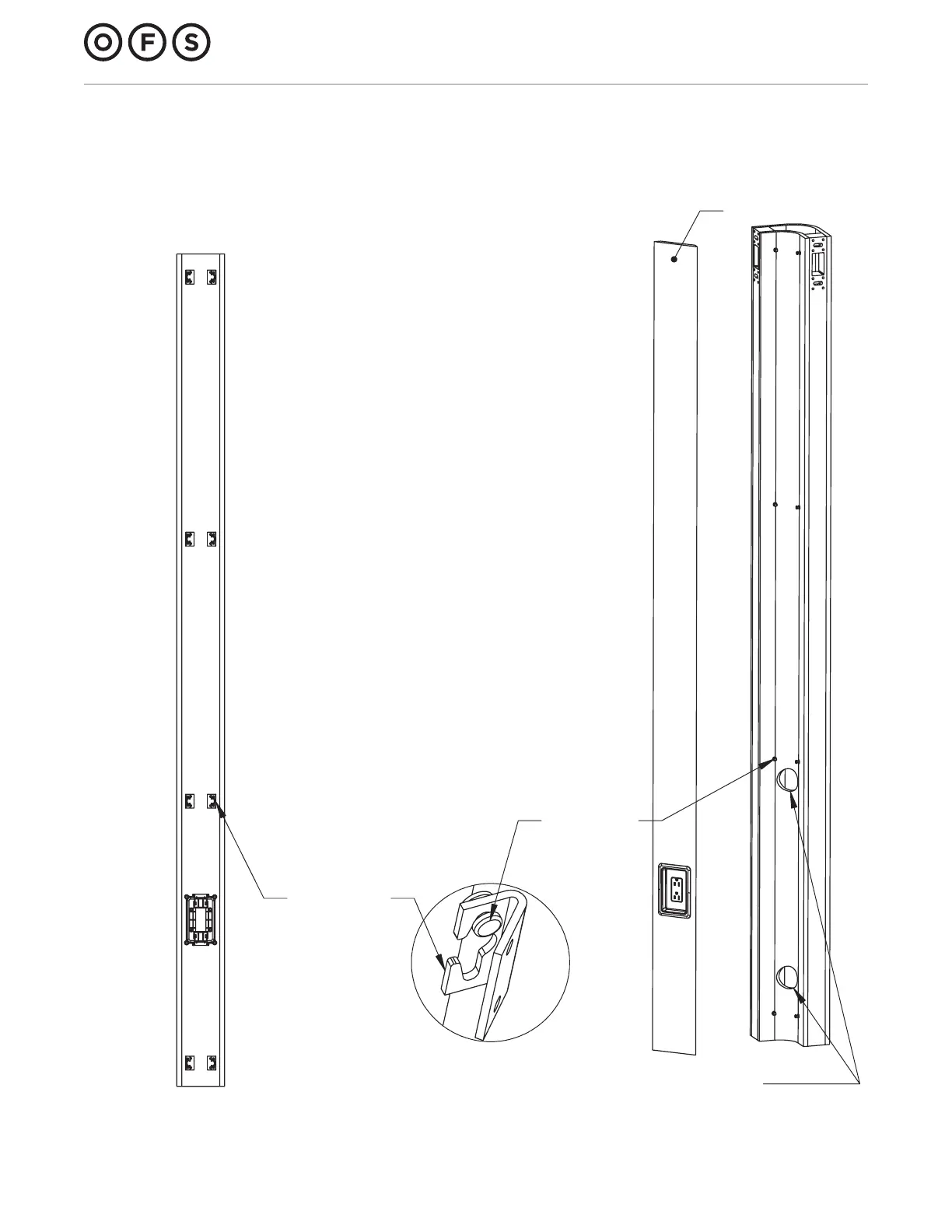

Power sleeve
Mounting clip
Mounting pin
Wire management
cutouts
Back of power sleeve
Clip detail: slide clips onto
mounting pin through cen-
ter cutout and slide down
to lock into position.
