Oki B410D User Manual

Troubleshooting > 72

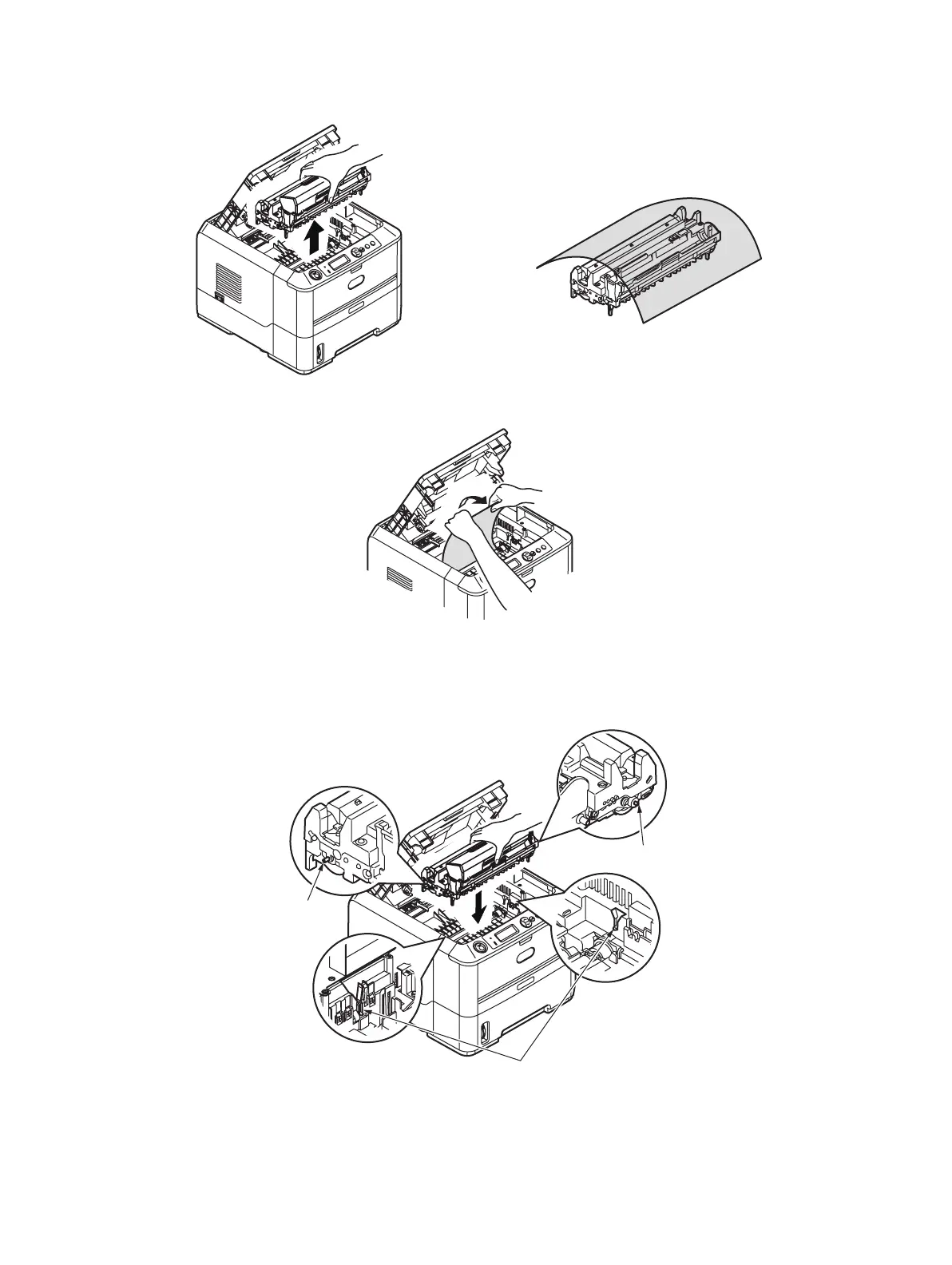

3. Carefully lift out the image drum, complete with the toner cartridge. Be careful not
to touch or scratch the green drum surface.
4. Remove any jammed sheets from the paper path.
5. Re-install the image drum complete with toner cartridge, ensuring that the pegs (1 &
2) correctly locate into the slots on each side of the printer (3).
6. Lower the top cover but do not press down to latch it closed yet. This will protect the
drum from excessive exposure to room lighting, while you check the remaining area
for jammed sheets.
7. Open the rear cover and check for paper in the rear path.
3
1
2

Oki B410D Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	5.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Internal memory	32 MB
Processor model	PowerPC405
Maximum internal memory	288 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	1 sheets
Envelopes sizes	C5, C6, DL
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 - 120gsm
Paper tray media types	Envelopes
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Power requirements	230 VAC, 50-60 Hz
Compatible operating systems	Windows 2000 / XP / XP x64 / Server 2003 / Server 2003 x64 / Vista (32-bit) / Vista (64-bit) / UNIX / Linux; Mac OS X PowerPC 10.2.8 + / OS X Intel 10.4.4 +
Display	LCD
Maximum duty cycle	50000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	268 x 369 x 395 mm
