Oki B410D User Manual

Troubleshooting > 73

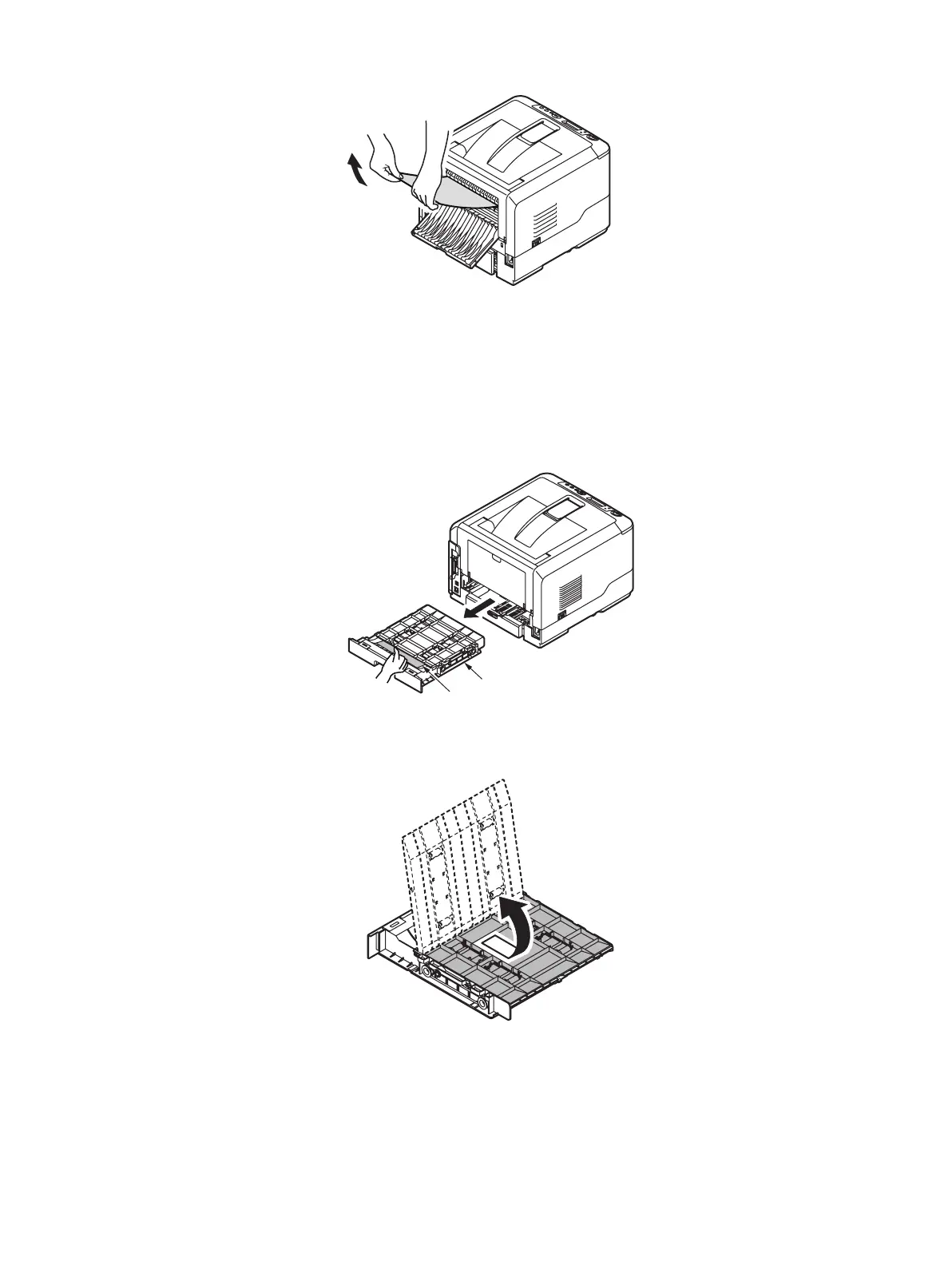

> Pull out any paper found in this area.
> If the paper is low down in this area and difficult to remove, it is probably still
gripped by the fuser. In this case, raise the top cover, reach around and press
down on the fuser pressure release lever.
> If you are not using the rear cover, close it once the paper is removed from this
area.
8. Remove the Duplex unit (1) and check for any paper in this area. Remove any paper
and replace the duplex unit.
> If the paper is difficult to remove, push the cover in the arrow direction, raise it
and remove the paper.
9. Open the Multi Purpose Tray (1) (Manual Feed Tray for B410d and B410dn).
1
2

Oki B410D Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	5.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Internal memory	32 MB
Processor model	PowerPC405
Maximum internal memory	288 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	1 sheets
Envelopes sizes	C5, C6, DL
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 - 120gsm
Paper tray media types	Envelopes
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Power requirements	230 VAC, 50-60 Hz
Compatible operating systems	Windows 2000 / XP / XP x64 / Server 2003 / Server 2003 x64 / Vista (32-bit) / Vista (64-bit) / UNIX / Linux; Mac OS X PowerPC 10.2.8 + / OS X Intel 10.4.4 +
Display	LCD
Maximum duty cycle	50000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	268 x 369 x 395 mm
