Appendix C Maintenance Manual for Second Tray unit
43984801TH Rev.1
153 /
Oki Data CONFIDENTIAL

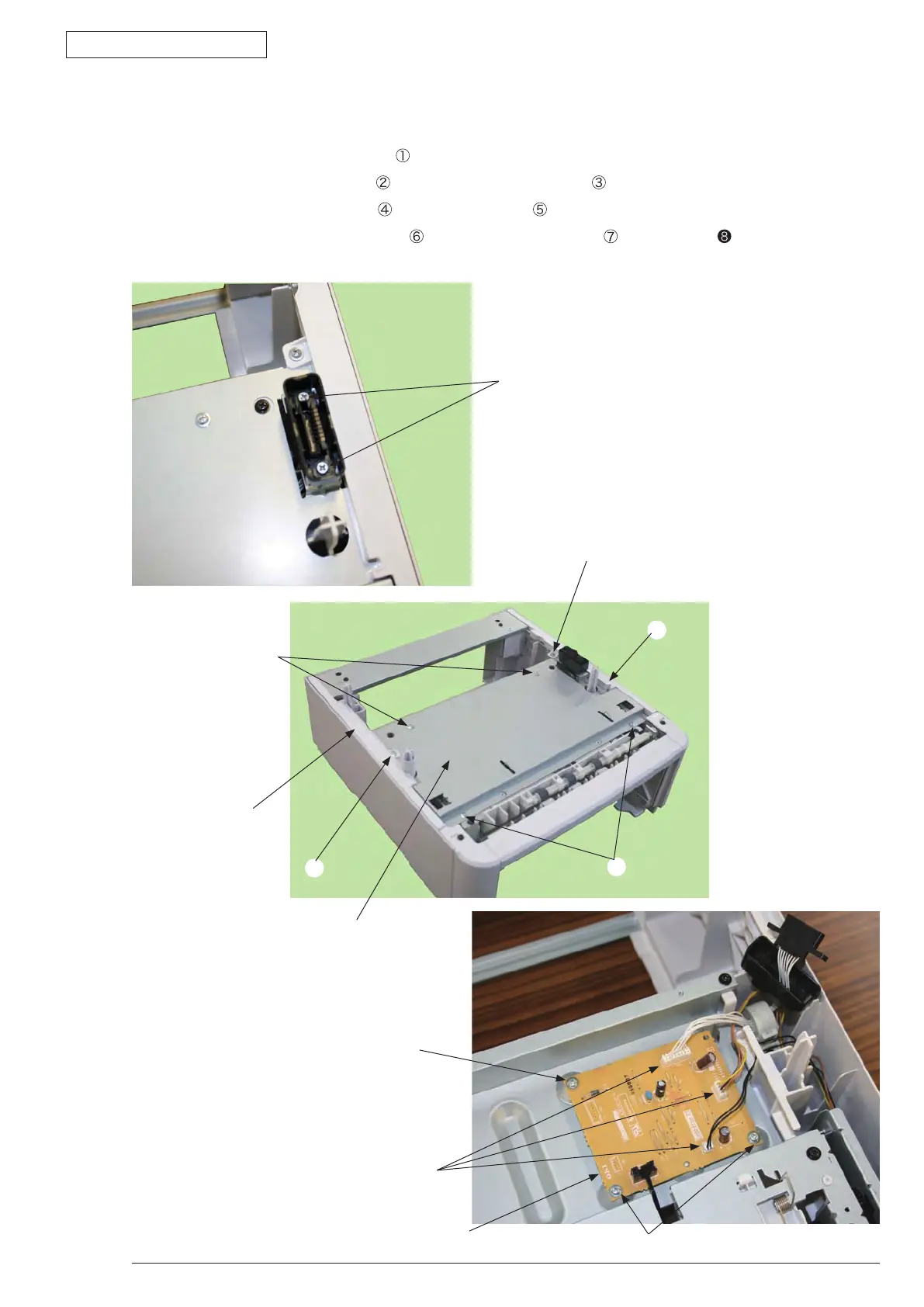

3.3.4 Board-OT7
(1) Turn off the printer and pull the AC cord. Remove the printer from the device.
(2) Remove two Screw-Shoulders
.
(3) Remove two screws (silver)
to remove two Cover-Top-Pot .
(4) Remove four screws (silver)
to remove Plate-Top .
(5) Disconnect the three connectors
, and remove three screws to Board-OT7 .
(6) As for reinstalling, take the opposite sequence to removal sequence.
①
②
③
④
③
④
②
⑦
⑥
⑦
❽
⑤
To Next Page
