Oki B430

43984801TH
Rev.1
8 /
Oki Data CONFIDENTIAL
1. CONFIGURATION
A
A
A’
Paper cassette
Toner cartridge
High voltage
power board
Low voltage
power board
Image drum cartridge
A’
Stacker-Cover-Assy
Cover-Side-R
Cover-Side-L
Plate-Base-PCB
Plate-Assy-Base
Motor-Fan
Duplex
Rear-Cover-Assy
Fuser-Assy
OPE Cover-Assy
Guide-Paper-Duplex
Guide-Paper-R
Manual-Assy
Front-Guide-Assy
CU board
1.2 Printer Configuration
The printer main unit includes the following hardware parts.
• Electrophotographic processing part
• Paper feeding part
• Controller
• Op
erational part
• Power supply unit

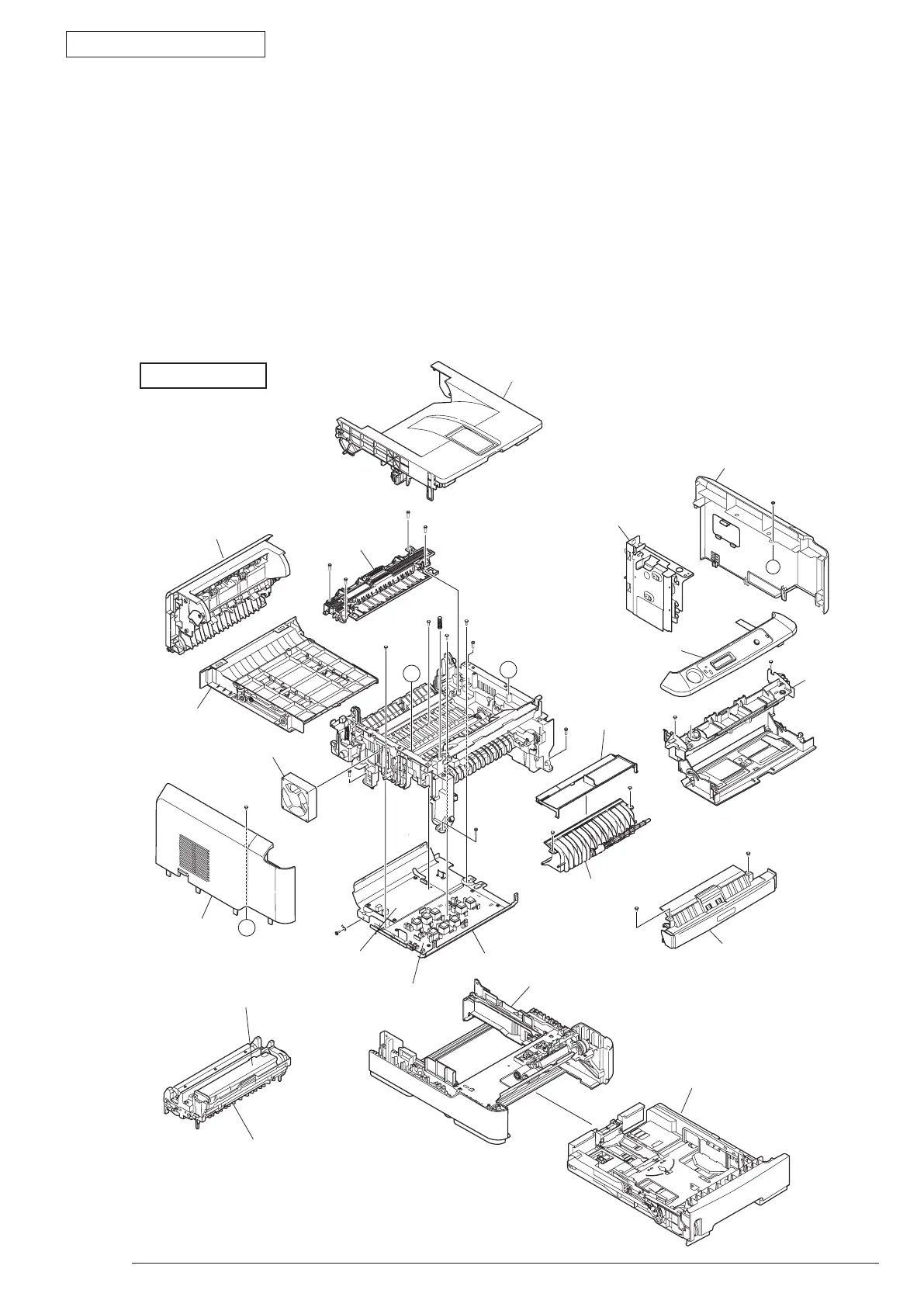

Figure1-2
B410d/B410dn
Note!
•
Fuser-Assy has to be replaced by Assy unit.
• It is forbidden to disassemble Fuser-Assy or reuse the disassembled Fuser-Assy.
The configuration of printer main unit is shown as diagram 1-2~1-4
