3. Parts replacement
A
A
A’
A’
Stacker-Cover-Assy
Cover-Side-R
Cover-Side-L
Plate-Assy-Base
Motor-Fan
Duplex
Rear-Cover-Assy
Fuser-Assy
OPE Cover-Assy
Guide-Paper-Duplex
Guide-
Paper-R
MPT-Assy
Front-Guide-Assy
CU board
Plate-Base-PCB
Toner cartridge
Low voltage
power board
High voltage
power board
Paper cassette
Image drum cartridge

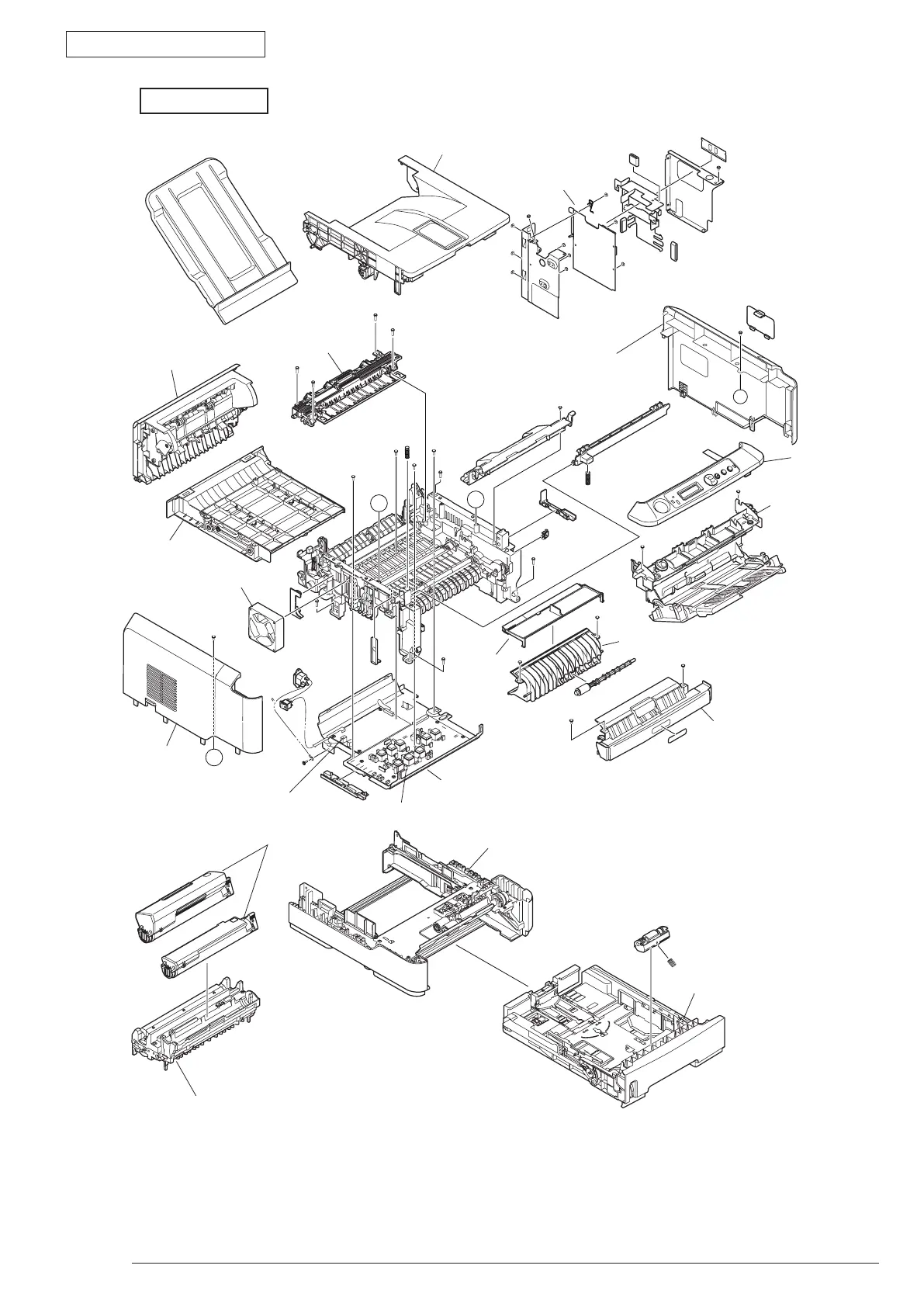

Figure 3-2
B430d/B430dn
