3. Parts replacement
・
In the case of Multi-purpose Tray (B420dn, B430d, B430dn)
(1)
Shut off the power of Printer.
(2) Open Multi-purpose Tray, widen paper supporter.

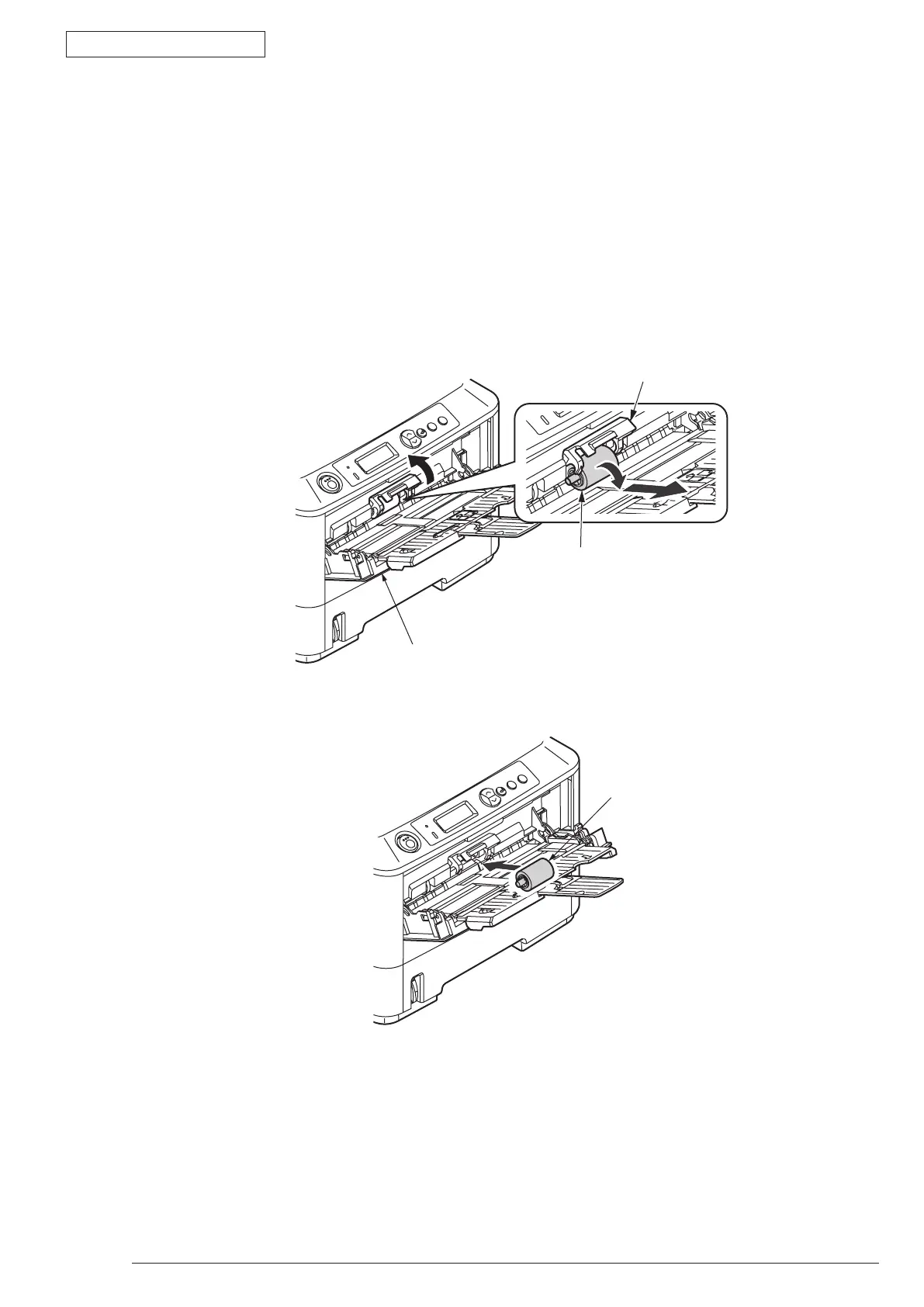

(3) Open the cover of Paper feeding roller of Multi-purpose Tray by up direction. Remove Roller-Assy-
MPT
❶
by rolling it to the near side.
(Note on removing / installing)
1
.
While install the Paper feeding roller (Roller-Assy-MPT)
❶
、
be sure to press it into the depths of
the shaft and confirm whether it is fixed.
❶
❶
Paper feeding roller cover
Multipurpose tray
