B6500 User’s Guide> 10
Basic Operations

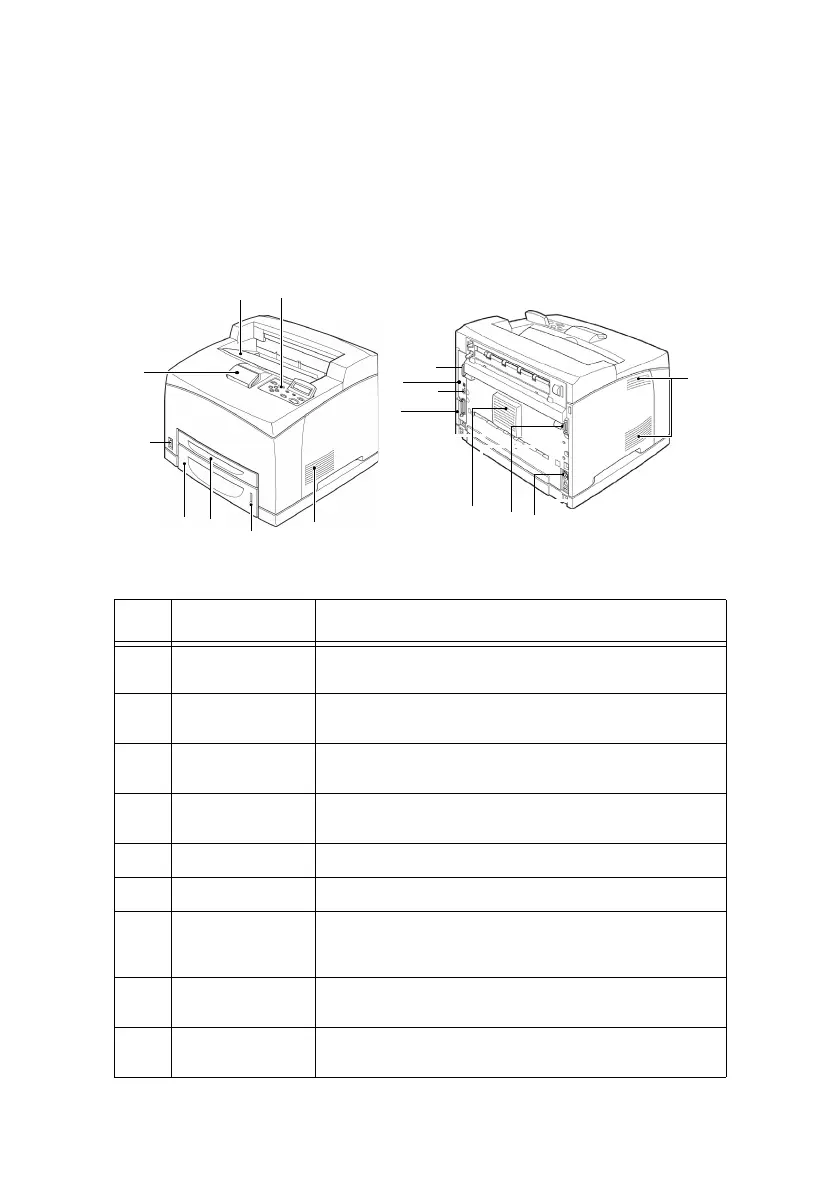

Main Components and Their Functions
Standard Configuration
No. Name Description
1 Center output
tray
Print jobs are output here with the printed side facing
down.
2 Control panel Consists of the essential operation buttons, indicators
and display.
3 Ventilation hole Releases heat to prevent the interior of the printer
from heating up.
4 Paper meter A meter to check the amount of remaining paper.
Attached to the 550 tray.
5 Tray 1 Sets the 150 tray.
6 Tray 2 Sets the 550 tray.
7 Power switch Switches the power of the printer on and off. Pressing
the switch to the <|> position switches it on and
pressing it to the <0> position switches it off.
8 Paper stopper Raise this when printing on paper larger than Letter/A4
size.
9 Duplex unit
connector
For connecting the optional duplex unit.
1
2
8
7
3
6
5
4
13
12
11
3
3
9
10
14
