B6500 User’s Guide> 135

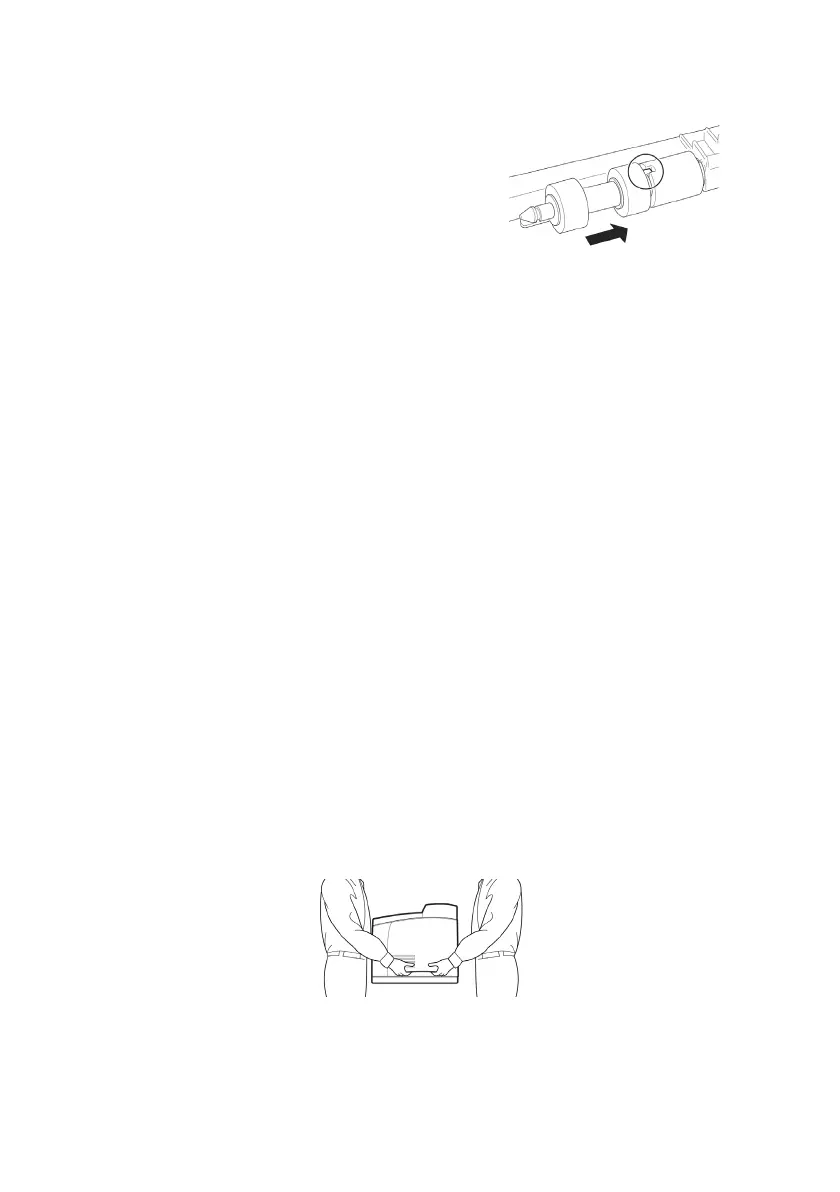

By aligning the slot of the feed roll
with that of the shaft, push the
feed roll completely in so that the
short tab fits into the slot of the
shaft.
5. Push the paper tray completely into the printer.
When Moving the Printer
Carry out the following procedure when moving the printer.
• The machine, without the optional accessories, paper
trays, consumables and paper, weighs 18.8 kg. When
moving the equipment, make sure that there are two
or more persons carrying it.
• When lifting the machine, be sure to observe the
following points, failure to do so may cause the
machine to fall and result in injuries.
• 2 persons, one facing the front of the machine
(control panel) and the other facing the back,
should firmly grip the recessed areas on the
bottom part of both sides of the machine. Never
try to lift the machine by gripping any other areas.
• Bend your knees to avoid possible injuries to your
back.
• Do not tilt the machine more than 10 degrees
Important:
To Next Page
