B6500 User’s Guide> 20
NOTE
> You can set the print features in the properties dialog box
from the printer icon by selecting [Printers and Faxes] (or
[Settings] > [Printers] depending on the OS).
Printing on Envelopes
For details on the envelopes that can be used, refer to “Usable
Paper” on page 37. The procedure to print on envelopes is as
follows.
Loading Envelopes
You have to close the flaps of the envelopes and load them with the
address side facing up in the orientation shown in the diagram
below.
The following explains how to load the envelopes, using COM-10
envelopes as an example, in trays 1 to 4.
Important:
• The reverse side of the envelope cannot be printed on.
NOTE
> For details on the procedure to load paper in a paper tray,
refer to “Loading Paper in a Paper Tray” on page 41.

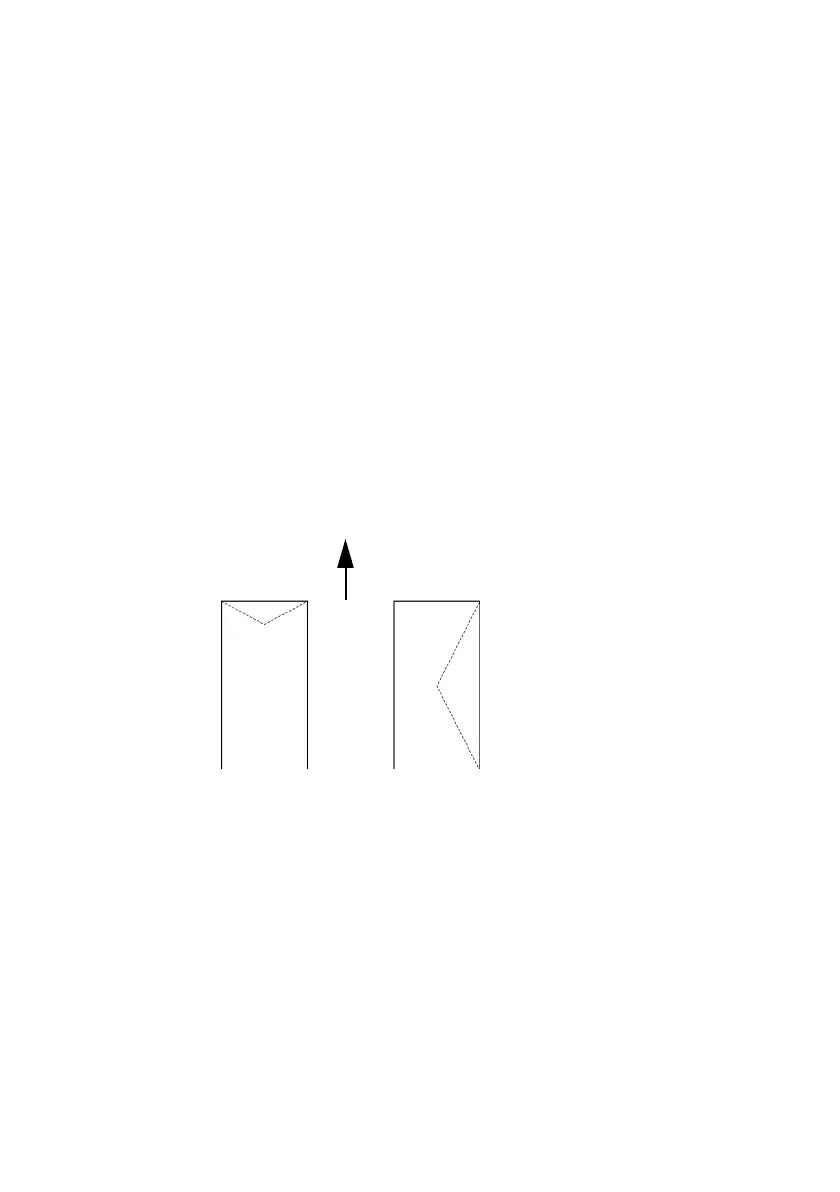

Paper feed direction
* The flap faces down
To Next Page
