B6500 User’s Guide> 12

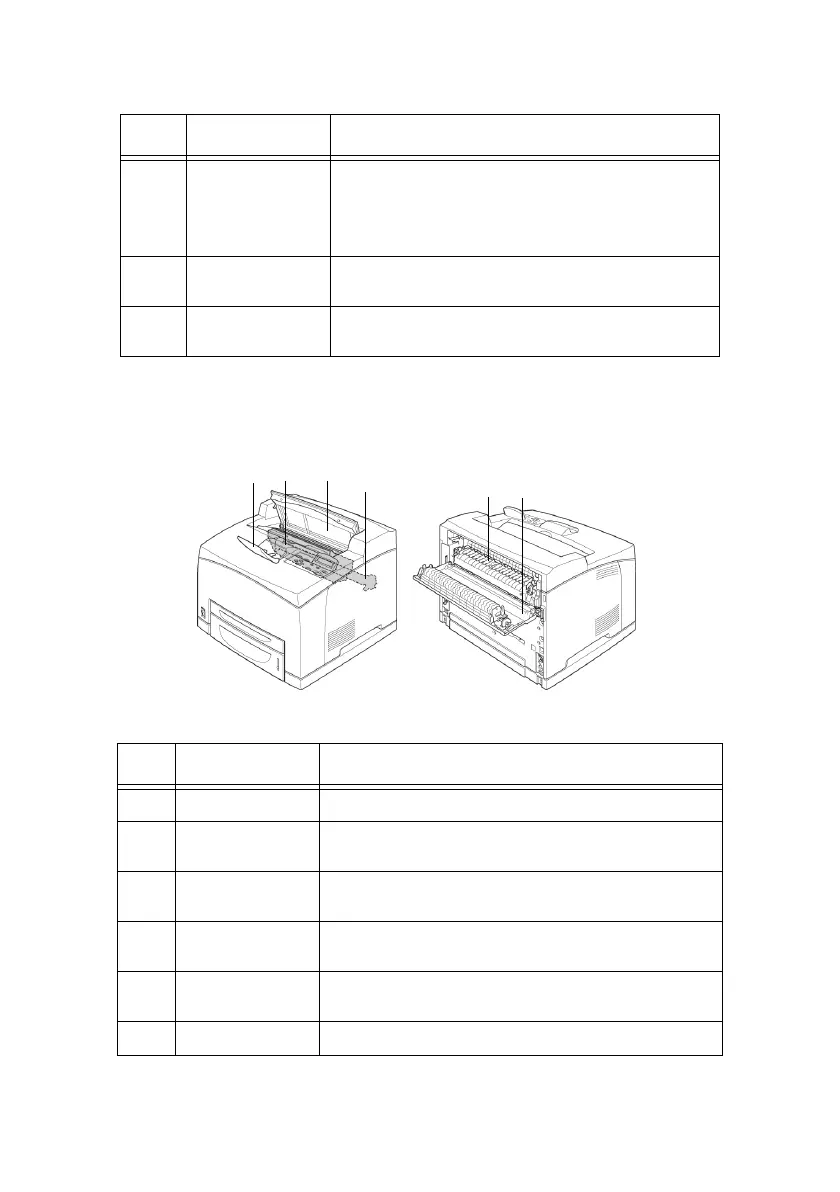

Internal View
5 Rear output tray
lever
When the rear tray has been installed, the paper
output location can be switched between it and the
center output tray. Raise the lever to output to the
rear tray and lower the lever to output to the center
output tray.
6 A4 universal tray Can install up to two levels of an Letter/A4
universal tray (550) to this printer.
7Right detachable
cover
Remove this when installing optional accessories
such as hard disk and additional memory.
no. Name Description
1 Paper stopper Raise this when printing on paper larger than A4 size.
2 Drum/toner
cartridge
Contains the toner and the photosensitive drum.
3 Cover A Open this when replacing the drum/toner cartridge
and removing jammed paper.
4 Fuser unit Fixes the toner on the paper. Do not touch this when
using the printer as it is hot.
5 Transfer roll
cartridge
Transfers the toner image on the surface of the
photosensitive drum to the paper.
6 Cover B Open this when removing jammed paper.
No. Name Description
5
32
1
46
To Next Page
