B6500 User’s Guide> 24

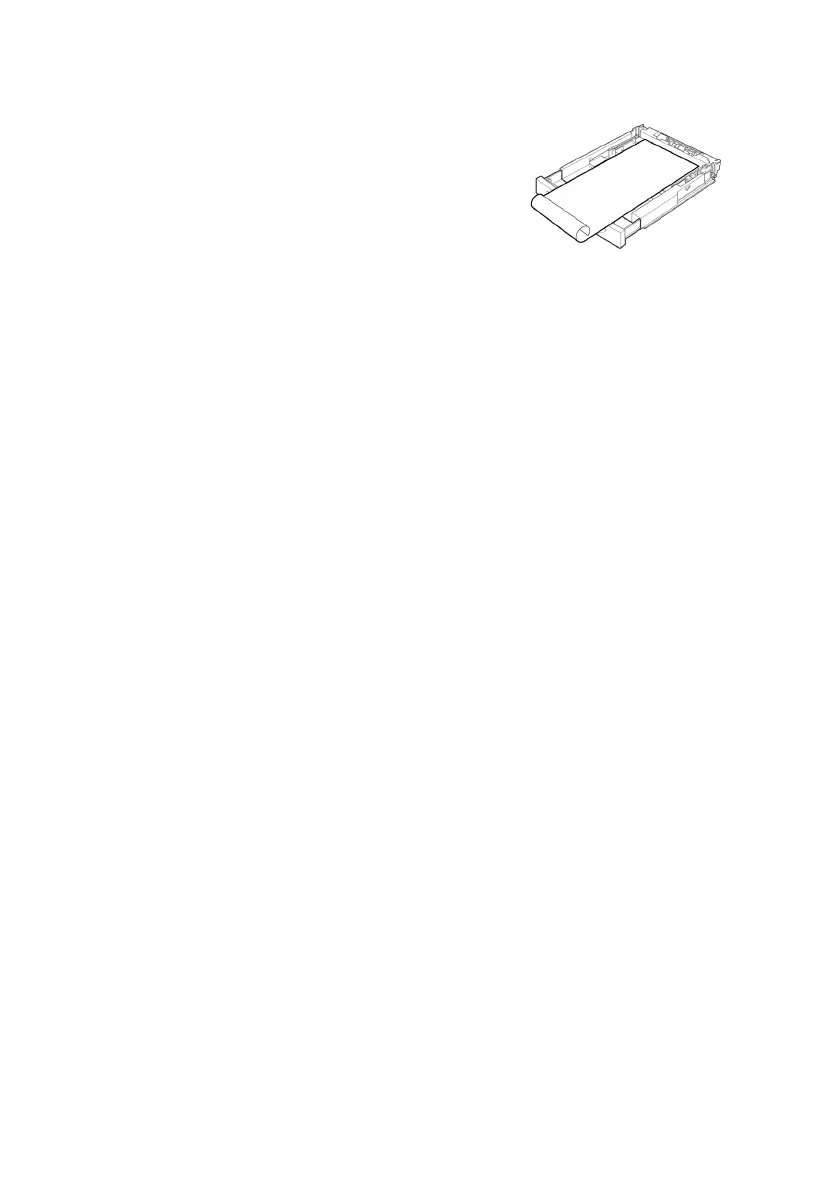

2. Load the paper with the side to be
printed facing up. Curl up the back
end of the paper so that it will not fall
from the tray.
3. Push the paper tray completely into
the printer.
Setting Custom Paper Sizes
Before printing, set the custom size on the printer driver.
You have to configure the settings on the control panel too when
loading custom size paper in trays 1 to 4 for printing. For details on
setting the control panel, refer to “ Setting Custom Paper Sizes”
(P. 44).
Important:
• When setting the paper size on the printer driver and the
control panel, be sure to specify the same size as the actual
paper used. Setting the wrong size for printing will cause the
machine failure. This is especially true if you configure a
bigger size when using a narrow width paper.
On the printer driver, set the custom size in the [Paper Size] dialog
box. This section explains the procedure using Windows XP as an
example.
NOTE
> For Windows NT 4.0/Windows 2000/Windows XP, only
users with administrator’s rights can change the settings.
Users without the rights can only check the contents.
1. From the [File] menu, click [Print].
2. Select [Properties] then select the [Setup] tab.
3. Select Option as needed: Source, Media Type, etc.
4. You may select a previously stored custom size from the list
or you may add an additional custom size.
5. To add a new custom size:
A. Select paper feed options.
B. Select Custom Size.
C. In the Name Field, Type a name for your custom size.
To Next Page
