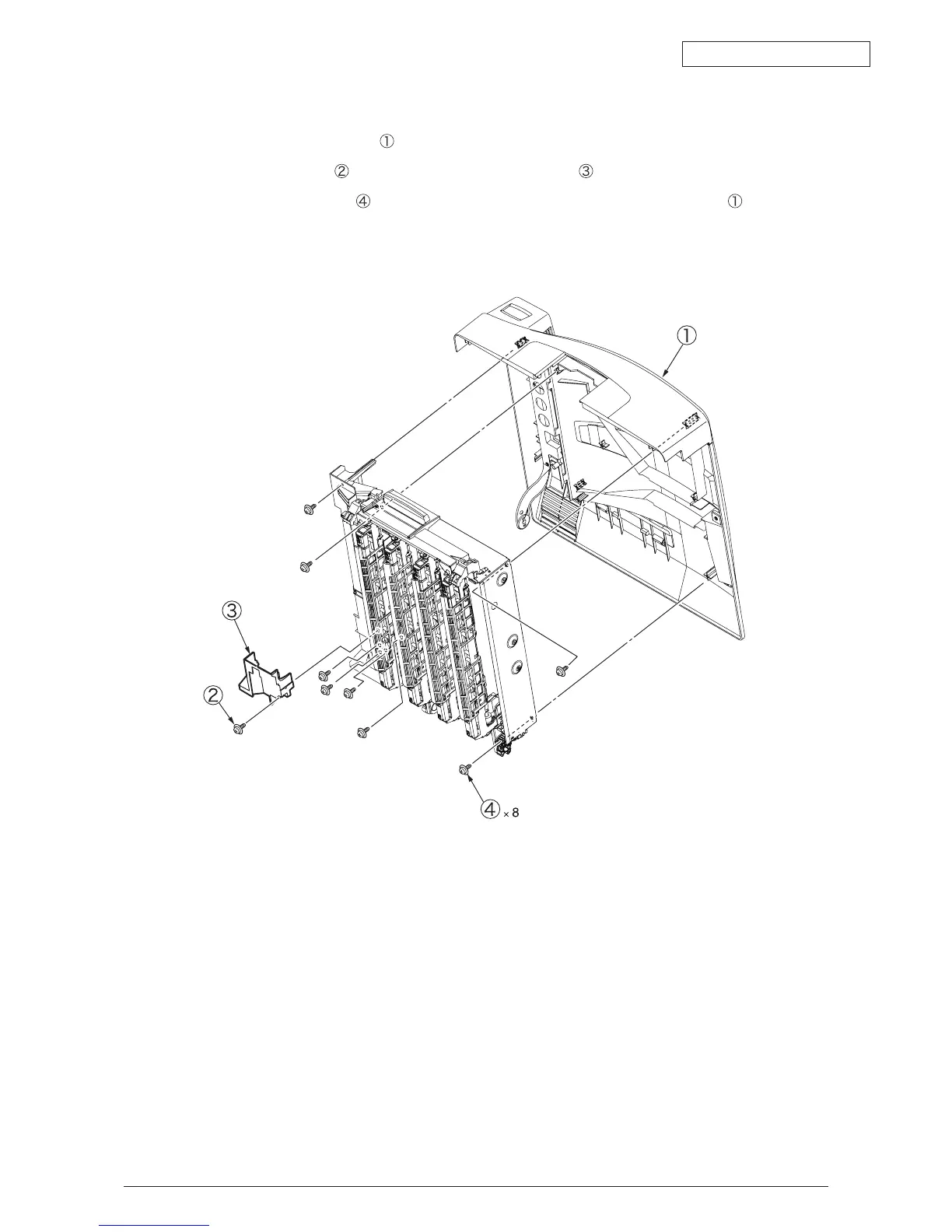

4.3.6 Cover Assy-Top

(1) Open Cover Assy-Top

(2) Unscrew screw

, then remove the Cover-Duct (L) .

(3) Unscrew 8 screws

, then remove the 3 hinges and the Cover Assy-Top .
