Oki C910 - Belt-Assy

To Next Page

To Previous Page

Oki Data CONFIDENTIAL

44043511TH Rev.2

128 /

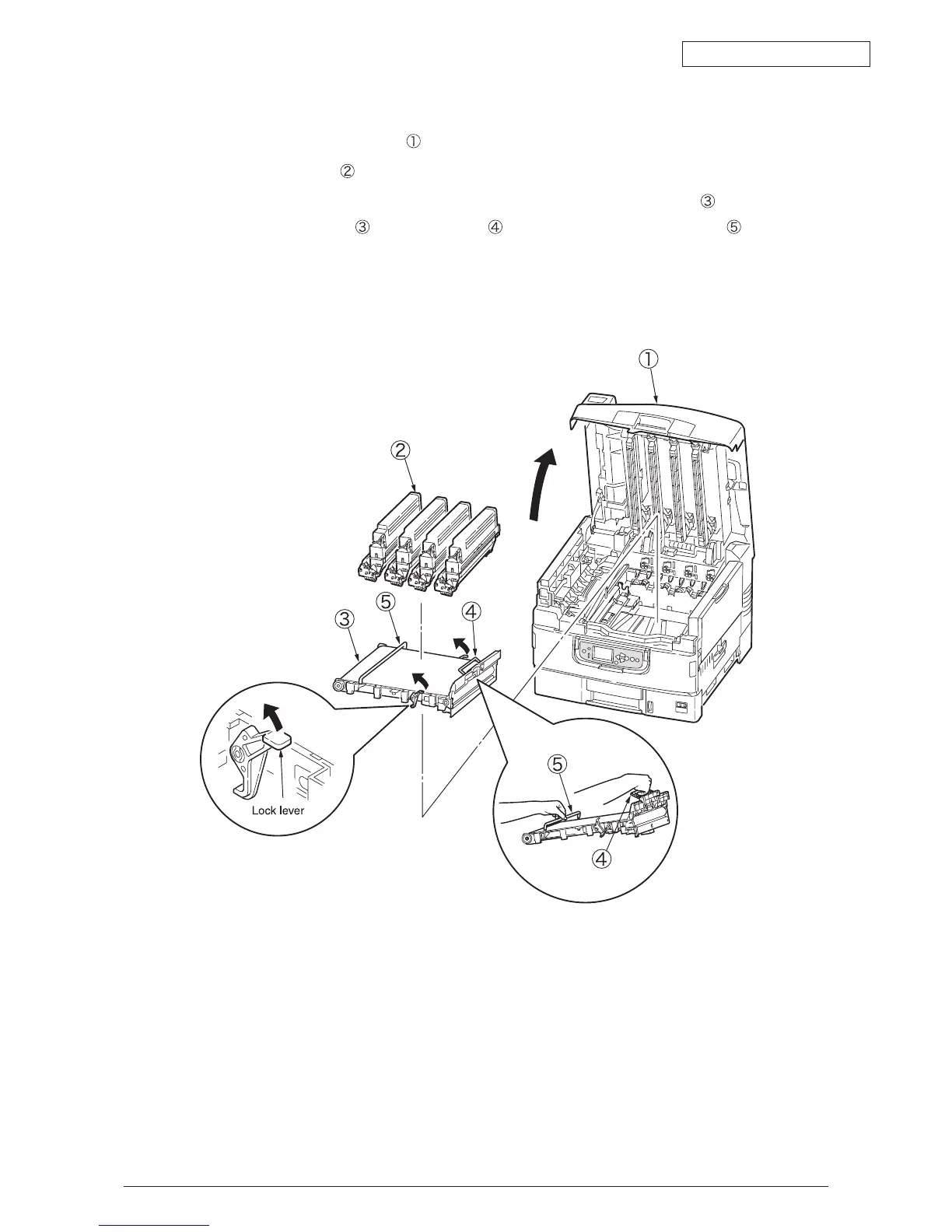

4.3.18 Belt-Assy

(1) Open the Cover Assy-Top

(2) Remove ID Unit

(3) Lift up the 2 lock levers toward the arrow, then remove the Belt-Assy

Remove Belt-Assy by lifting handle , then remove along with handle .
