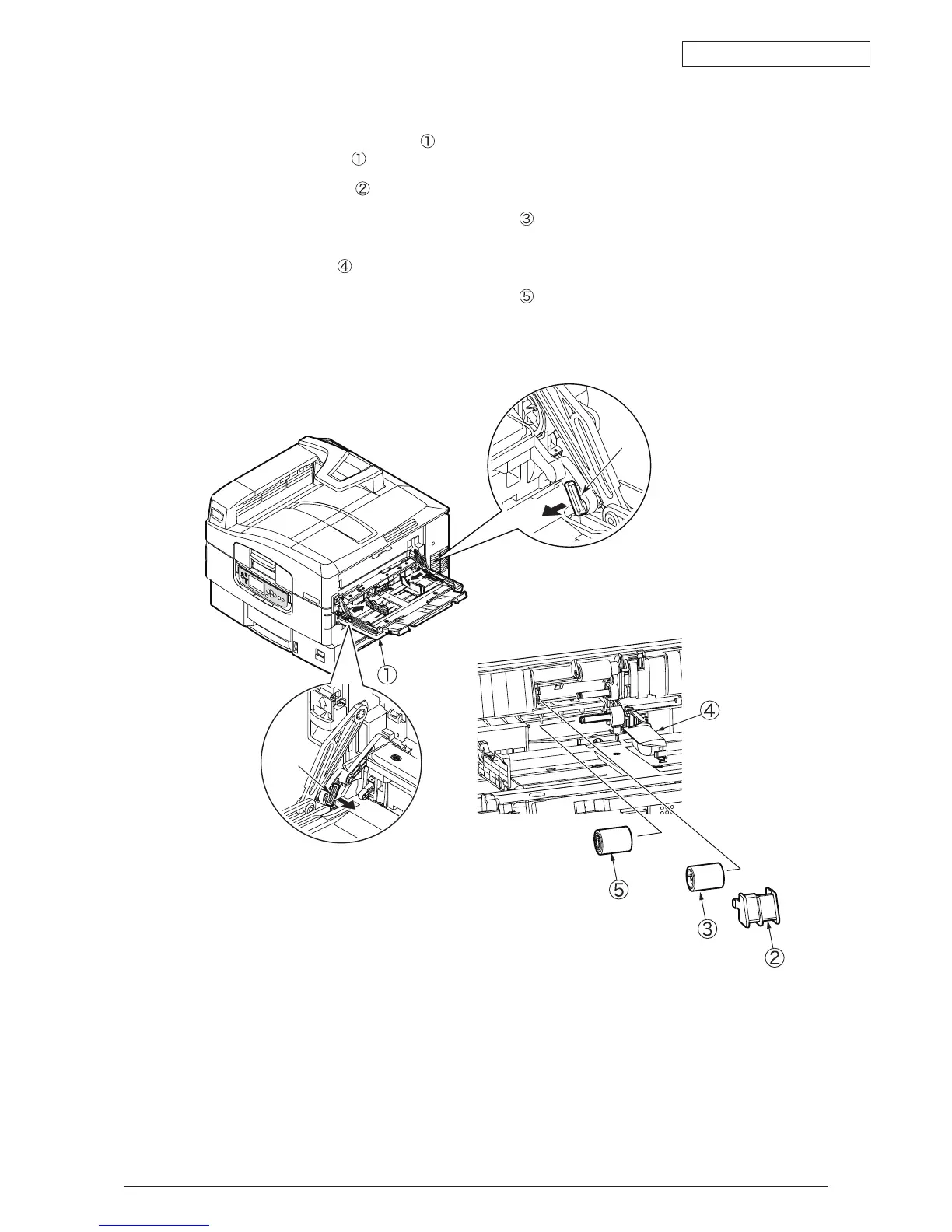

4.3.22 MPT Feed Roller
(1) Open the Multipurpose Tray
, push the lever in the arrow direction and remove the
Multipurpose Tray .
(2) Remove the cover
.
(3) While opening the claw of the Feed Roller
outward, slide the roller to the left and
remove it.
(4) Open the cover
.
(5) While opening the claw of the Feed Roller
outward, slide the roller to the left and
remove it.
Lever
Lever
