Oki Data CONFIDENTIAL

44043511TH Rev.2

120 /

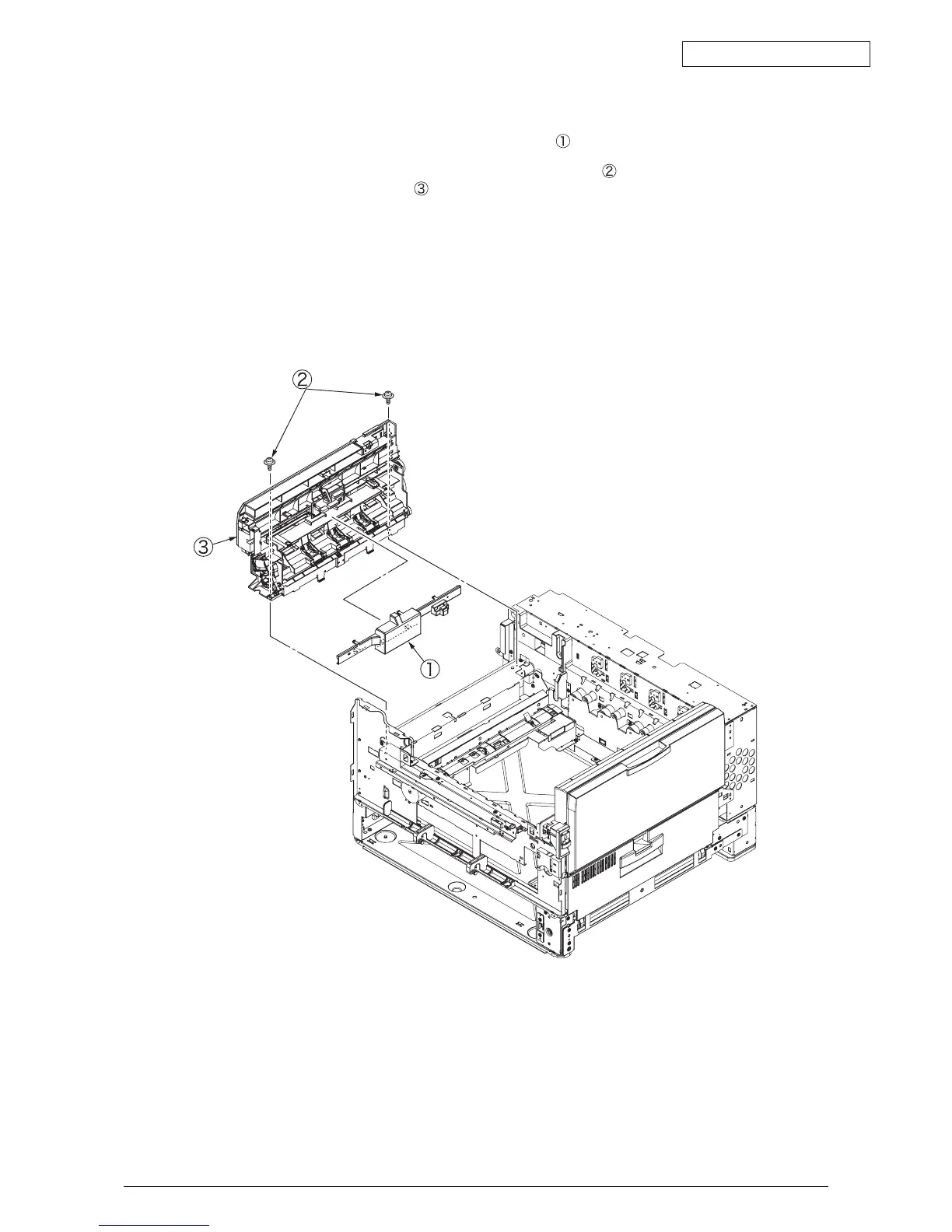

4.3.10 Eject-Assy

(1) Remove the 7 hinges then remove Cover-Board

(2) Remove the 13 connectors, and unscrew the 2 screws

. Then remove the 3 hinges

and remove the Eject-Assy .
