3.5 Assembly Procedure
3.5.1 Printer Main Body
Protection tape
(2 places)
Protection tape
(4 places)
Desiccant
Pad-Guard-Stacker
(2) Press down the open button to open the top cover.
(3) Pull out the protective equipment (8 places) and remove protection tapes.
(4) Remove the paper cassette.
(5) Remove the protective equipment inside the paper cassette.
Protective equipment
Protective equipment (4 places)
Protective equipment
(4 places)
Protection tape
Protection tape
Remove Protective Equipment

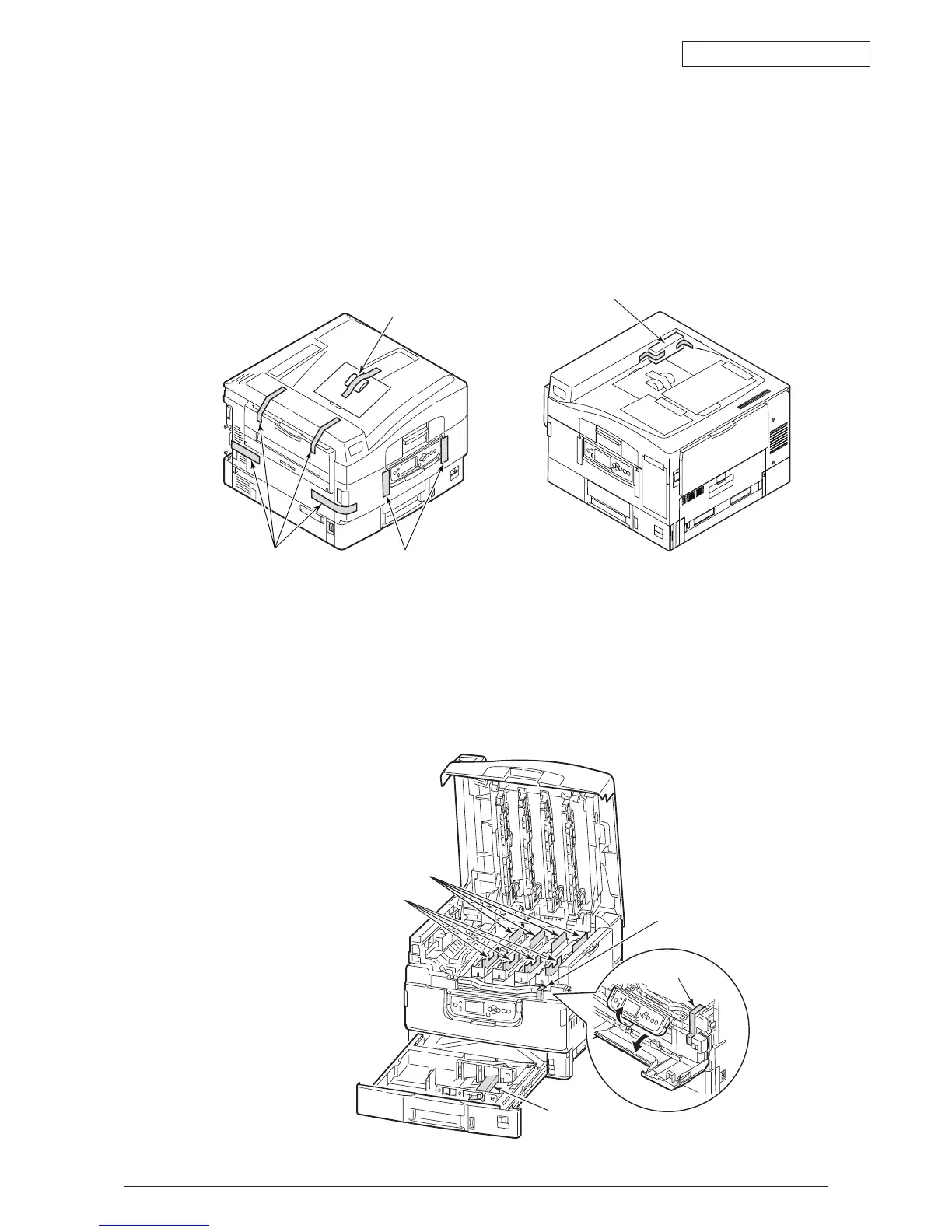

(1) Remove protection tapes on the side of printer (6 places), a sheet of paper, desiccant and
Pad-Guard-Stacker on the top.
