(2) Paper Supplied from the Option Tray
1. Paper proceeds when the paper supply motor turns (CCW) and the paper sup
-
ply clutch is connected, until the IN sensor of the top tray to supply the paper,
turns ON.
2. When the IN sensor is turned ON, a certain volume of paper is further trans
-
ported against the regist roller. (this corrects paper skew)
3. The paper is conveyed to the C910 when the electromagnetic clutch which deliv
-
ers power that the register strike motor is turning (CW) and the thrust reliance of
a paper is completed to the 1st register strike roller is connected.

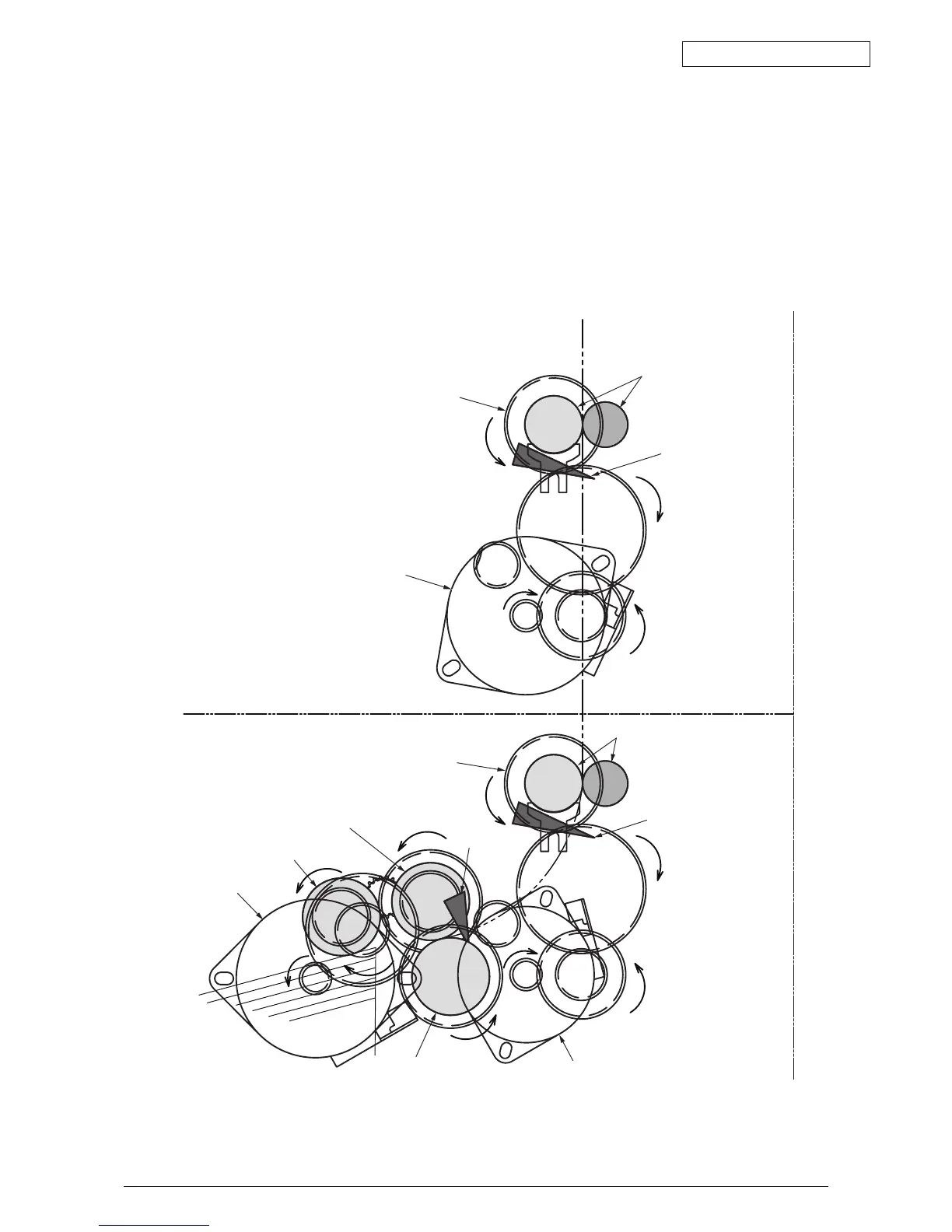

Figure 2-6
