Oki C9800hdn Color Guide

2
2-41 Using Calibrator
C9800 Color Guide - 41

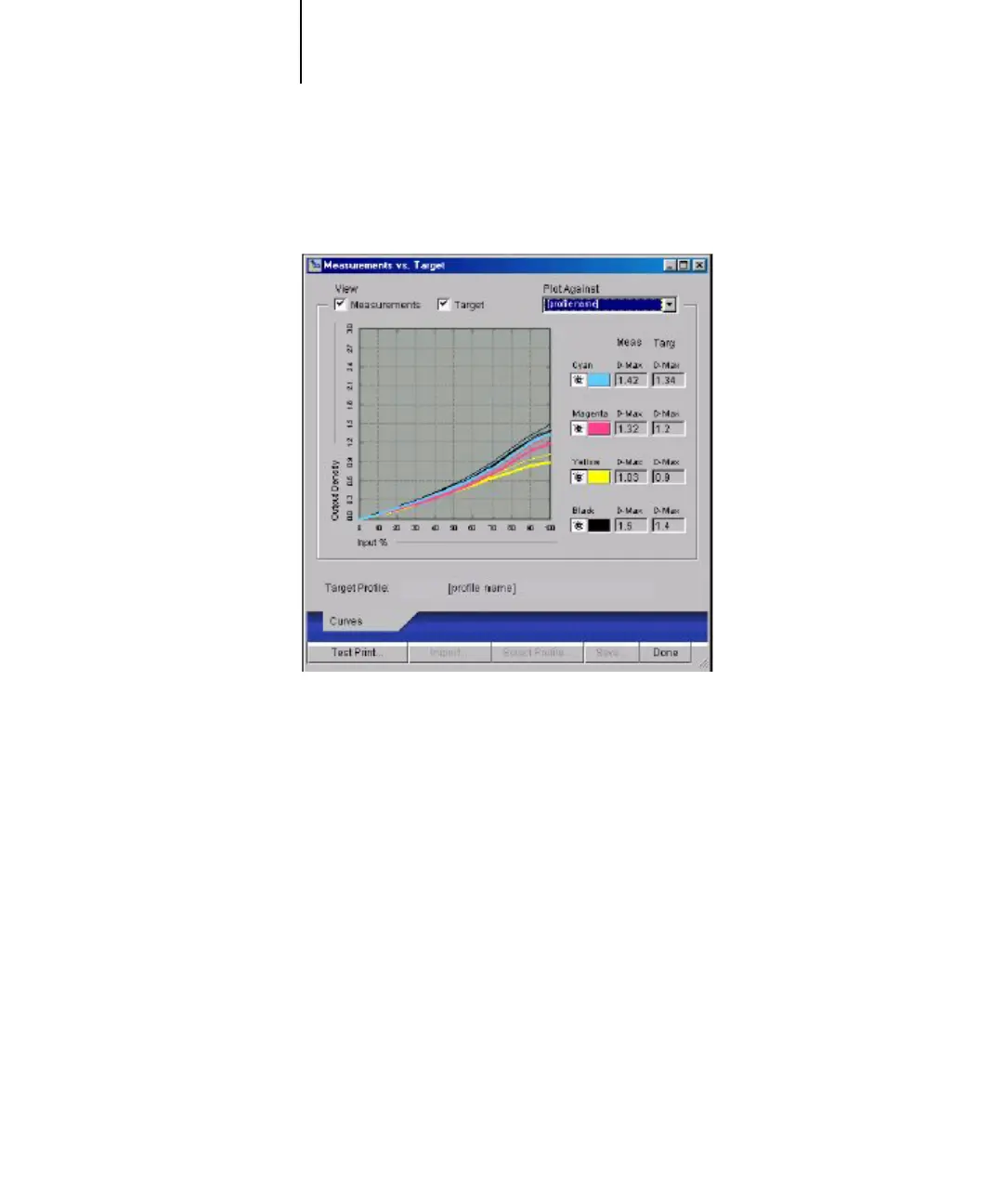

With the View Measurements option, you can view the current set of measurements as
a table or graph that shows both the measurements and the target curves.
When more than one profile uses the same target, an additional menu called Plot
Against appears in the upper-right corner of the dialog box. It lists all output profiles
that use that same calibration set. Selecting an output profile from this menu displays
the target curves associated with that profile. If each output profile contains a unique
calibration target, the curves displayed also change when you switch profiles.
Restoring default calibration measurements
The C9800 is shipped with default calibration measurements. You can use these
measurements to achieve acceptable color without calibration. If the measurement
device you use does not produce acceptable color, you can easily return to the default
measurements.

Oki C9800hdn Specifications

Performance

print speed color	36 ppm
print speed mono	40 ppm
time to first page color	10.5 sec
time to first page mono	9 sec
warm-up time	110 sec
resolution	1200 x 1200 dpi
processor	1 GHz
duty cycle	150, 000 pages/month

Memory

standard ram	1, 024 MB
flash memory	4 MB
hard disk drive	20 GB

Paper Handling

standard input	760 sheets
optional input	2nd/3rd universal tray (530 sheets each)
maximum capacity	2, 880 sheets
paper sizes supported	up to 12.9" by 47.24"
paper weight trays 1-5	17 lb.–57.5 lb. bond
duplex printing	standard on C9800hdn

Power and Acoustic Noise

power consumption typical	750W
power consumption peak	1500W
power consumption idle	200W
acoustic noise operating	54dB(A)

Weight and Dimensions

size	25.8" x 24.4" x 18.2"
weight	152 lb.
