Oki C9800hdn Color Guide

A
A-91 Color Measurement Instruments
C9800 Color Guide - 91
Using the X-Rite DTP32 densitometer
ColorWise Pro Tools are designed to work with the X-Rite DTP32 reflection
densitometer, which feeds color measurements to the Fiery automatically.
NOTE: Measurements from other densitometers can be input using a simple ASCII file
format (see Appendix B).
Setting up the DTP32
Before you calibrate the Fiery using the X-Rite DTP32, you need to connect,
configure, and calibrate the densitometer to prepare for measuring the printed patches
(see “Calibrating the DTP32” on page A-93). For additional information about setting
up and using the DTP32, see the separate documentation included with the
densitometer.
TO CONNECT THE X-RITE DTP32 TO THE COMPUTER
1. Turn off the computer.

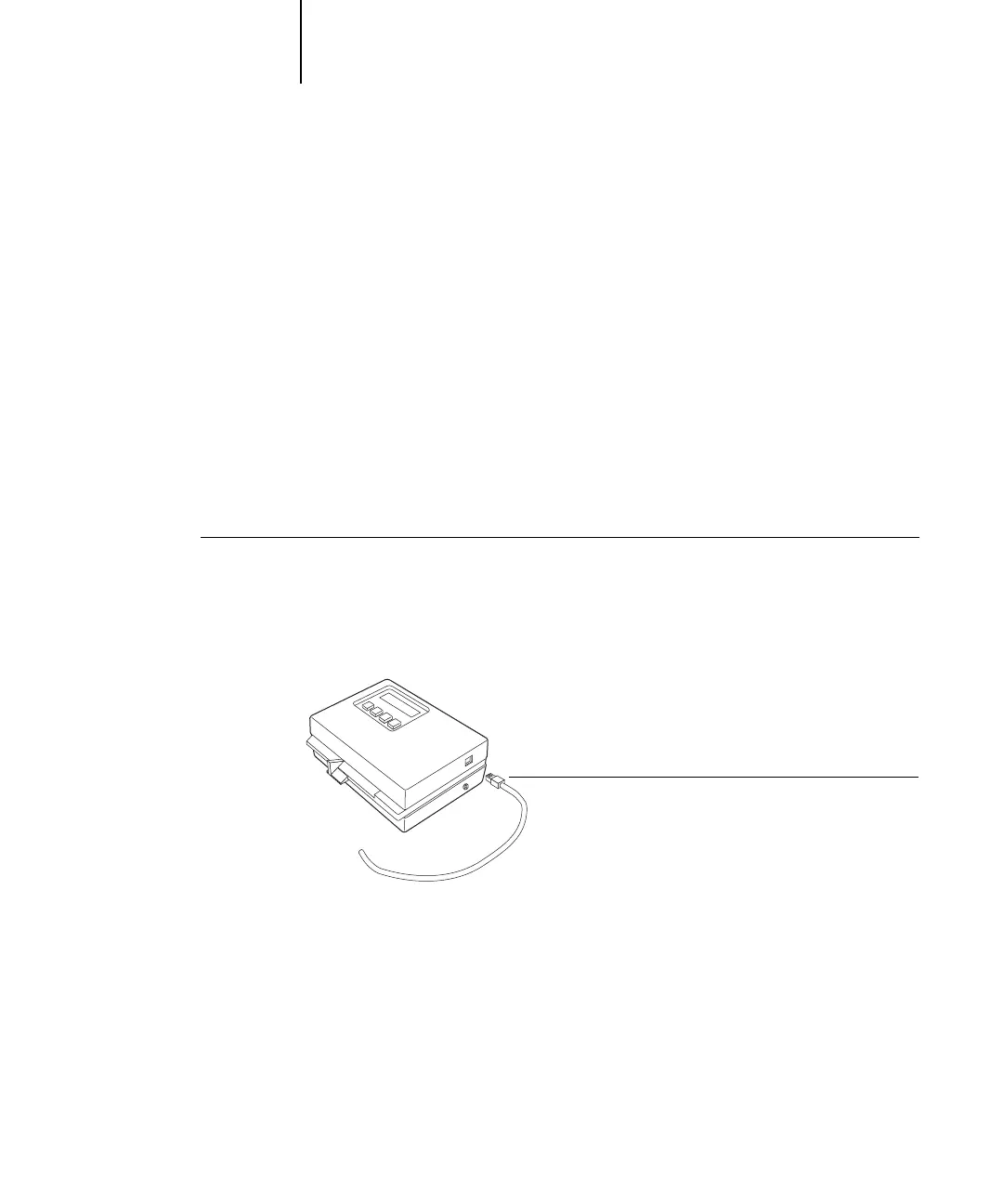

2. Plug the square end of the interface cable (looks like a modular phone plug) into the
I/O port on the side of the X-Rite DTP32.
Square connecto
r

Oki C9800hdn Specifications

Performance

print speed color	36 ppm
print speed mono	40 ppm
time to first page color	10.5 sec
time to first page mono	9 sec
warm-up time	110 sec
resolution	1200 x 1200 dpi
processor	1 GHz
duty cycle	150, 000 pages/month

Memory

standard ram	1, 024 MB
flash memory	4 MB
hard disk drive	20 GB

Paper Handling

standard input	760 sheets
optional input	2nd/3rd universal tray (530 sheets each)
maximum capacity	2, 880 sheets
paper sizes supported	up to 12.9" by 47.24"
paper weight trays 1-5	17 lb.–57.5 lb. bond
duplex printing	standard on C9800hdn

Power and Acoustic Noise

power consumption typical	750W
power consumption peak	1500W
power consumption idle	200W
acoustic noise operating	54dB(A)

Weight and Dimensions

size	25.8" x 24.4" x 18.2"
weight	152 lb.
