2-54 Color Calibration
C9800 Color Guide - 54

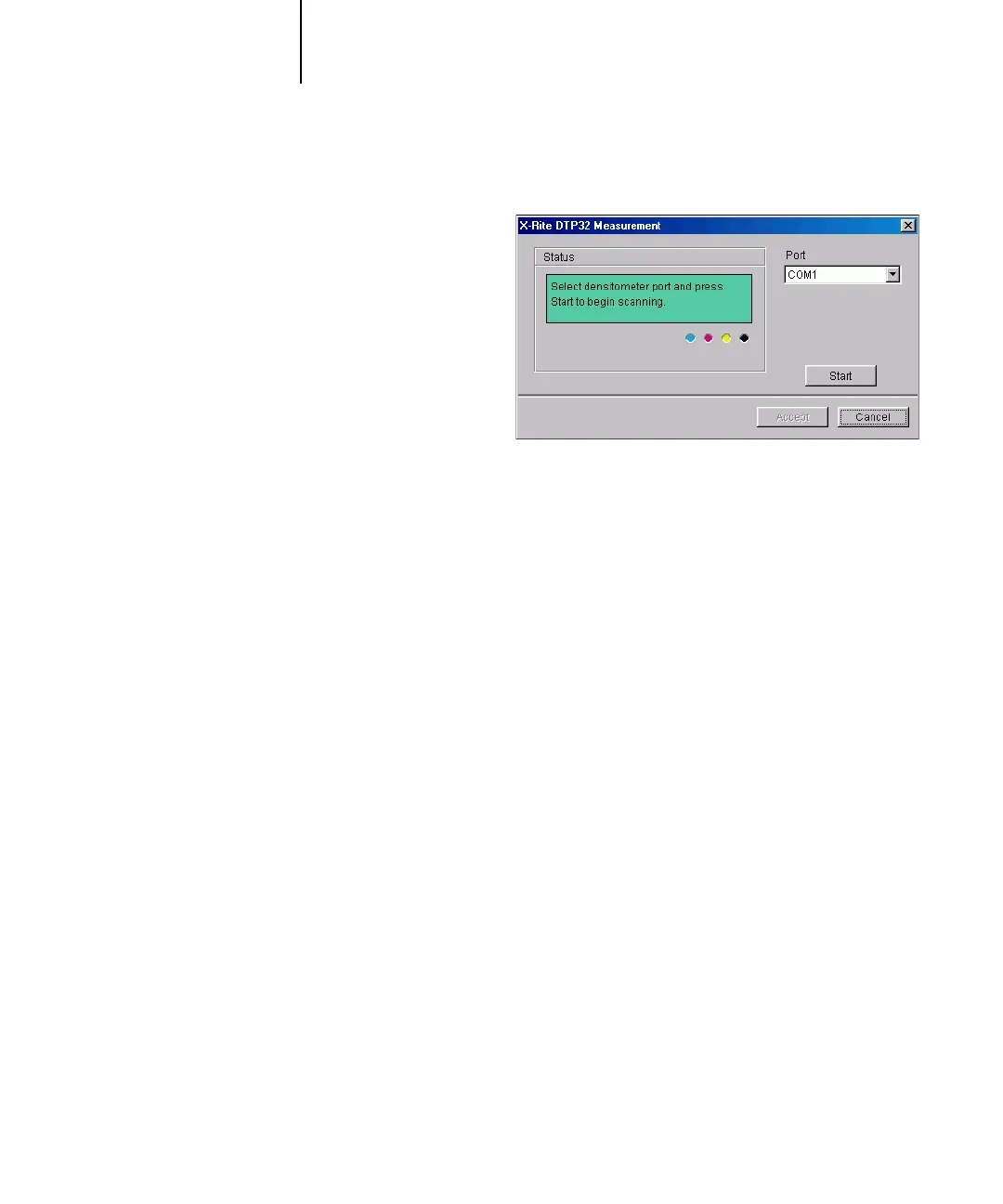

8. Click Measure.
In the dialog box that
appears, follow the
directions for feeding the
measurement page through
the X-Rite DTP32.
The Status field displays
instructions for selecting the
port and feeding the
measurement page through
the DTP32 four times, once
for each color strip.
9. When the Status field indicates that the measurements were read successfully, click
Accept.
10. Click OK in the Measure dialog box.
11. Click Apply in the Calibrator window to implement the new calibration set.
12. Click OK in the Information dialog box.
This completes the Fiery calibration process.
