Oki ES7470 series User Manual

- 17 -

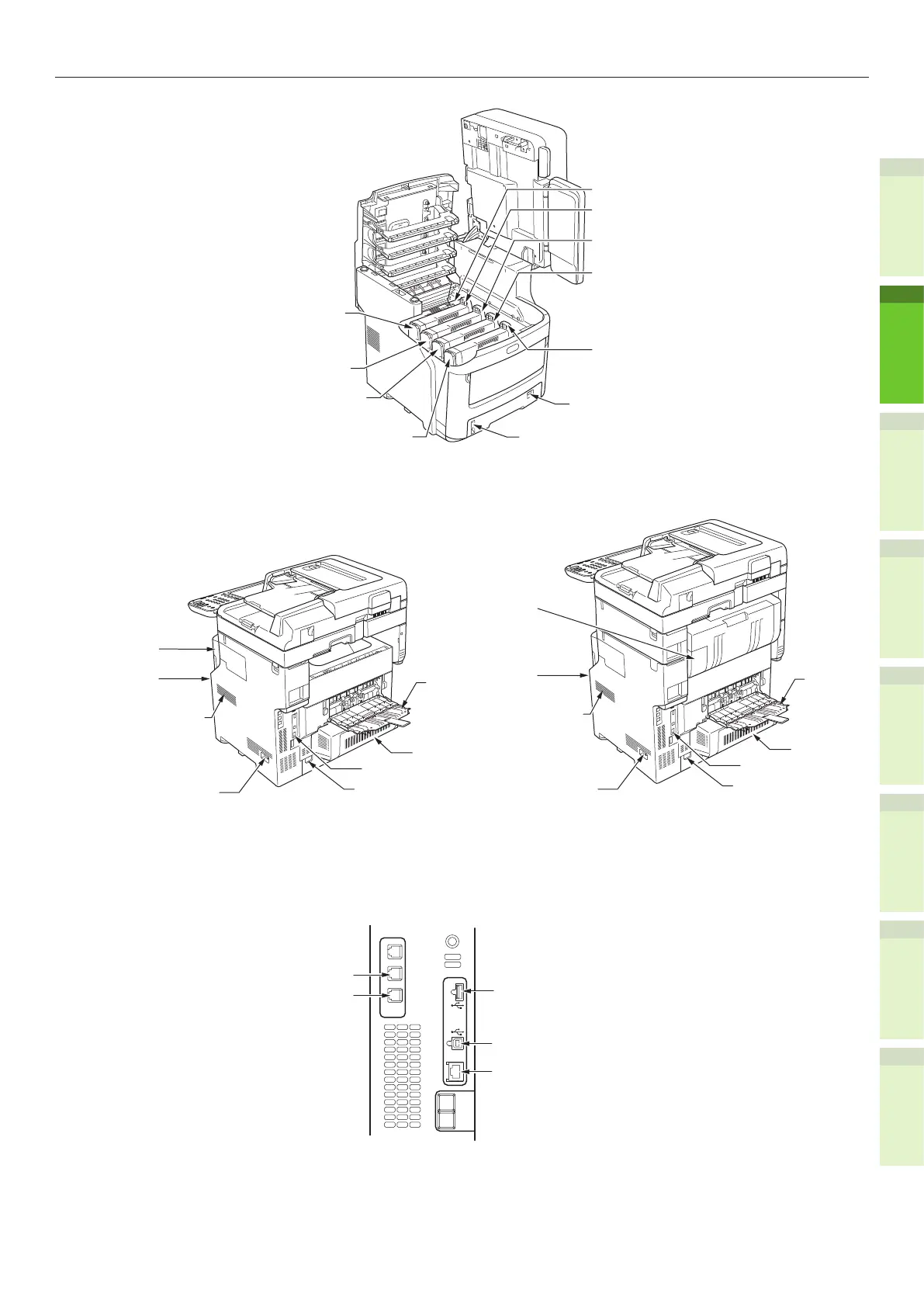

Name and Function of Each Part
1
2
4
5
6
3
Image Drum Cartridge
(C: Cyan (Blue))
Image Drum Cartridge
(M:Magenta) (Red))
Image Drum Cartridge
(Y:Yellow (Yellow))
Image Drum Cartridge
(K:Black (Black))
Paper Remaining Indicator
Paper Size Dial
Toner Cartridge
(Y:Yellow (Yellow))
Toner Cartridge
(C:Cyan (Blue))
Fuser Unit
Toner Cartridge
(K:Black (Black))
Toner Cartridge
(M:Magenta) (Red))
USB Port
Vent
Power Switch
Power Connector
Interface Part
Duplex
Printing Unit
Faceup
Stacker
Ofine Stapler
(when installing
the ofine stapler)
USB Port
Vent
Power Switch
Power Connector
Interface Part
Duplex
Printing Unit
Faceup
Stacker
Inline
Stapler
<Interface Part>
ACC
TEL Connector
USB Interface Connector
LINE Connector
Network Interface Connector
(1000/100/10BASE)
LINE
TEL
HANDSET
LINE
COIN

Oki ES7470 series Specifications

General

Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Fax Modem Speed	33.6 kbps
Functions	Print, Copy, Scan, Fax
Duplex Printing	Yes
Maximum Paper Size	A3
Processor Speed	800 MHz
Print Resolution	1200 x 1200 dpi
Scan Type	Color Flatbed Scanner
Fax Transmission Speed	Approx. 3 seconds per page
Connectivity	USB 2.0, Ethernet 10/100/1000 Base-TX
Mobile Printing	AirPrint, Google Cloud Print
Operating System Compatibility	Windows, Mac OS
