Oki MC332dn Startup Guide

- 10 -
1
Machine Setup
1 Machine Setup
This chapter explains the initial setup for the machine, including the names of the machine
components, how to unpack and install the machine, how to turn on/off the machine, and how to load
paper into tray 1.

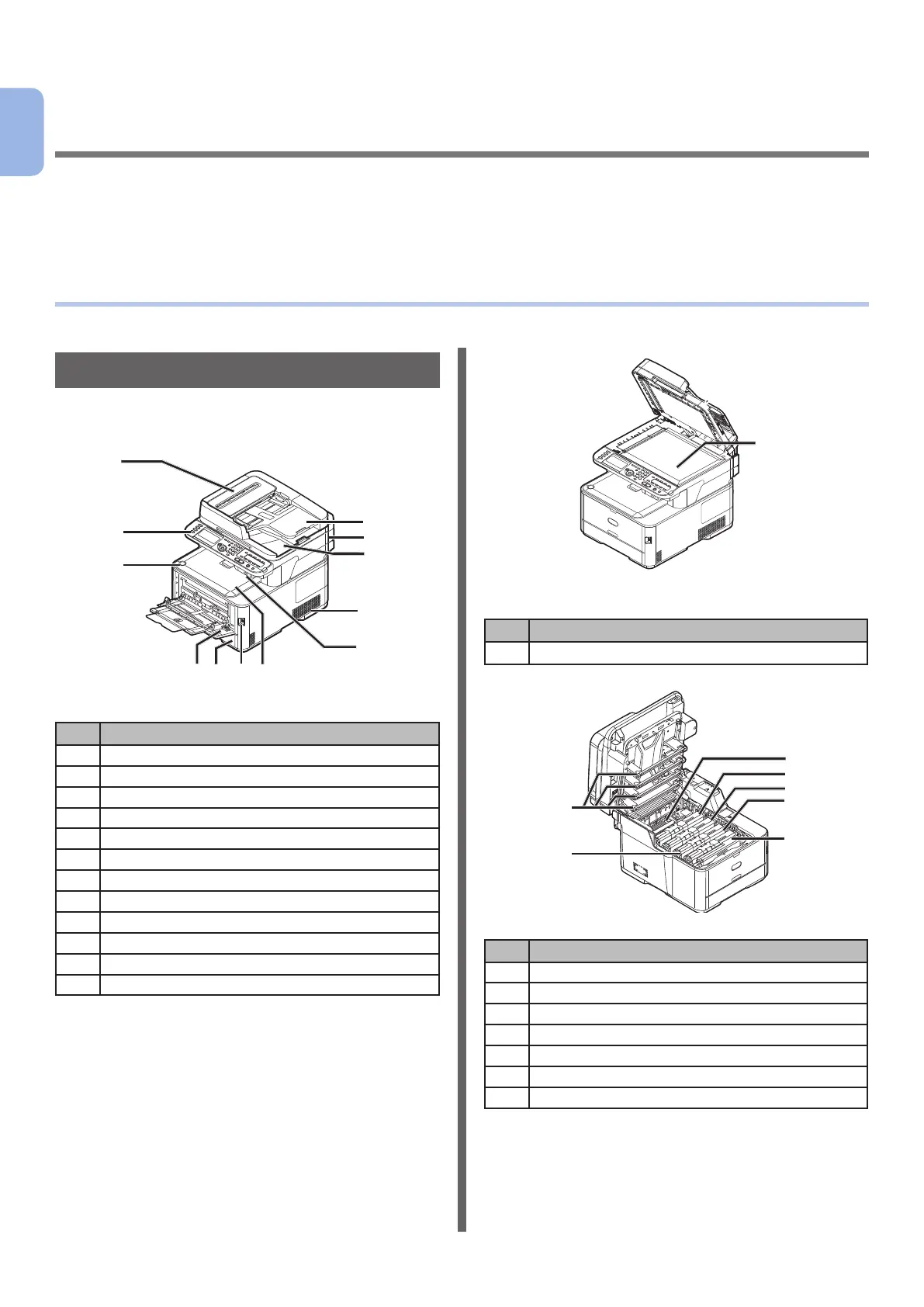

●● Names of Components
This section shows the names of the components of the machine and operator panel.
Machine
The following shows the names of the machine
components.
2
1
11
10
9
8
7
6
5
4
3
12
No. Name
1 Top cover
2 Power switch
3 Tray 1
4 Multipurpose (MP) tray
5 Top cover open button
6 Operator panel
7 Auto document feeder (ADF) cover
8 Document tray
9 Scanner unit
10 Document glass cover
11 Air vents
12 USB port
13
No. Name
13 Document glass
18
20
19
No. Name
14 Fuser unit
15 Toner cartridge (Y: yellow)
16 Toner cartridge (M: magenta)
17 Toner cartridge (C: cyan)
18 Toner cartridge (K: black)
19 Image drum unit
20 LED head (four heads)
16
15
17
14

Oki MC332dn Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	- DPI
Print speed (black, normal quality, A4/US Letter)	22 ppm
Print speed (color, normal quality, A4/US Letter)	20 ppm
All-in-one functions	Copy, Print, Scan
Color all-in-one functions	Scan
Digital sender	No
Maximum duty cycle	30000 pages per month
Page description languages	PCL 5c, PCL 6, PostScript 3, SIDM
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
Time to first copy (black, normal)	12 s
Time to first copy (color, normal)	14 s
Copy speed (black, normal quality, A4)	20 cpm
Copy speed (color, normal quality, A4)	22 cpm
Scan to	CIFS, E-mail, USB
Input color depth	48 bit
Output color depth	24 bit
Scan speed (black)	30 ppm
Optical scanning resolution	1200 x 1200 DPI
Total input capacity	250 sheets
Maximum input capacity	350 sheets
Multi-Purpose tray input capacity	100 sheets
Auto document feeder (ADF) input capacity	50 sheets
Envelopes sizes	9, DL
Maximum print size	216 x 297 mm
Duplex media weight	60 - 90 g/m²
Paper tray media types	Envelopes
Paper tray media weight	64 - 176 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	64 - 220 g/m²
Auto Document Feeder (ADF) media weight	60 - 105 g/m²
Display	LCD
Product color	White
Display resolution	320 x 128 pixels
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	2
Internal memory	256 MB
Sound power level (standby)	52 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (average operating)	500 W
Operating temperature (T-T)	10 - 32 °C
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	509 mm
Width	427 mm
Height	444 mm
