Oki MC342dn User Manual

Maintenance > 124
I MAGE DRUM REPLACEMENT
The image drum assembly comes complete with its own installation details which give full
instructions on replacement. You are advised to follow these instructions carefully.
R EPLACING THE TRANSFER BELT UNIT
The belt unit is located under the image drum assembly.
Switch off the MFP and allow the fuser to cool for about 10 minutes before opening the
cover. Refer to “Turning off your machine” on page 21 for details.

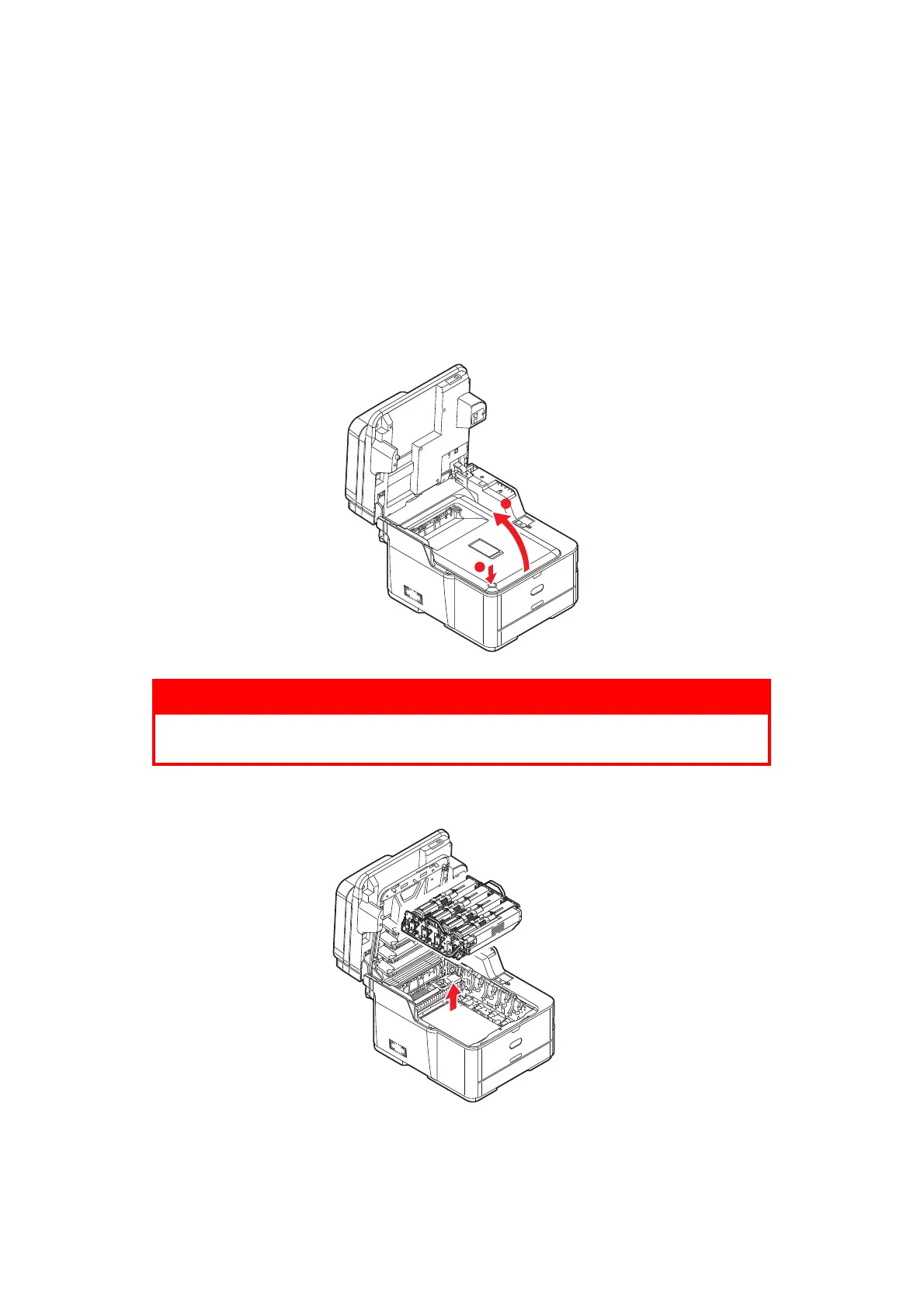

1. Gently raise the scanner.
2. Press the cover release (a) and open the top cover (b) fully.
3. Holding it by its handles, lift the image drum assembly, complete with toner
cartridges, up and out of the printer.
WARNING!
If the MFP has been powered on, the fuser will be hot. This area is
clearly labelled. Do not touch.
a
b

Oki MC342dn Specifications

General

Print technology	LED
Maximum resolution	- DPI
Time to first page (black, normal)	8.5 s
Time to first page (color, normal)	9 s
Print speed (black, normal quality, A4/US Letter)	22 ppm
Print speed (color, normal quality, A4/US Letter)	20 ppm
Copier resize	20 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	99 copies
Time to first copy (black, normal)	12 s
Time to first copy (color, normal)	14 s
Copy speed (black, normal quality, A4)	19 cpm
Scan to	CIFS, E-mail, FTP, USB
Input color depth	48 bit
Output color depth	24 bit
Scan speed (black)	30 ppm
Image formats supported	JPEG XR
Document formats supported	PDF
Optical scanning resolution	1200 x 1200 DPI
Faxing	Mono faxing
Fax memory	4 MB
Modem speed	33.6 Kbit/s
Fax transmission speed	3 sec/page
Digital sender	-
Maximum duty cycle	30000 pages per month
Page description languages	Epson FX, PCL 5c, PCL 6, PostScript 3, SIDM
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	350 sheets
Multi-Purpose tray input capacity	100 sheets
Paper tray media types	Envelopes
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
ISO C-series sizes (C0...C9)	C5
Maximum ISO A-series paper size	A4
Control type	Touch
Product color	Gray
Display resolution	320 x 128 pixels
Market positioning	Business
Standard interfaces	USB 2.0
USB 2.0 ports quantity	2
Wi-Fi	No
Supported network protocols (IPv4)	SMTP, POP3, HTTP, SNMPv1&v3, DHCP, DNS, LPR, Port9100, BOOTP, ARP, FTP, CIFS, LDAP, SLP, Bonjour, NetWare, EtherTalk, NetBEUI, LLTD, Web Service on Devices
Internal memory	256 MB
Maximum internal memory	768 MB
Sound power level (standby)	33 dB
Sound pressure level (copying)	52 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.5 W
Power consumption (standby)	1.5 W
Power consumption (PowerSave)	20 W
Power consumption (average operating)	500 W
Mac operating systems supported	Mac OS X 10.3 Panther, Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Depth	509 mm
Width	427 mm
Height	444 mm
