42113901TH01 Rev.3 25 /
Oki Data CONFIDENTIAL

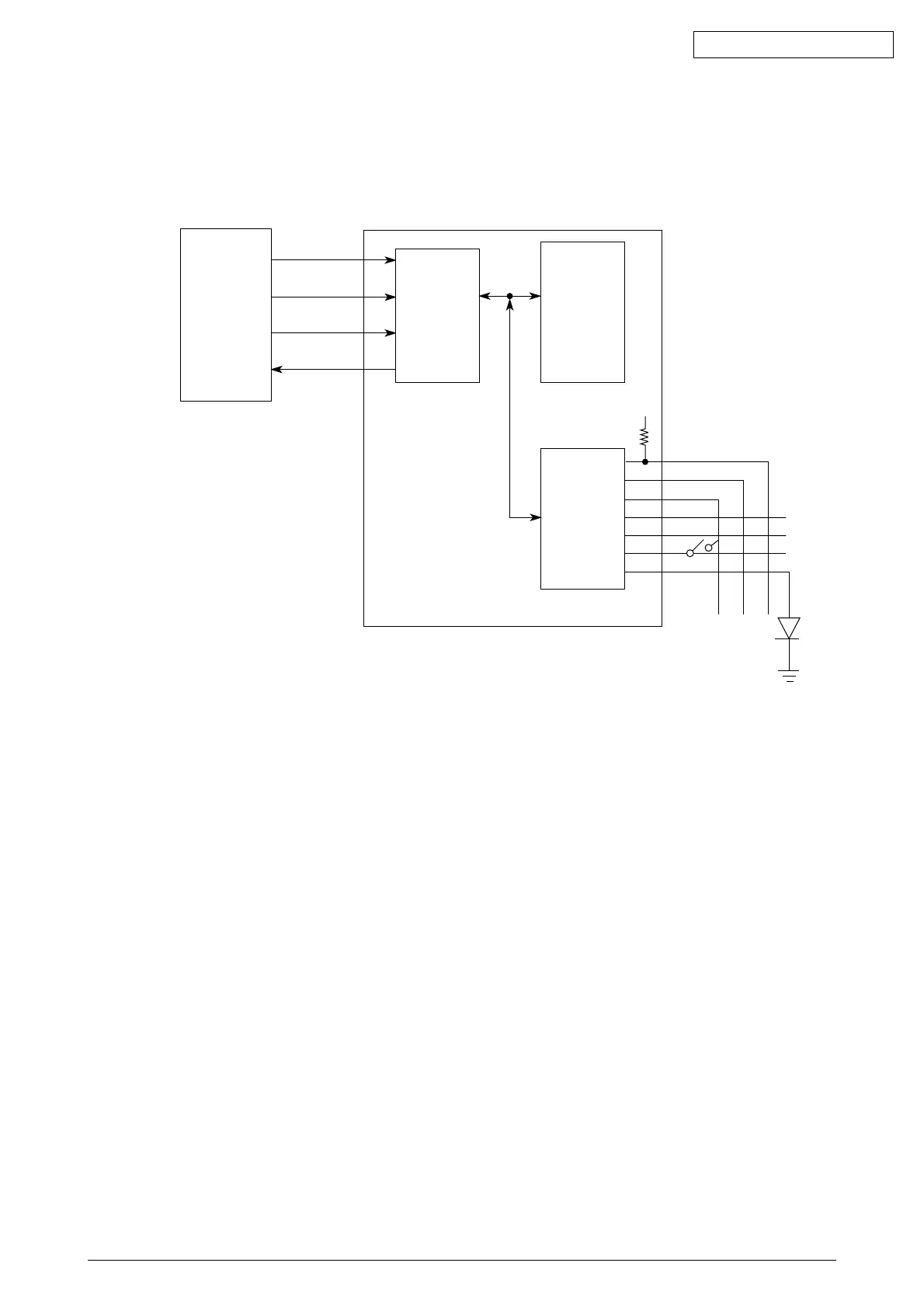

LSI Operation panel control IC
OPTXD
OPCLK
OPCLR-N
OPRXD
48
47
45
OPTD
OPCK
NPA2
OPRD
Command
and Data
latch
LED driver
Switch
controller
+5V
46
2.1.7 Operation Panel
The clock synchronization OPCLK of LSI is used to input the switch data and output the LED
data through the operation panel control IC.
A 2-byte (15 bits + 1 even parity bit) command (OPTXD) is transmitted to the Operation panel
control IC in synchronization with the OPCLK signal. The Operation panel control IC decodes
this command and when it is found to be legal, returns a 2-byte command response back to
the LSI which includes data on Switch information, LED status, receive command ACK/NAK and
1 odd parity bit.
Any transmission errors found cause the command to be reissued after the transmission of the
OPCLR-N signal.
To Next Page
