Oki ML420 - Space Rack

42113901TH01 Rev.3 64 /
Oki Data CONFIDENTIAL

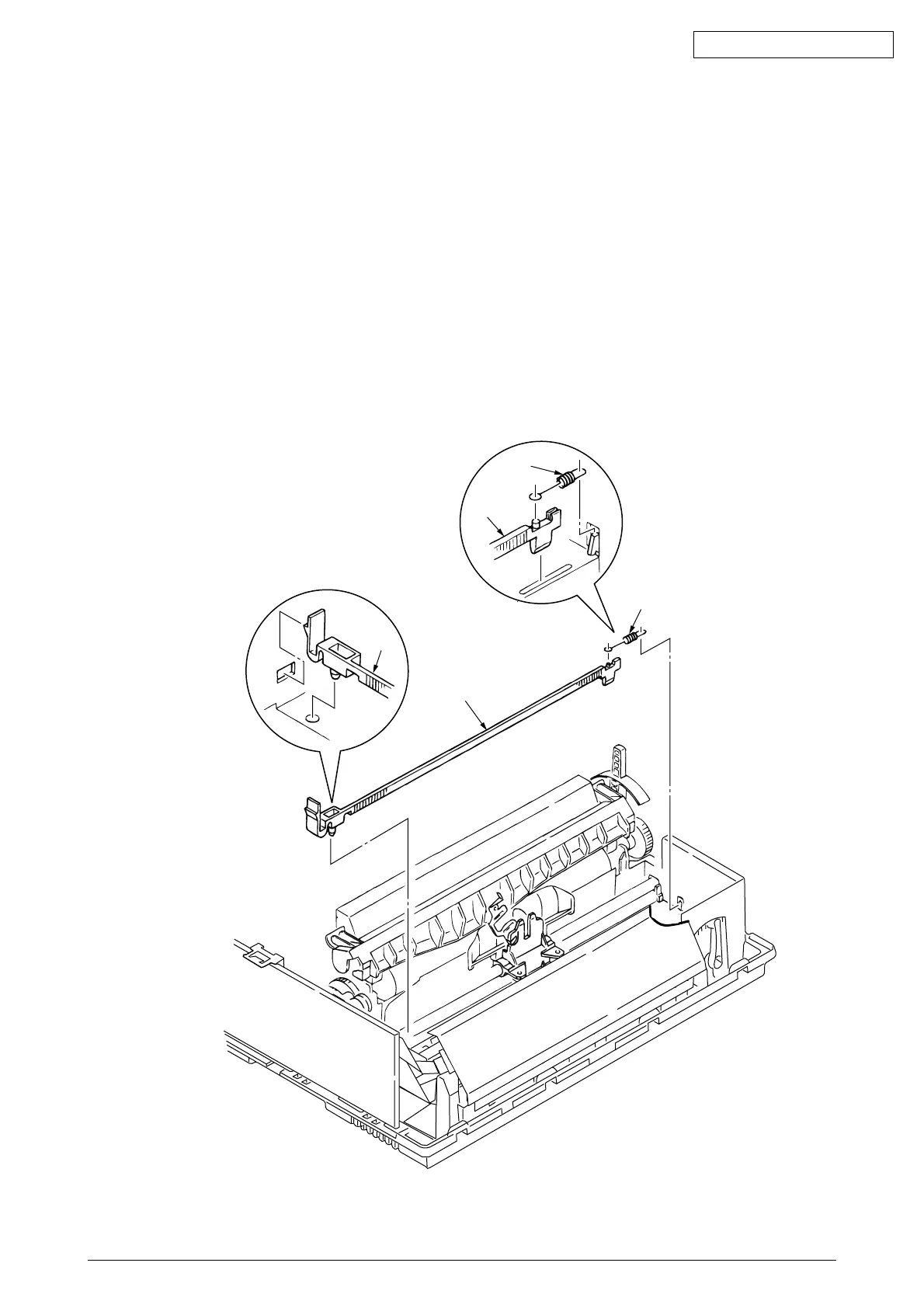

3.3.8 Space Rack
(1) Remove the printhead (see 3.3.1).
(2) Remove the upper cover (see 3.3.4 (1) – (5)).
(3) Remove the gear case Assy (see 3.3.5).
(4) Remove the space motor (see 3.3.7).
(5) Remove the spring 1.
(6) Disengage the claw on left side of space rack 2 from the frame, and remove the space
rack 2 in upper direction.
(7) To install, follow the removal steps in the reverse order.
Note on installation:
(1) After installation, check and adjust the gap between platen and printhead (see 4-1).
2
2
1
1
2
