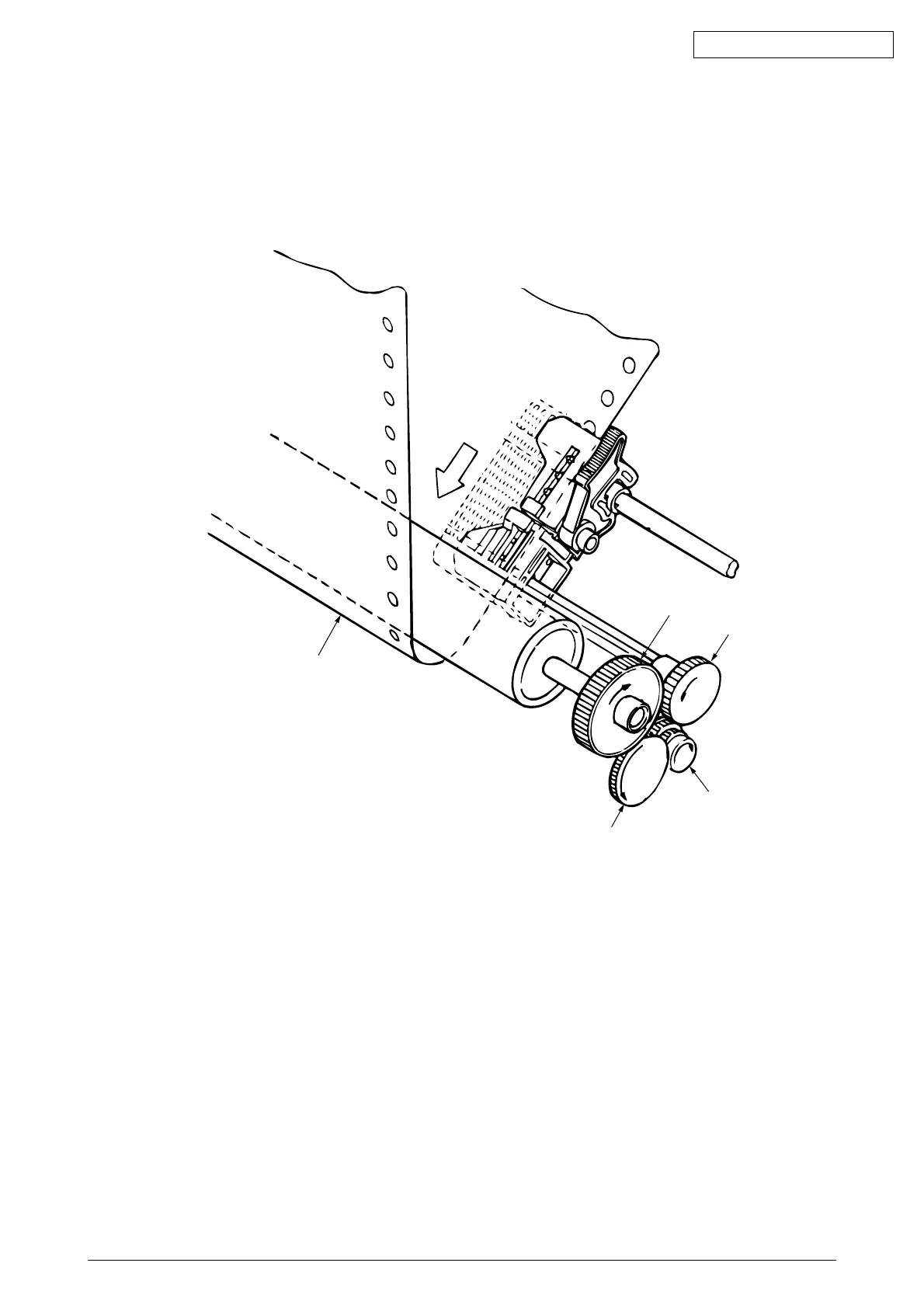

Figure 2-9
(3) Continuous paper feed operation (Rear) (See Figure 2-9.)
The force transmitted to the platen, rotates the tractor gear through platen gear, the idler
gear and the change gear. The rotation of the tractor gear makes the pin tractor belt rotate
through a sheet feeder shaft, feeding the continuous paper.
Paper
Idle gear
Platen gear
Tractor gear
Change gear
