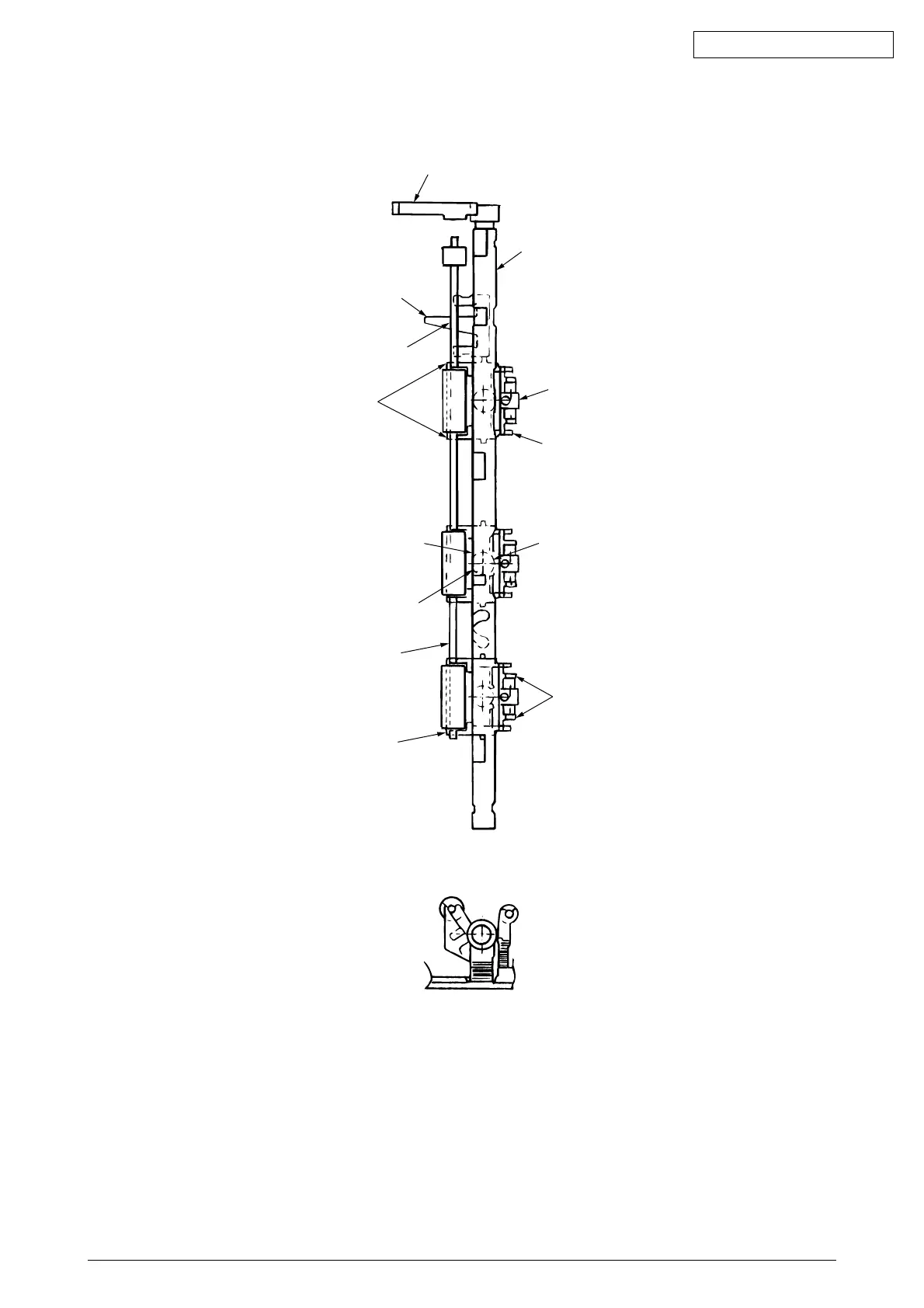

6. Pressure roller
Release shaft protruding
portion - 2 portions
EM-30L-A
Rear roller holder
Shaft
Contact portion of rear
holder and shaft
EM-30L-A
Contact portion of
support spring and shaft
EM-30L-A
Sliding portion of release shaft
and rear roller holder
EM-30L-A
Release shaft
Front pressure roller
Controller holder
Sliding portion of rear roller holder
and release shaft cam surface
(release shaft plane portion)
EM-30L-A
Bearing portion of front roller
holder and pressure roller
EM-30L-B
Change arm
Support spring
