Getting started > 9
G
ETTING
STARTED
R
ETAINING
PACKING
MATERIALS
After setting up your printer according to the instructions in the Set-up Guide, retain your
packing materials and container in case you ever need to ship or transport your printer.
I
DENTIFYING
COMPONENT
PARTS
The main parts of your printer are identified and briefly explained below.
F
RONT
VIEW

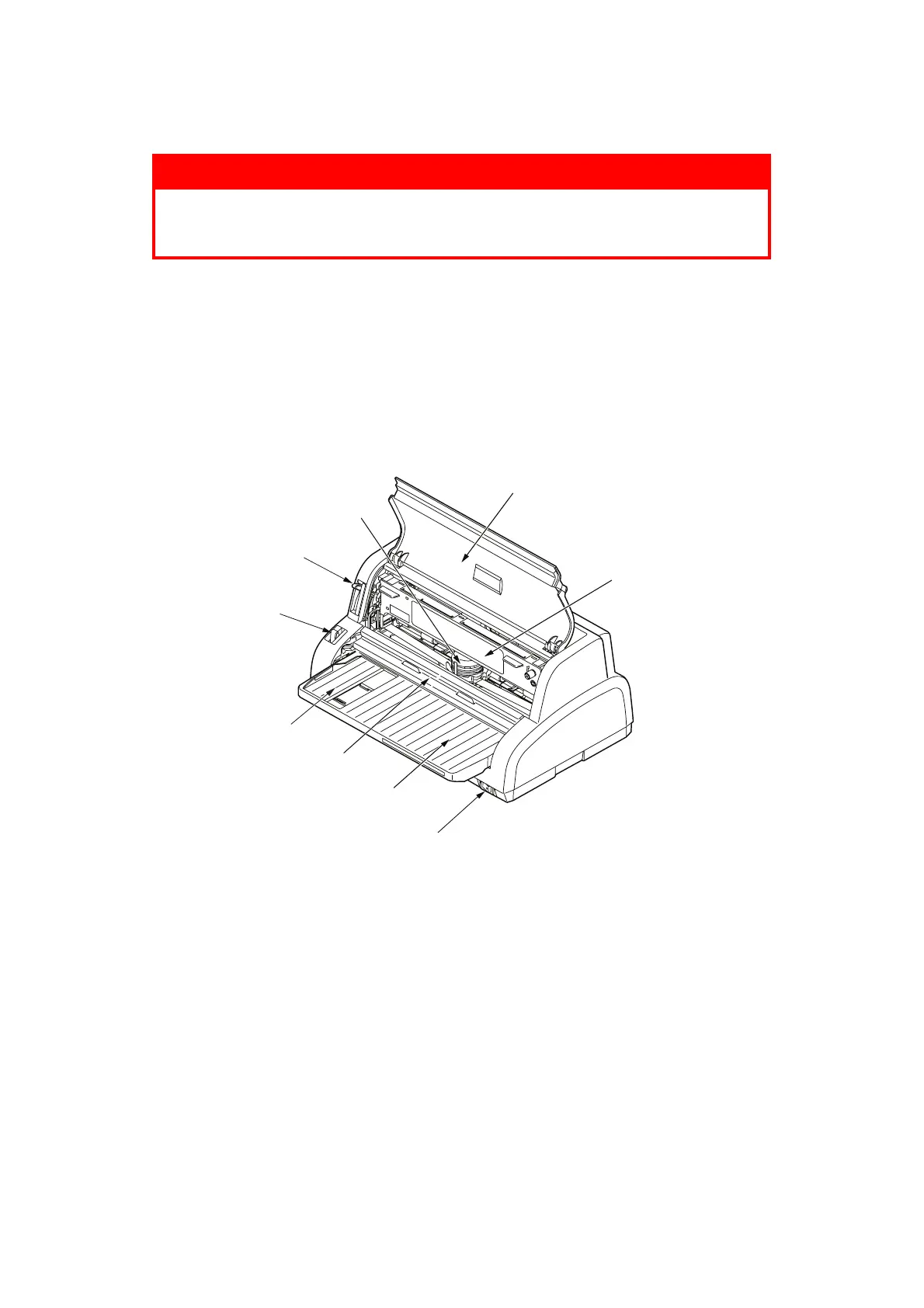

1. Print Head: prints the characters on the paper.
2. Top Cover: open and close for access, for example when changing a ribbon
cartridge. Keep closed for noise reduction.
3. Power Switch: to turn the printer power ON/OFF.
4. Paper Tray: to hold cut sheet paper for use by the printer (one sheet at a time).
5. Paper Guide: can be adjusted as required to locate the left edge of cut sheet paper.
6. Paper Type Lever: set according to the type of paper used – cut sheet or continuous
forms.
7. Paper Thickness Lever: set according to the thickness of the paper.
8. Ribbon Cartridge: holds the printer ribbon.
9. Paper Feed Guide: lift and slide to access print head.
WARNING!
If you have not already done so, familiarise yourself with the
content of the Installation Safety booklet supplied with your
printer.
1
2
3
4
5
6
7
8
9
