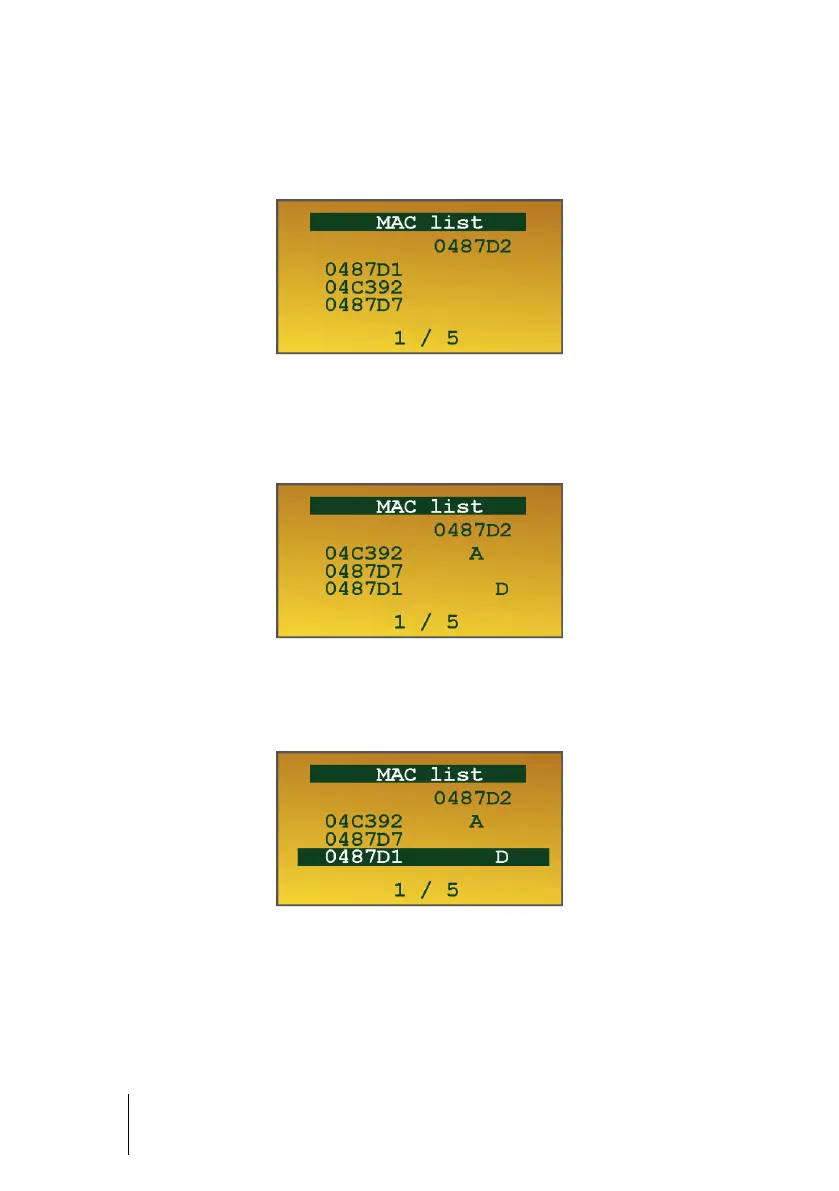

When in the « MAC List » menu, the first address displayed and aligned to the right is
the address of the BM 25W you are currently looking at (here 0487D2). Up to 6 MAC
addresses can be displayed per page.
Figure 33 : List of the MAC addresses present on the network
A BM 25W in gas alarm mode is shown with the status ‘A’ (here, BM 25W with address
No. 04C392 is in alarm). A BM 25W in fault mode (low battery for instance) is shown
with the status ‘D’ (here, BM 25W with address No. 0487D1 is in fault).
Figure 34 : Status of each BM 25W on the network
When a BM 25W is no longer communicating on the network, its address appears in
reverse video. See “SELF-HEALING” parapragh for trouble shooting.
Figure 35 : BM 25W with MAC address No. 0487D1 does not communicate
