Oldham BM25 User Manual

1 – Introduction
13

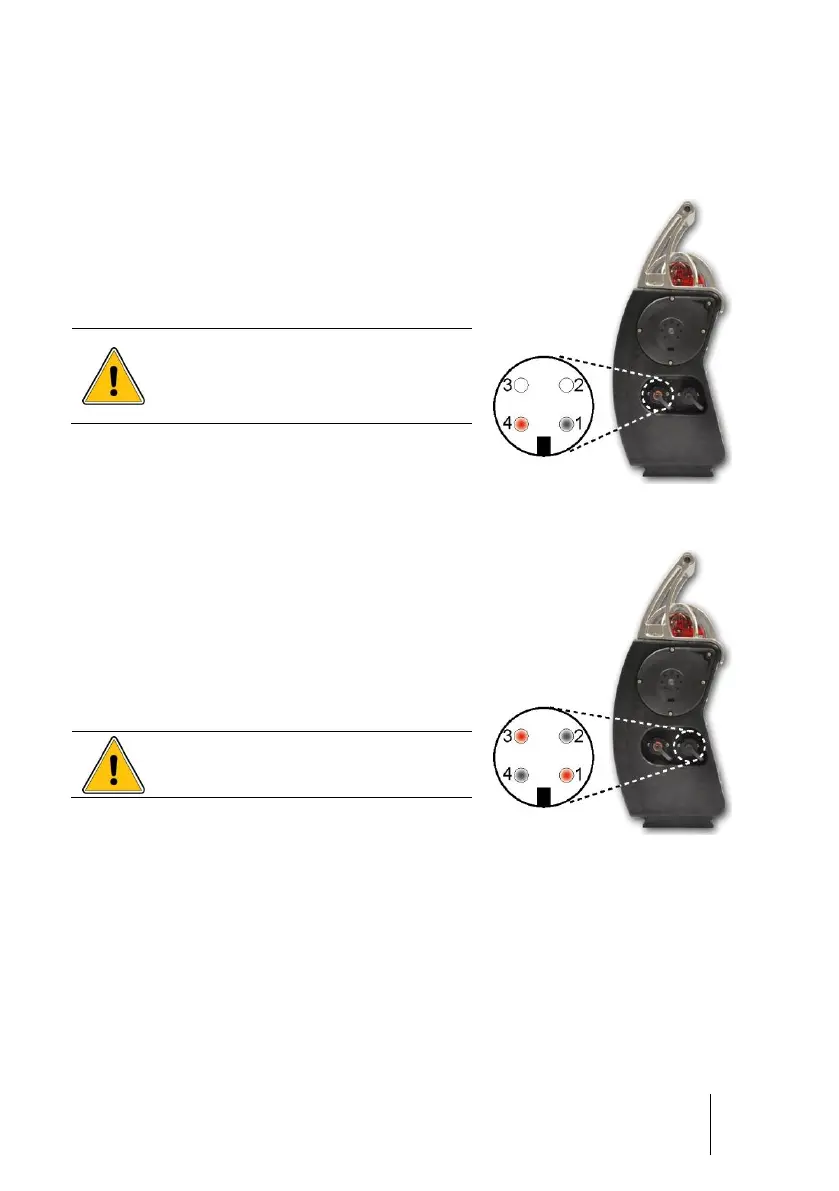

Connections
Charging port connection (red ring)
■ Connection to Oldham universal charger
(110/230 VAC) or charger for vehicle (12/30
VDC)
■ Pin 1: V- charge
■ Pin 4: V+ charge
Connection prohibited in hazardous
area.
Unused connectors must be
equipped with their protective cap.
See details on pages 19.
Figure 4: local charging port
Trickle charge port connection (black ring)
■ Only for connection to the intrinsically safe
certified trickle charger
■ Pin 1: V+ trickle charge
■ Pin 2: V- trickle charge
■ Pin 3: V+ trickle charge
■ Pin 4: V- trickle charge
Pins 1-3 and 2-4 are connected in parallel.
Unused connectors must be
equipped with their protective cap.
See details on page Erreur ! Signet non défini..
Figure 5: trickle charge port
