OLIMEX© 2012 LPC-P11C24 user's manual
CHAPTER 3: LPC-P11C24 BOARD DESCRIPTION
3. Introduction to the chapter
Here you get acquainted with the main parts of the board. Note the names used on the board might
differ from the names used below to describe them. For the actual names check the LPC-P11C24
board itself.

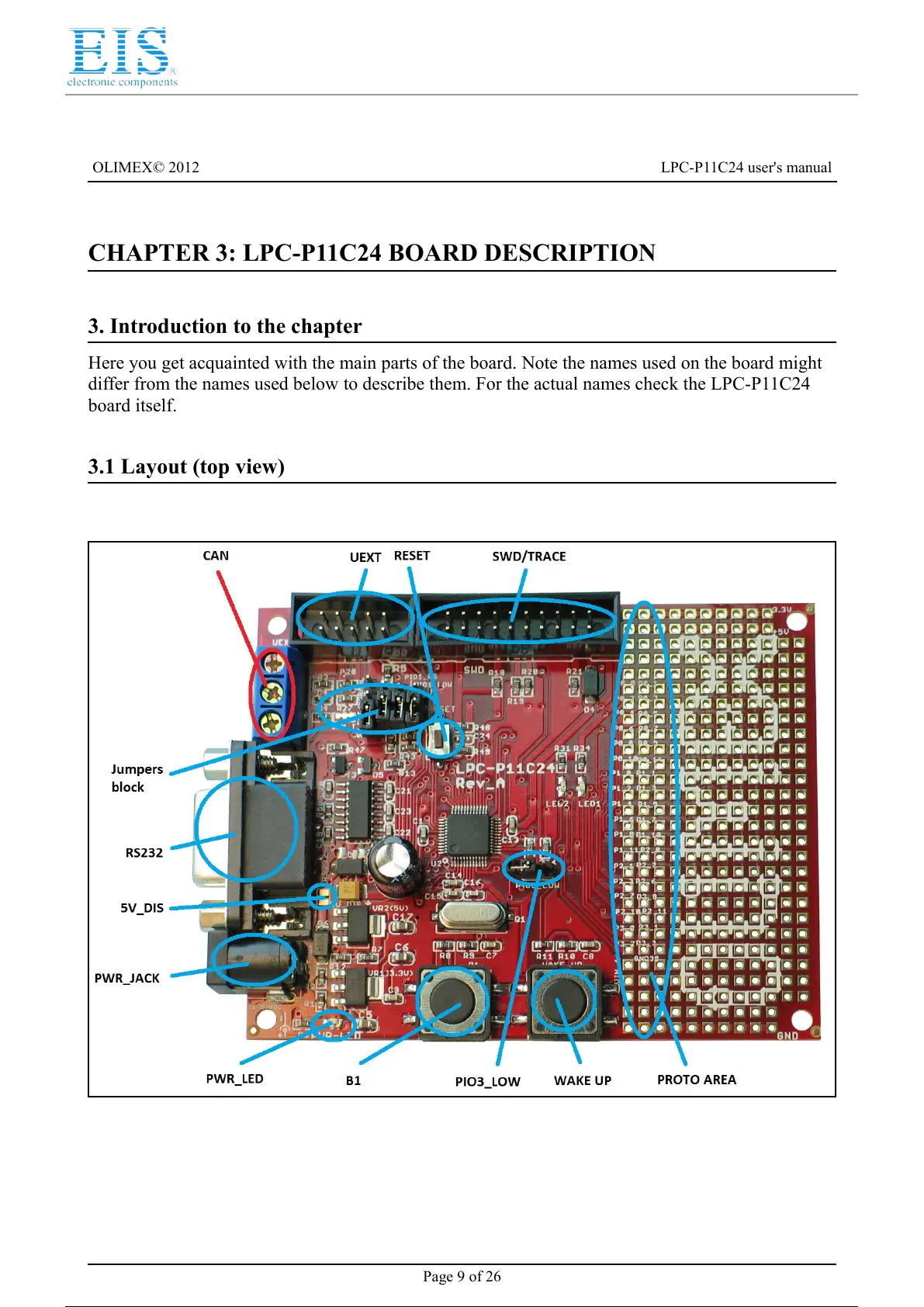

3.1 Layout (top view)
