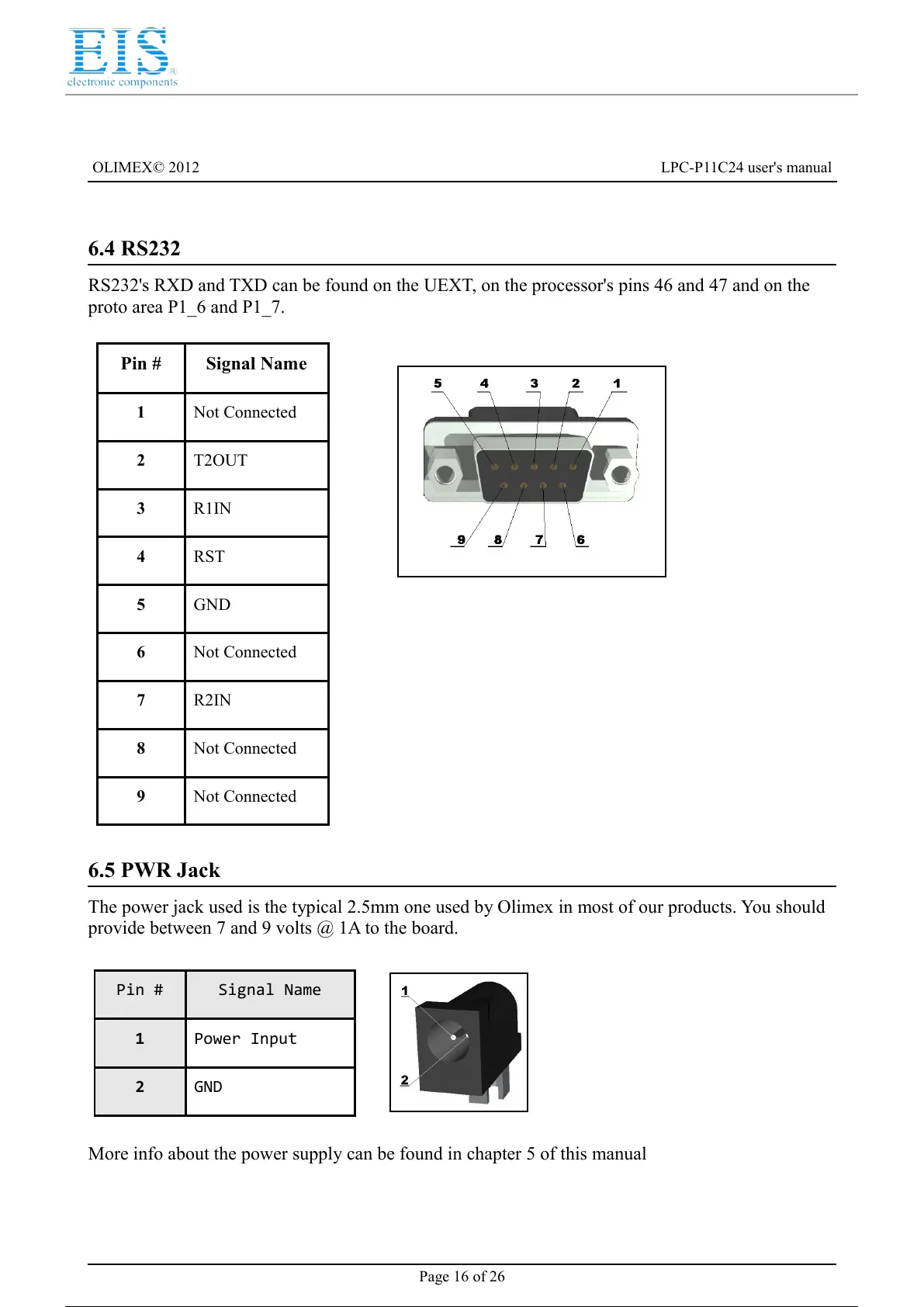

OLIMEX© 2012 LPC-P11C24 user's manual
6.4 RS232
RS232's RXD and TXD can be found on the UEXT, on the processor's pins 46 and 47 and on the
proto area P1_6 and P1_7.
Pin # Signal Name
1 Not Connected
2 T2OUT
3 R1IN
4 RST
5 GND
6 Not Connected
7 R2IN
8 Not Connected
9 Not Connected
6.5 PWR Jack
The power jack used is the typical 2.5mm one used by Olimex in most of our products. You should
provide between 7 and 9 volts @ 1A to the board.
Pin # Signal Name
1 Power Input
2 GND
More info about the power supply can be found in chapter 5 of this manual
Page 16 of 26
