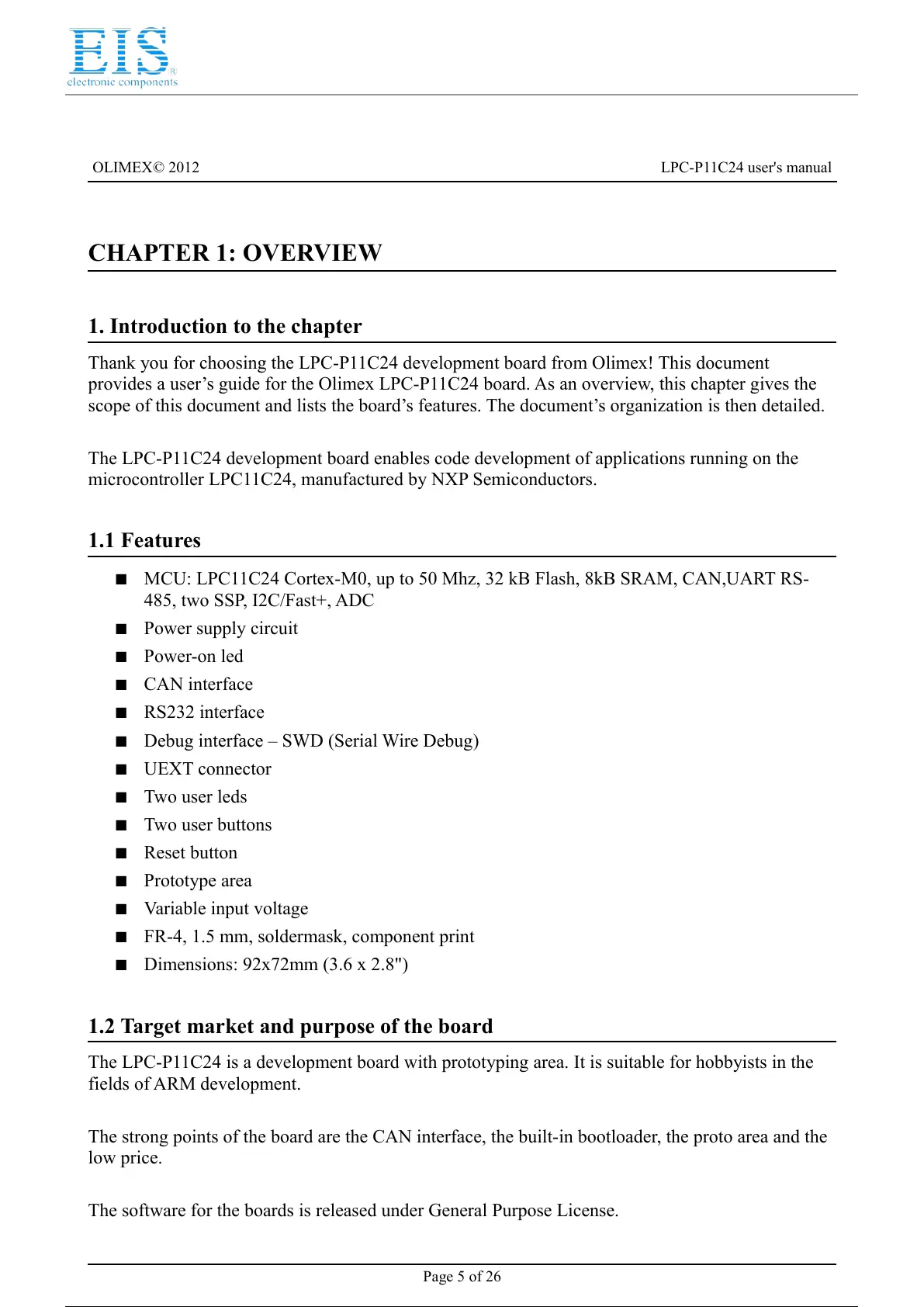

OLIMEX© 2012 LPC-P11C24 user's manual
CHAPTER 1: OVERVIEW
1. Introduction to the chapter
Thank you for choosing the LPC-P11C24 development board from Olimex! This document
provides a user’s guide for the Olimex LPC-P11C24 board. As an overview, this chapter gives the
scope of this document and lists the board’s features. The document’s organization is then detailed.
The LPC-P11C24 development board enables code development of applications running on the
microcontroller LPC11C24, manufactured by NXP Semiconductors.
1.1 Features
MCU: LPC11C24 Cortex-M0, up to 50 Mhz, 32 kB Flash, 8kB SRAM, CAN,UART RS-
485, two SSP, I2C/Fast+, ADC
Power supply circuit
Power-on led
CAN interface
RS232 interface
Debug interface – SWD (Serial Wire Debug)
UEXT connector
Two user leds
Two user buttons
Reset button
Prototype area
Variable input voltage
FR-4, 1.5 mm, soldermask, component print
Dimensions: 92x72mm (3.6 x 2.8")
1.2 Target market and purpose of the board
The LPC-P11C24 is a development board with prototyping area. It is suitable for hobbyists in the
fields of ARM development.
The strong points of the board are the CAN interface, the built-in bootloader, the proto area and the
low price.
The software for the boards is released under General Purpose License.
Page 5 of 26
