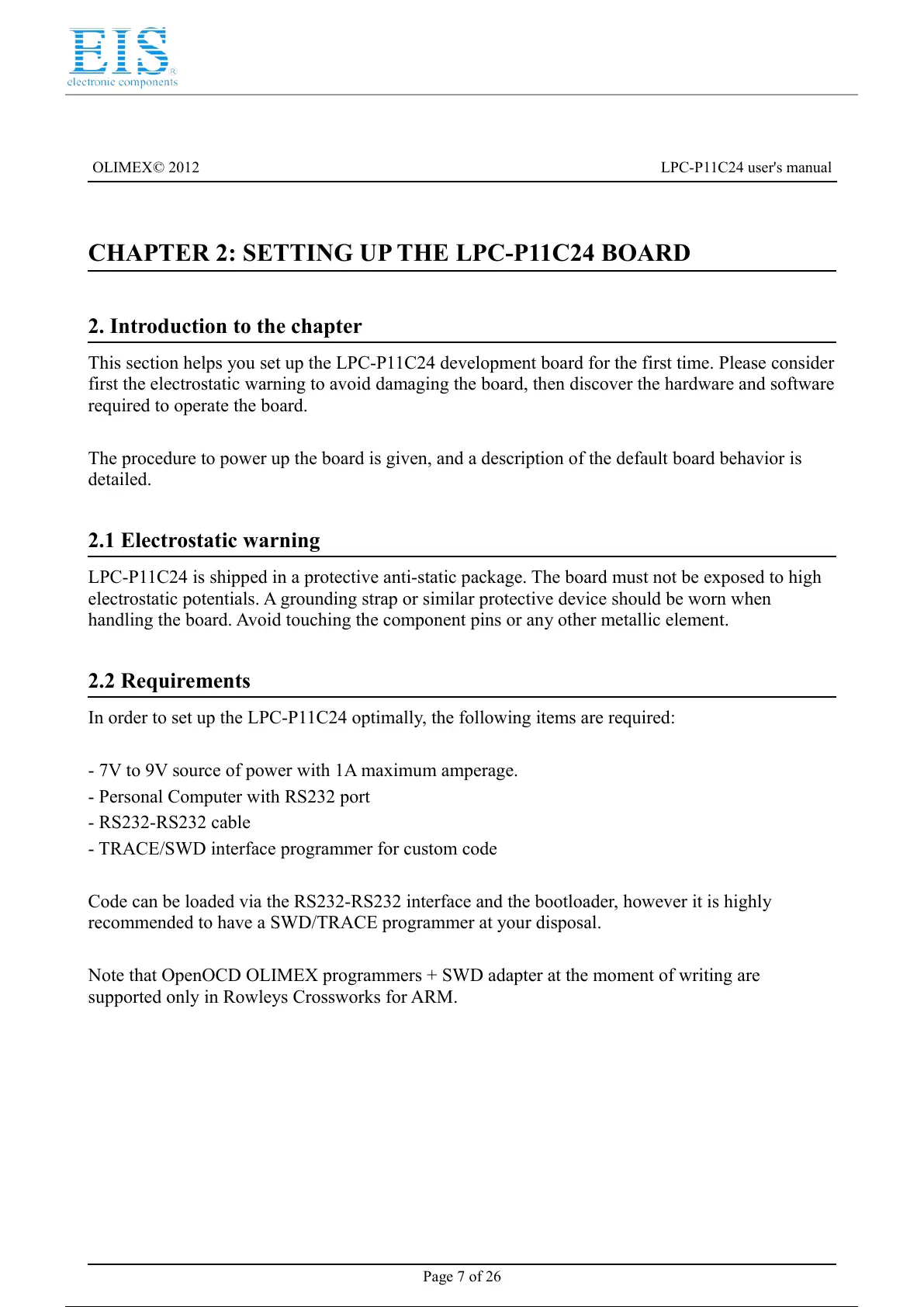

OLIMEX© 2012 LPC-P11C24 user's manual
CHAPTER 2: SETTING UP THE LPC-P11C24 BOARD
2. Introduction to the chapter
This section helps you set up the LPC-P11C24 development board for the first time. Please consider
first the electrostatic warning to avoid damaging the board, then discover the hardware and software
required to operate the board.
The procedure to power up the board is given, and a description of the default board behavior is
detailed.
2.1 Electrostatic warning
LPC-P11C24 is shipped in a protective anti-static package. The board must not be exposed to high
electrostatic potentials. A grounding strap or similar protective device should be worn when
handling the board. Avoid touching the component pins or any other metallic element.
2.2 Requirements
In order to set up the LPC-P11C24 optimally, the following items are required:
- 7V to 9V source of power with 1A maximum amperage.
- Personal Computer with RS232 port
- RS232-RS232 cable
- TRACE/SWD interface programmer for custom code
Code can be loaded via the RS232-RS232 interface and the bootloader, however it is highly
recommended to have a SWD/TRACE programmer at your disposal.
Note that OpenOCD OLIMEX programmers + SWD adapter at the moment of writing are
supported only in Rowleys Crossworks for ARM.
Page 7 of 26
