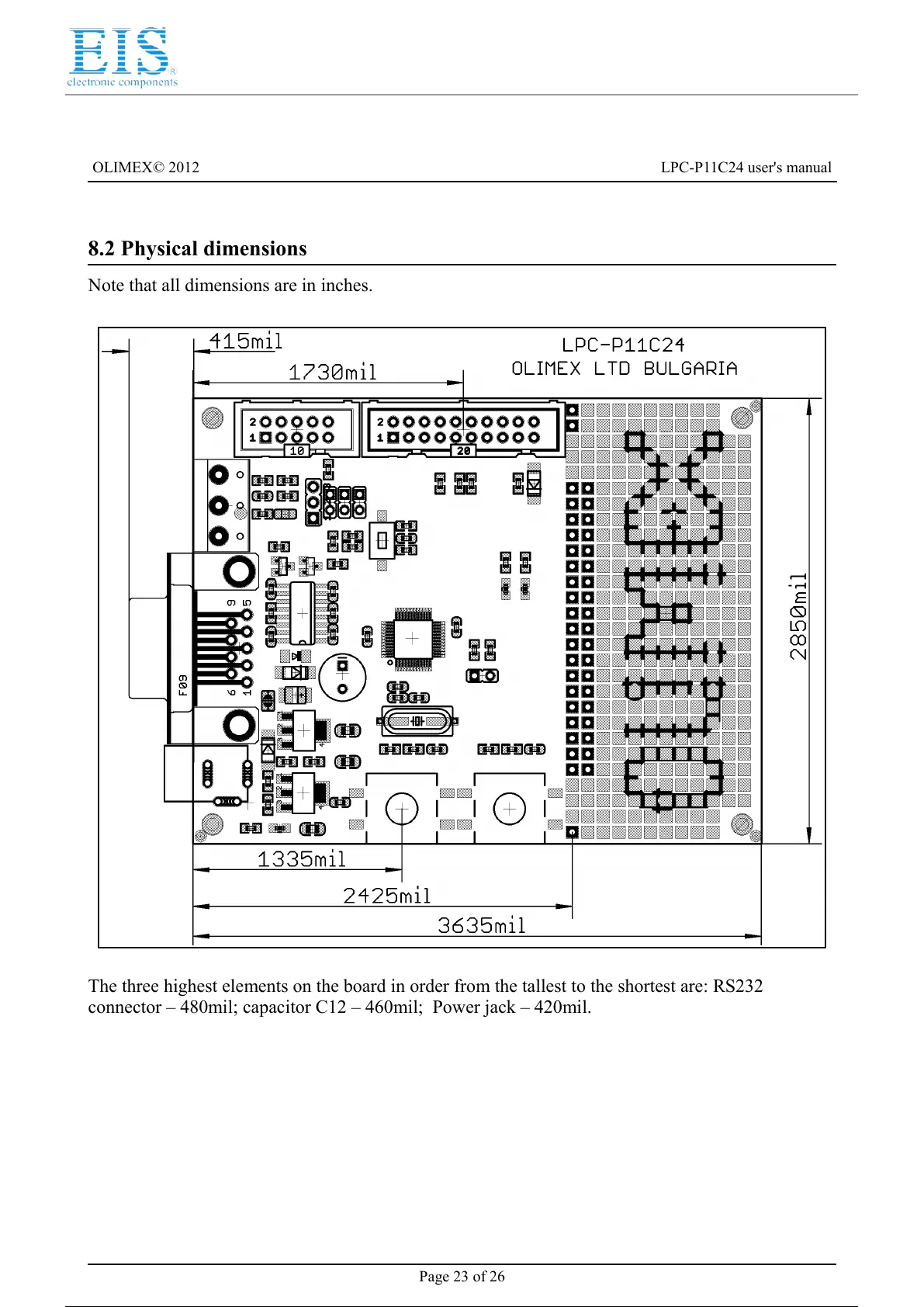

8.2 Physical dimensions
Note that all dimensions are in inches.
The three highest elements on the board in order from the tallest to the shortest are: RS232
connector – 480mil; capacitor C12 – 460mil; Power jack – 420mil.
