OLIMEX© 2012 LPC-P11C24 user's manual

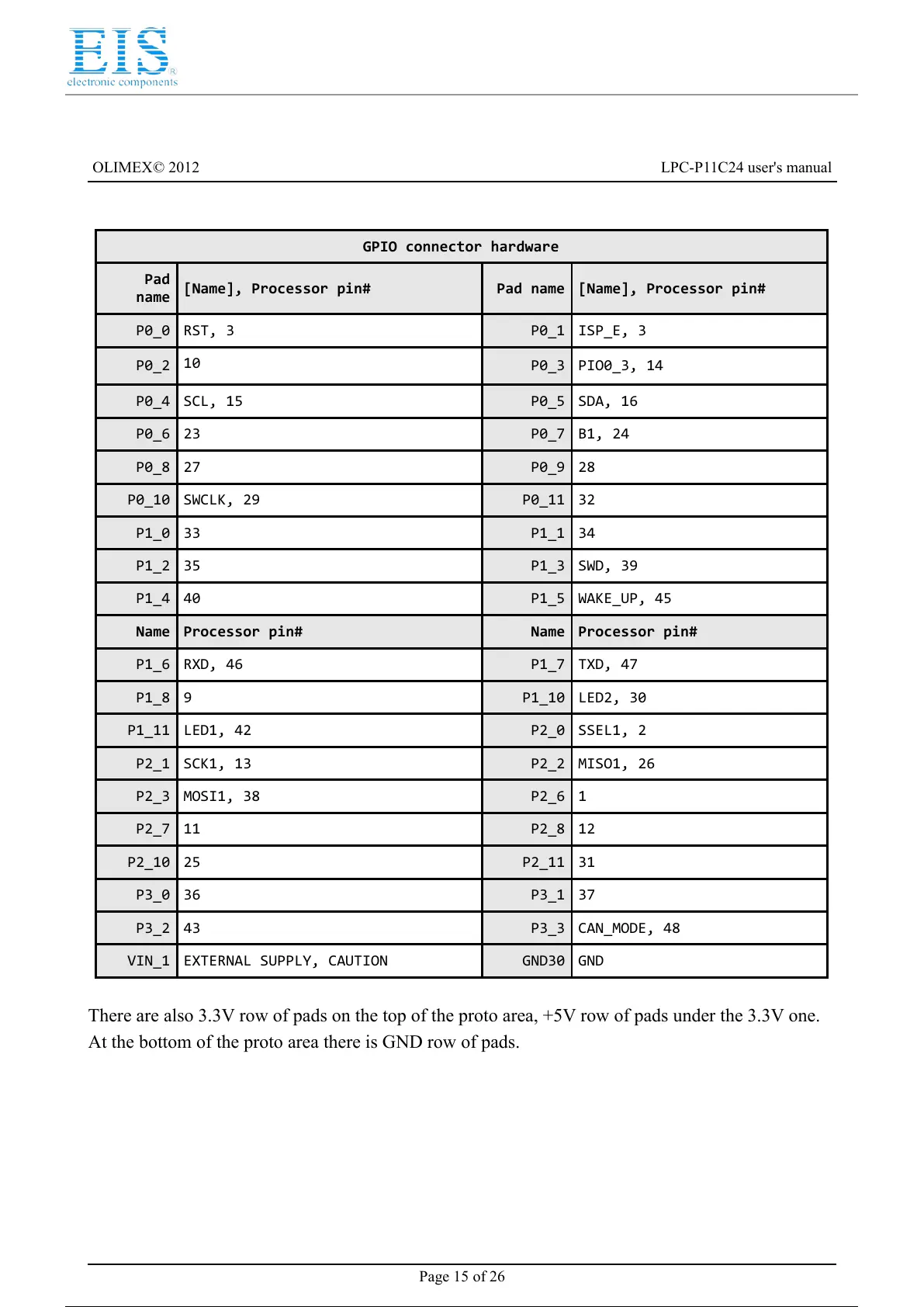

GPIO connector hardware
Pad
name
[Name], Processor pin# Pad name [Name], Processor pin#
P0_0 RST, 3 P0_1 ISP_E, 3
P0_2
10
P0_3 PIO0_3, 14
P0_4 SCL, 15 P0_5 SDA, 16
P0_6 23 P0_7 B1, 24
P0_8 27 P0_9 28
P0_10 SWCLK, 29 P0_11 32
P1_0 33 P1_1 34
P1_2 35 P1_3 SWD, 39
P1_4 40 P1_5 WAKE_UP, 45
Name Processor pin# Name Processor pin#
P1_6 RXD, 46 P1_7 TXD, 47
P1_8 9 P1_10 LED2, 30
P1_11 LED1, 42 P2_0 SSEL1, 2
P2_1 SCK1, 13 P2_2 MISO1, 26
P2_3 MOSI1, 38 P2_6 1
P2_7 11 P2_8 12
P2_10 25 P2_11 31
P3_0 36 P3_1 37
P3_2 43 P3_3 CAN_MODE, 48
VIN_1 EXTERNAL SUPPLY, CAUTION GND30 GND
There are also 3.3V row of pads on the top of the proto area, +5V row of pads under the 3.3V one.
At the bottom of the proto area there is GND row of pads.
Page 15 of 26
